| A Min_Cust. piece part grip dia |
: | 8.25 |
| A Max_Cust. piece part grip dia |
: | 17 |

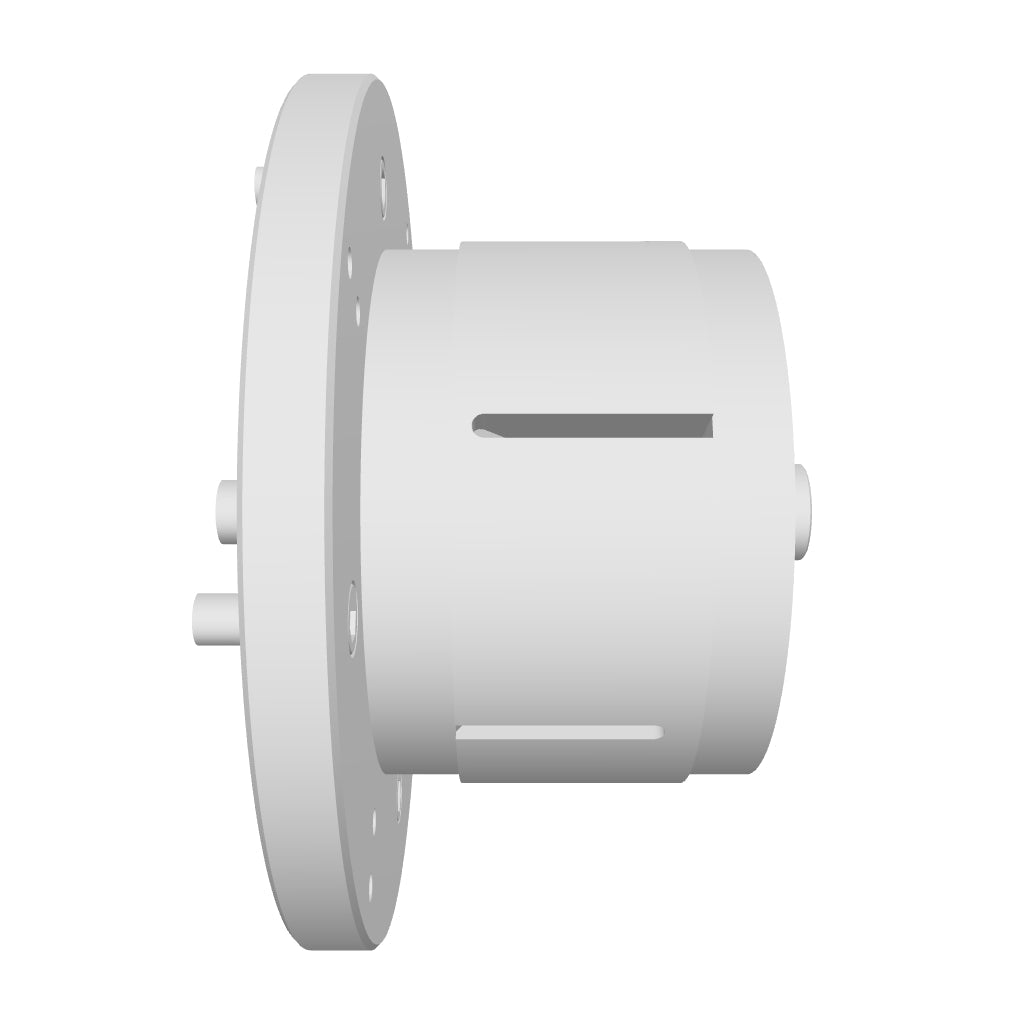

| Type of actuation | : | Draw bar operation |
| B | : | 3.25 |
| C | : | 8 |
| D | : | 1.123 |
| E | : | 1 |
| F _ Flange diameter | : | 12.875 |
| G | : | 2.25 |
| H | : | 1.628 |
| J | : | 1.000-8 |
| K | : | 4.875 |
| L | : | (4) .625-11 |
| M | : | 0.999 |
| N | : | 1 |
| P | : | 1.5 |
| Q | : | 4.373 |
| R | : | 9 |
| S | : | 8 |
| T | : | 1.277 |
| U | : | 4.875 |
| V | : | 5.75 |
| A Min_Cust. piece part grip dia |
: | 8.25 |
| A Max_Cust. piece part grip dia |
: | 17 |
| Type of actuation | : | Draw bar operation |
| B | : | 3.25 |
| C | : | 8 |
| D | : | 1.123 |
| E | : | 1 |
| F _ Flange diameter | : | 12.875 |
| G | : | 2.25 |
| H | : | 1.628 |
| J | : | 1.000-8 |
| K | : | 4.875 |
| L | : | (4) .625-11 |
| M | : | 0.999 |
| N | : | 1 |
| P | : | 1.5 |
| Q | : | 4.373 |
| R | : | 9 |
| S | : | 8 |
| T | : | 1.277 |
| U | : | 4.875 |
| V | : | 5.75 |
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $3,608.00
