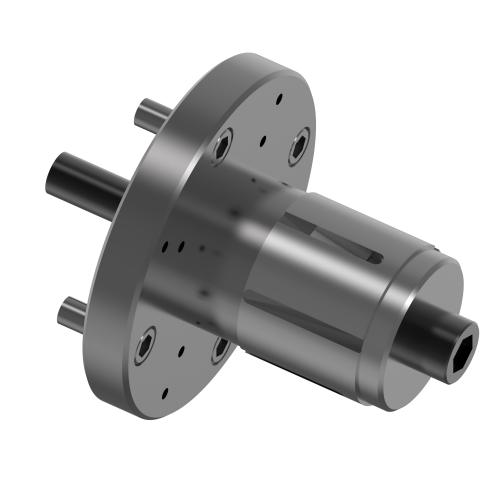

STN-4-DB6 view 1

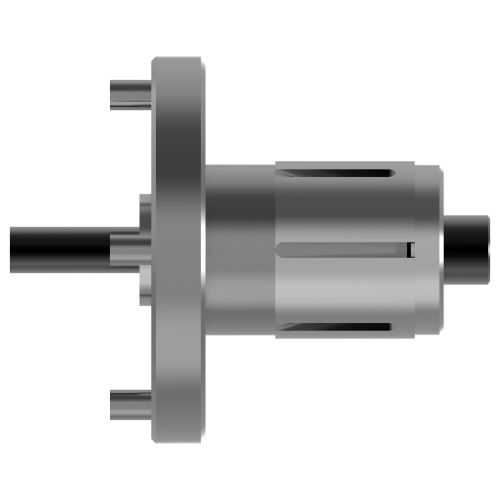

STN-4-DB6 view 2

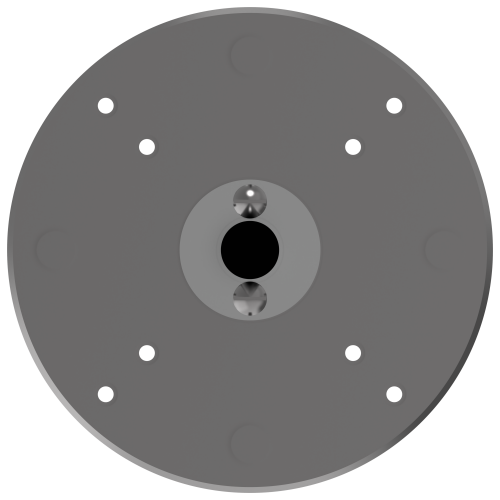

STN-4-DB6 view 3

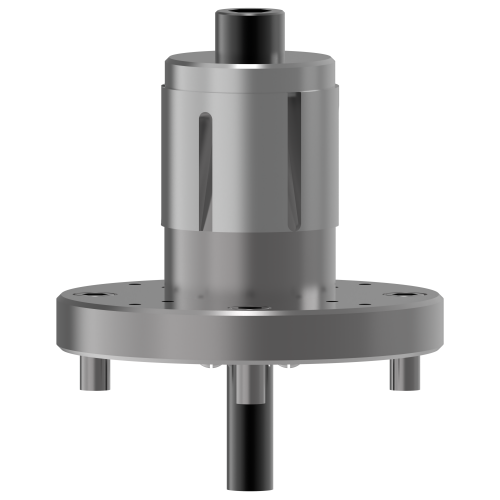

STN-4-DB6 view 4

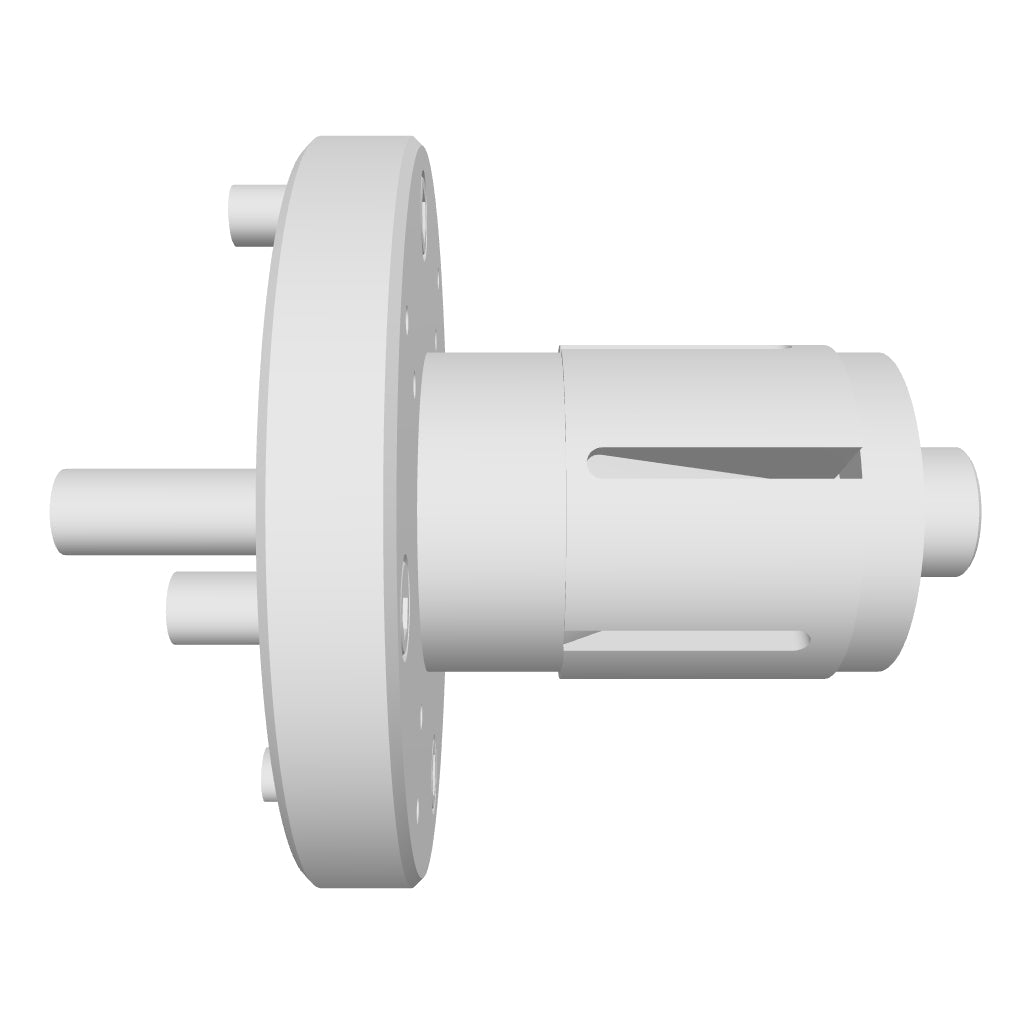

Standard Single Taper Chuck – Draw Bar Operation

A Min_Cust. piece part grip dia	:	2.875
A Max_Cust. piece part grip dia	:	7
Type of actuation	:	Draw bar operation
B	:	2.25
C	:	2.75
D	:	1.127
E	:	0.875
F _ Flange diameter	:	6.25

G	:	1.813
H	:	2.282
J	:	.750-16
K	:	2.5
L	:	(4) .500-13
M	:	0.466
N	:	0.75
P	:	1.125
Q	:	3.377
R	:	7.75
S	:	2.75
T	:	1.962
U	:	1.875
V	:	2.625

STN-4-DB6

Standard Single Taper Chuck – Draw Bar Operation

Regular price: $996.00

A Min_Cust. piece part grip dia	:	2.875
A Max_Cust. piece part grip dia	:	7
Type of actuation	:	Draw bar operation
B	:	2.25
C	:	2.75
D	:	1.127
E	:	0.875
F _ Flange diameter	:	6.25

G	:	1.813
H	:	2.282
J	:	.750-16
K	:	2.5
L	:	(4) .500-13
M	:	0.466
N	:	0.75
P	:	1.125
Q	:	3.377
R	:	7.75
S	:	2.75
T	:	1.962
U	:	1.875
V	:	2.625

Documentation

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

Parasolid (.x_t)

Regular price: $996.00
