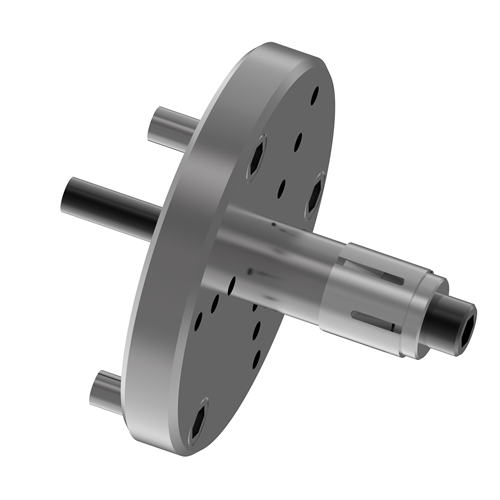

STN-2-DB4 view 1

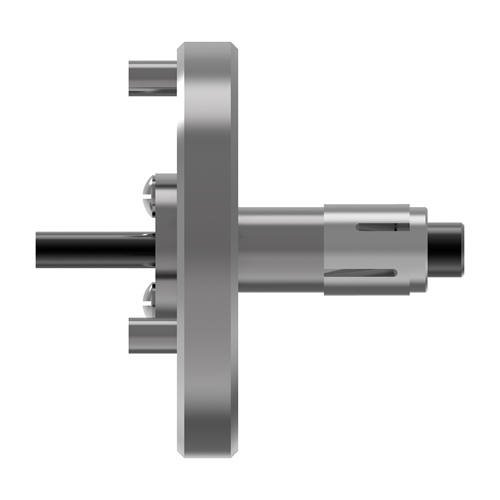

STN-2-DB4 view 2

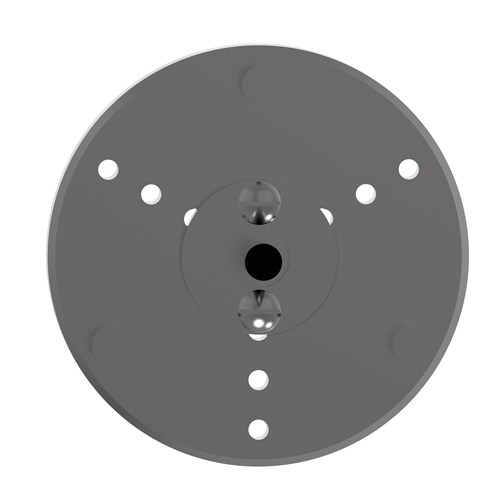

STN-2-DB4 view 3

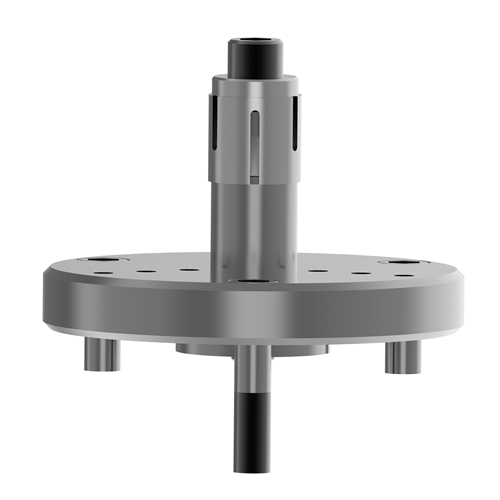

STN-2-DB4 view 4

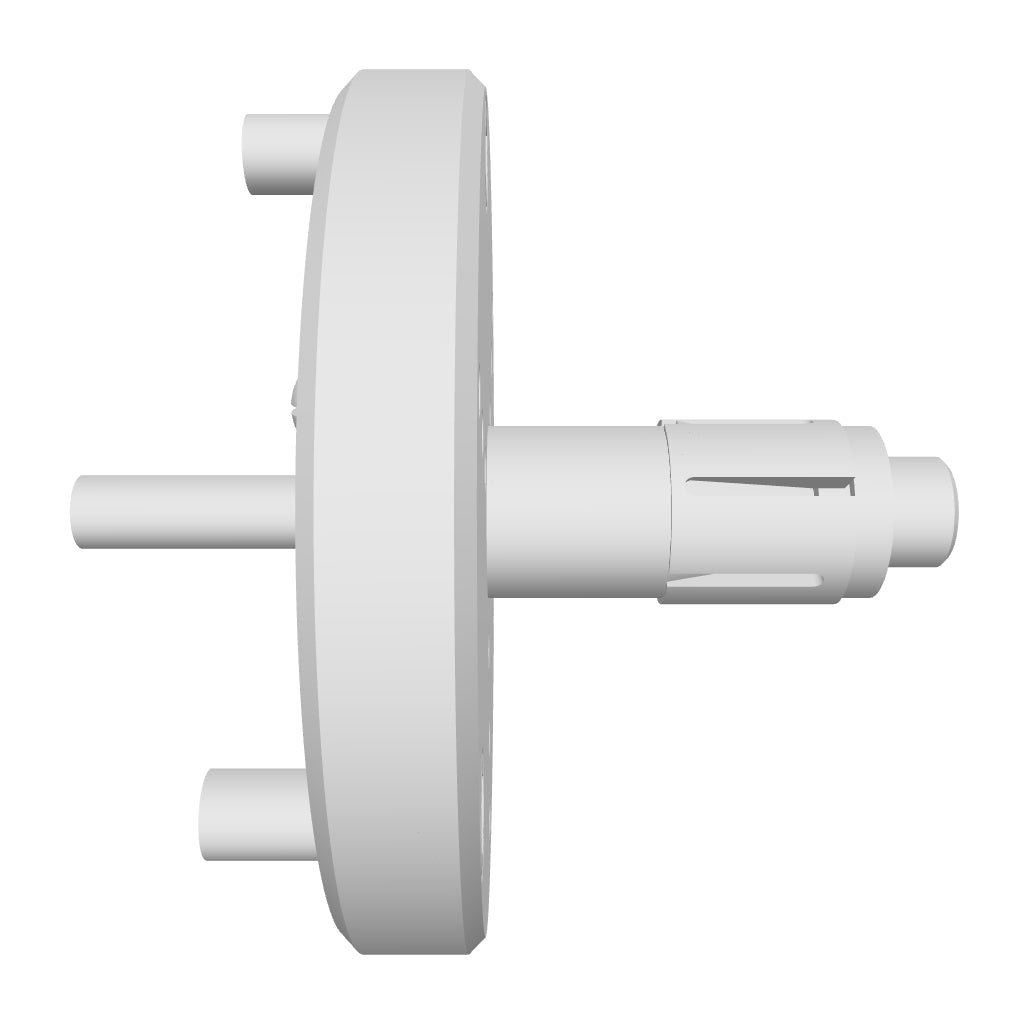

Standard Single Taper Chuck – Draw Bar Operation

A Min_Cust. piece part grip dia	:	0.938
A Max_Cust. piece part grip dia	:	2
Type of actuation	:	Draw bar operation
B	:	0.875
C	:	0.875
D	:	0.875
E	:	0.625
F _ Flange diameter	:	4.25

G	:	1.563
H	:	1.442
J	:	.375-16
K	:	1.75
L	:	(3) .375-16
M	:	0.183
N	:	0.375
P	:	0.563
Q	:	1.75
R	:	4.375
S	:	0.875
T	:	1.091
U	:	0.75
V	:	1.25

STN-2-DB4

Standard Single Taper Chuck – Draw Bar Operation

Regular price: $710.00

A Min_Cust. piece part grip dia	:	0.938
A Max_Cust. piece part grip dia	:	2
Type of actuation	:	Draw bar operation
B	:	0.875
C	:	0.875
D	:	0.875
E	:	0.625
F _ Flange diameter	:	4.25

G	:	1.563
H	:	1.442
J	:	.375-16
K	:	1.75
L	:	(3) .375-16
M	:	0.183
N	:	0.375
P	:	0.563
Q	:	1.75
R	:	4.375
S	:	0.875
T	:	1.091
U	:	0.75
V	:	1.25

Documentation

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

Parasolid (.x_t)

Regular price: $710.00
