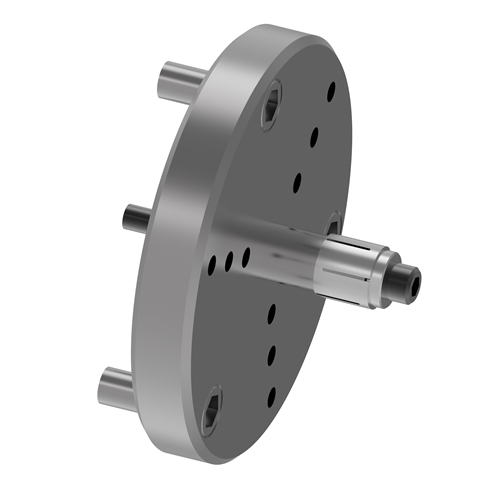

STN-0.5-DB4 view 1

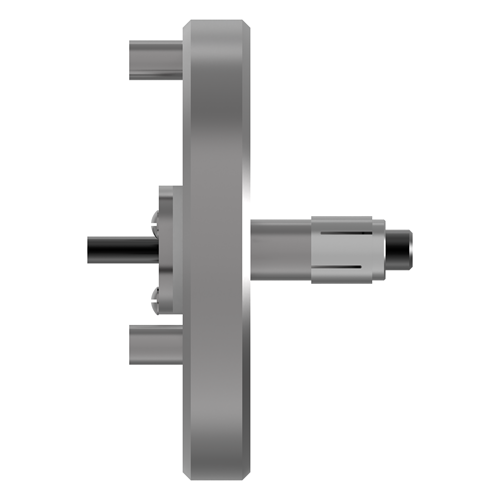

STN-0.5-DB4 view 2

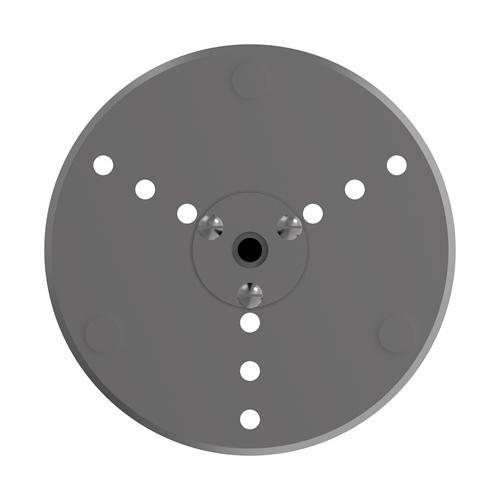

STN-0.5-DB4 view 3

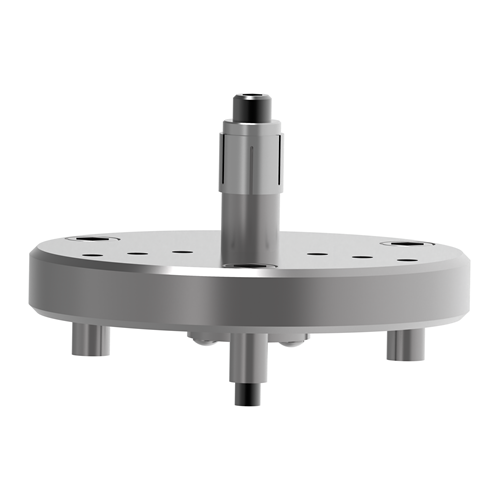

STN-0.5-DB4 view 4

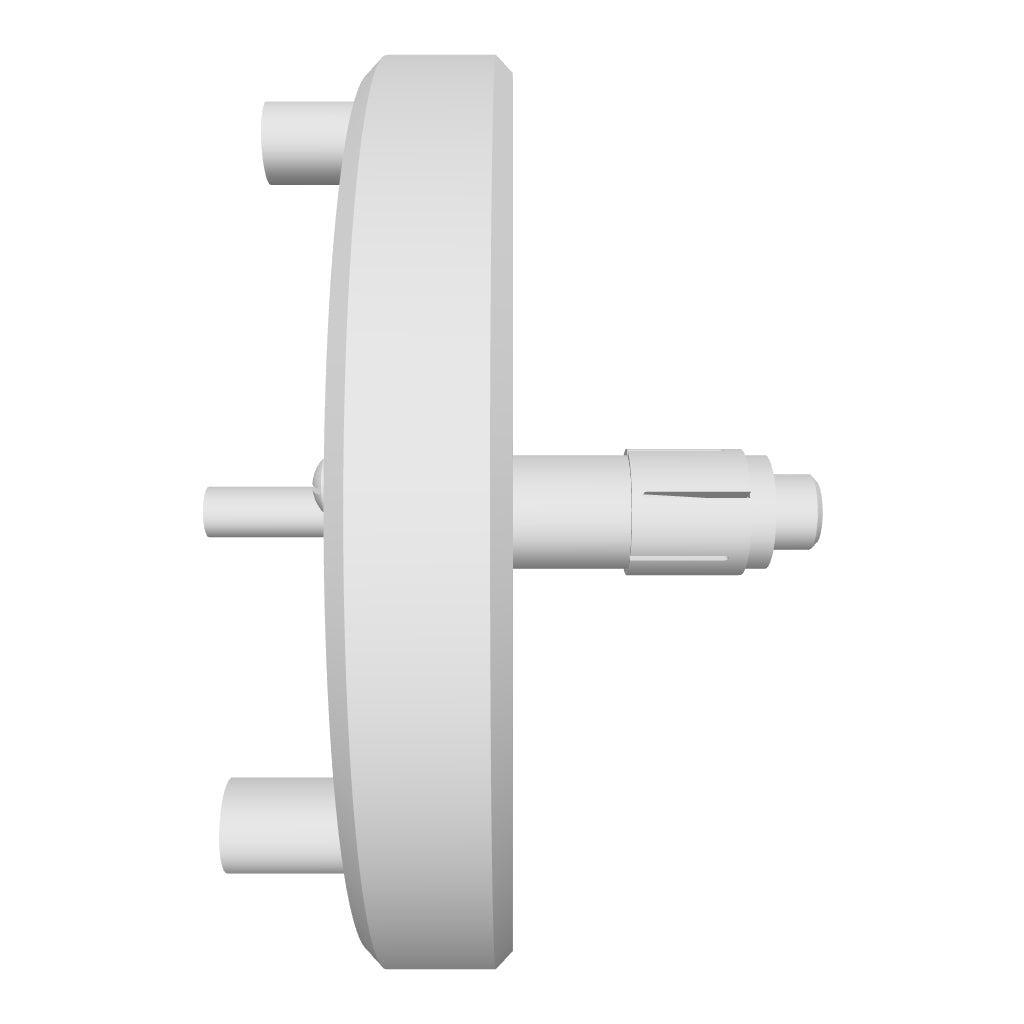

Standard Single Taper Chuck – Draw Bar Operation

A Min_Cust. piece part grip dia	:	0.625
A Max_Cust. piece part grip dia	:	1.25
Type of actuation	:	Draw bar operation
B	:	0.563
C	:	0.5625
D	:	0.561
E	:	0.625
F _ Flange diameter	:	4.25

G	:	1.188
H	:	0.879
J	:	.250-20
K	:	1.75
L	:	(3) .375-16
M	:	0.123
N	:	0.25
P	:	0.375
Q	:	1.124
R	:	3
S	:	0.563
T	:	0.587
U	:	0.75
V	:	1.25

STN-0-5-DB4

Standard Single Taper Chuck – Draw Bar Operation

Regular price: $694.00

A Min_Cust. piece part grip dia	:	0.625
A Max_Cust. piece part grip dia	:	1.25
Type of actuation	:	Draw bar operation
B	:	0.563
C	:	0.5625
D	:	0.561
E	:	0.625
F _ Flange diameter	:	4.25

G	:	1.188
H	:	0.879
J	:	.250-20
K	:	1.75
L	:	(3) .375-16
M	:	0.123
N	:	0.25
P	:	0.375
Q	:	1.124
R	:	3
S	:	0.563
T	:	0.587
U	:	0.75
V	:	1.25

Documentation

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

Parasolid (.x_t)

Regular price: $694.00
