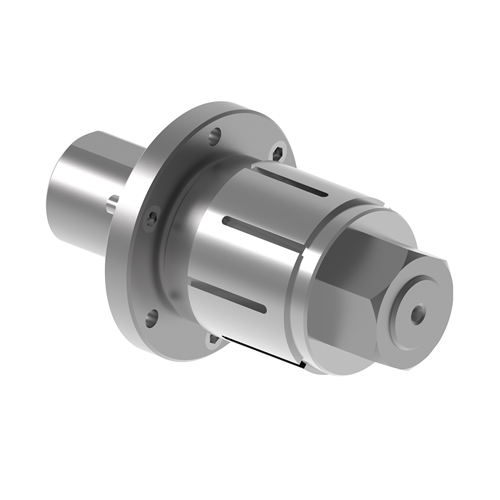

• STM-5 STM-5_1.png
A Min_Cust. piece part grip dia :  4.75
A Max_Cust. piece part grip dia :  11
Type of actuation :  Manual operation
B :  3.25
C :  4.5
D :  1.127
E :  0.875
F _ Flange diameter :  6.75
Show more dimensions
G :  4.5
H :  0.625
J :  2.000-12
K :  3
L :  2.844
M :  (3) .500-13
N :  (3).500-13
P :  3.464
Q :  3
R :  11.375
S :  3
T :  1.044
U :  0.625
V :  1.75

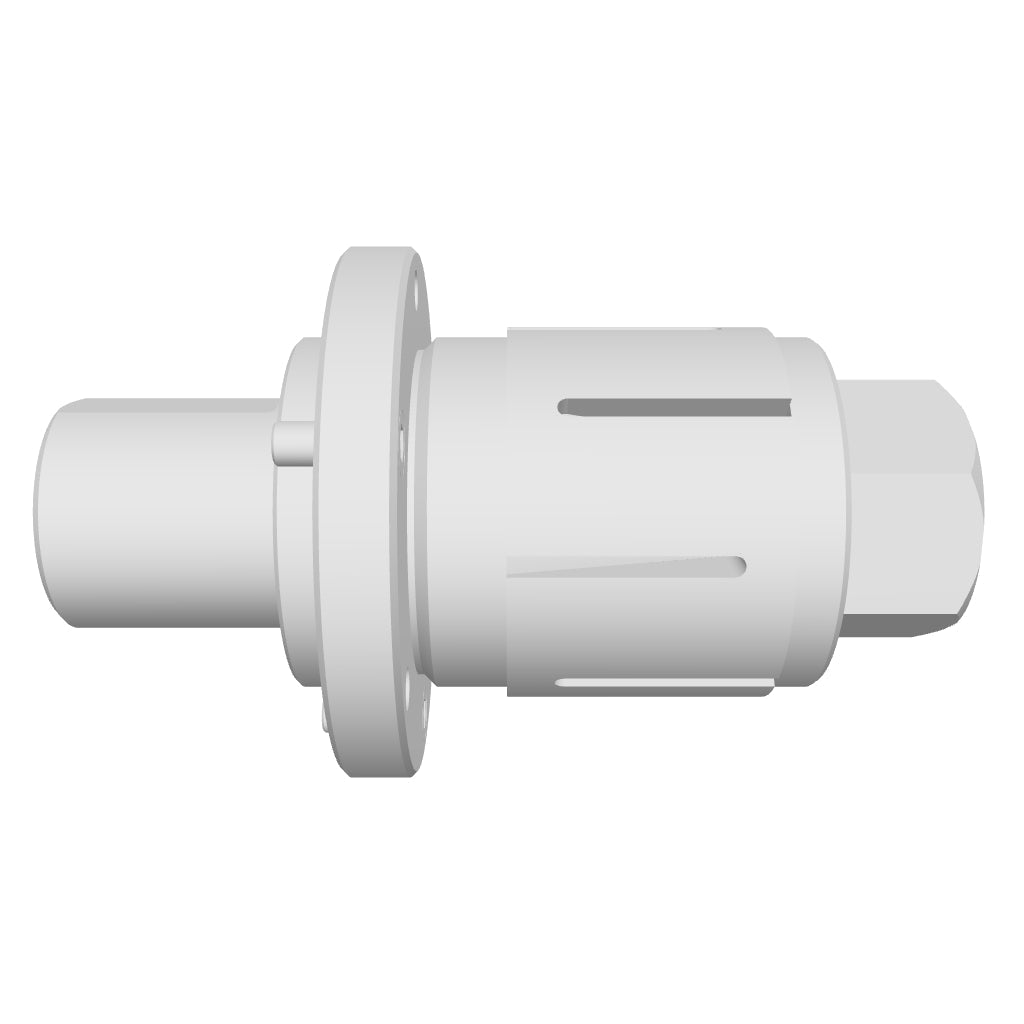

Single Taper Arbors

STM-5

$2,071.00
A Min_Cust. piece part grip dia :  4.75
A Max_Cust. piece part grip dia :  11
Type of actuation :  Manual operation
B :  3.25
C :  4.5
D :  1.127
E :  0.875
F _ Flange diameter :  6.75
Show more dimensions
G :  4.5
H :  0.625
J :  2.000-12
K :  3
L :  2.844
M :  (3) .500-13
N :  (3).500-13
P :  3.464
Q :  3
R :  11.375
S :  3
T :  1.044
U :  0.625
V :  1.75

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$2,071.00
