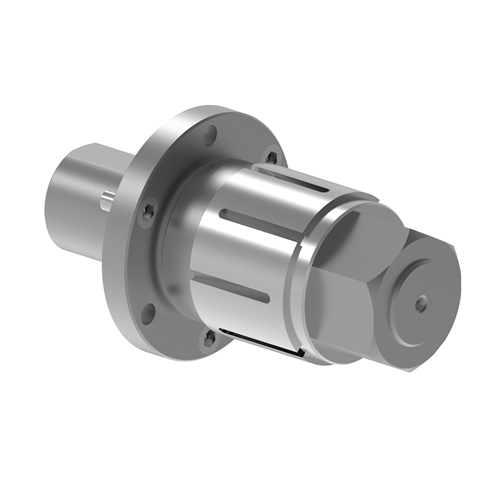

• STM-4.5 STM-4_5_1.png
A Min_Cust. piece part grip dia :  4
A Max_Cust. piece part grip dia :  10
Type of actuation :  Manual operation
B :  2.75
C :  3.75
D :  1.129
E :  0.75
F _ Flange diameter :  5.75
Show more dimensions
G :  3.75
H :  0.625
J :  2.000-12
K :  2.5
L :  2.438
M :  (3) .500-13
N :  (3).437-14
P :  3.464
Q :  3
R :  10.125
S :  2.5
T :  0.95
U :  0.5
V :  1.75

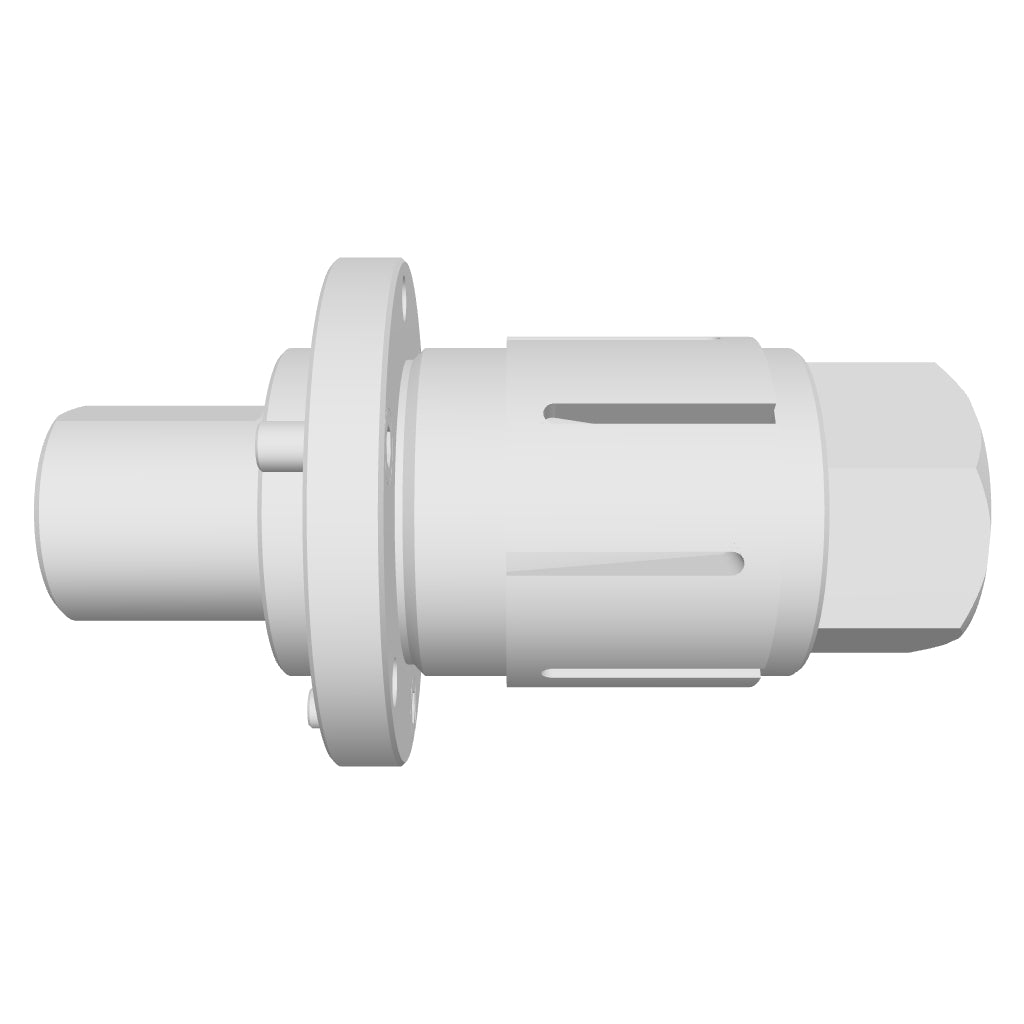

Single Taper Arbors

STM-4.5

$1,657.00
A Min_Cust. piece part grip dia :  4
A Max_Cust. piece part grip dia :  10
Type of actuation :  Manual operation
B :  2.75
C :  3.75
D :  1.129
E :  0.75
F _ Flange diameter :  5.75
Show more dimensions
G :  3.75
H :  0.625
J :  2.000-12
K :  2.5
L :  2.438
M :  (3) .500-13
N :  (3).437-14
P :  3.464
Q :  3
R :  10.125
S :  2.5
T :  0.95
U :  0.5
V :  1.75

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$1,657.00
