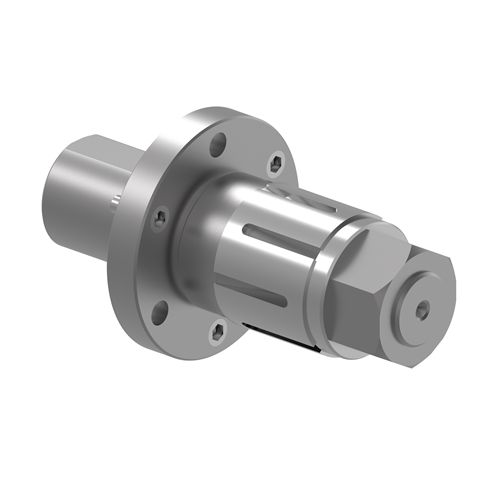

• STM-4 STM-4_1.png
A Min_Cust. piece part grip dia :  2.875
A Max_Cust. piece part grip dia :  7
Type of actuation :  Manual operation
B :  2.25
C :  2.75
D :  1.127
E :  0.75
F _ Flange diameter :  4.875
Show more dimensions
G :  2.75
H :  0.563
J :  1.500-12
K :  2.25
L :  1.969
M :  (3) .500-13
N :  (3).375-16
P :  2.598
Q :  2.25
R :  8.75
S :  2.25
T :  0.899
U :  0.438
V :  1.25
Single Taper Arbors

STM-4

$1,156.00
A Min_Cust. piece part grip dia :  2.875
A Max_Cust. piece part grip dia :  7
Type of actuation :  Manual operation
B :  2.25
C :  2.75
D :  1.127
E :  0.75
F _ Flange diameter :  4.875
Show more dimensions
G :  2.75
H :  0.563
J :  1.500-12
K :  2.25
L :  1.969
M :  (3) .500-13
N :  (3).375-16
P :  2.598
Q :  2.25
R :  8.75
S :  2.25
T :  0.899
U :  0.438
V :  1.25

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$1,156.00
STM-4 STM-4_1.png
Single Taper Arbors

STM-4

$1,156.00
STM-4 STM-4_1.png
