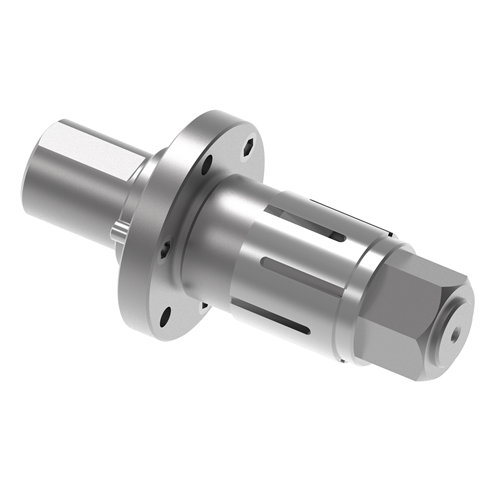

• STM-3.5 STM-3_5_1.png
A Min_Cust. piece part grip dia :  2.375
A Max_Cust. piece part grip dia :  5.5
Type of actuation :  Manual operation
B :  2
C :  2.25
D :  1.126
E :  0.625
F _ Flange diameter :  4
Show more dimensions
G :  2.25
H :  0.563
J :  1.250-16
K :  2
L :  1.625
M :  (3) .375-16
N :  (3).375-16
P :  2.021
Q :  1.75
R :  8.063
S :  1.75
T :  0.65
U :  0.375
V :  1.25

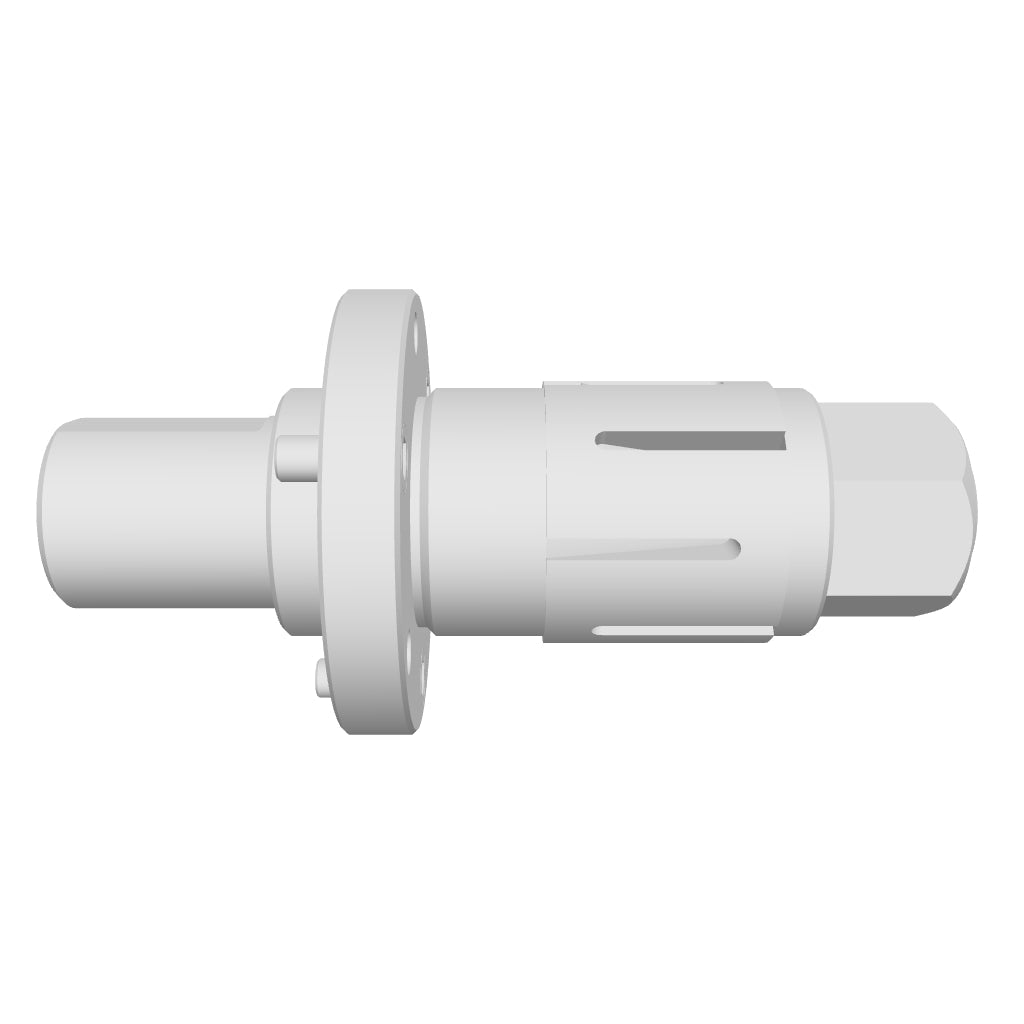

Single Taper Arbors

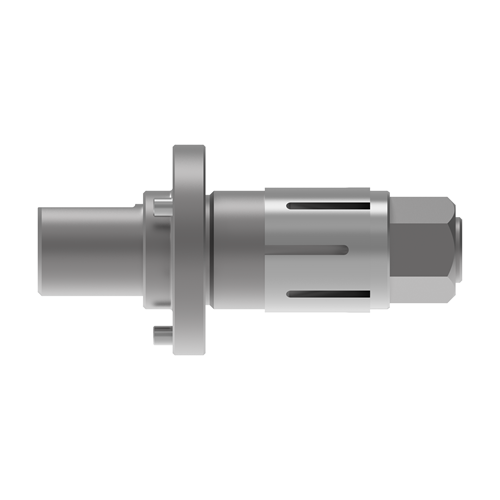

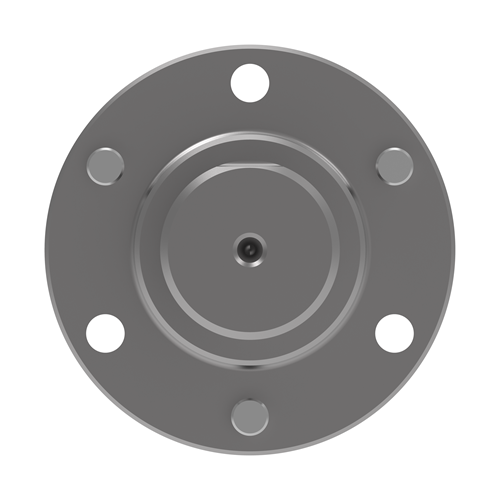

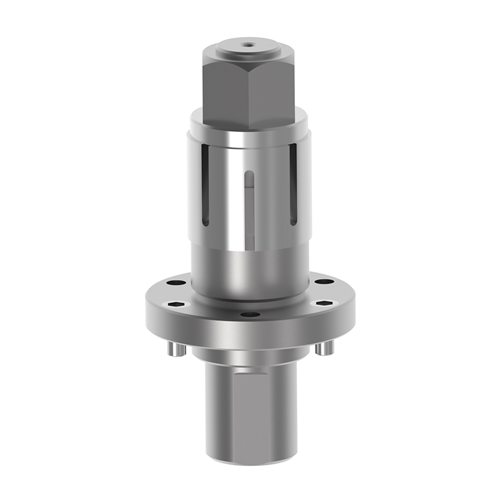

STM-3.5

$946.00
A Min_Cust. piece part grip dia :  2.375
A Max_Cust. piece part grip dia :  5.5
Type of actuation :  Manual operation
B :  2
C :  2.25
D :  1.126
E :  0.625
F _ Flange diameter :  4
Show more dimensions
G :  2.25
H :  0.563
J :  1.250-16
K :  2
L :  1.625
M :  (3) .375-16
N :  (3).375-16
P :  2.021
Q :  1.75
R :  8.063
S :  1.75
T :  0.65
U :  0.375
V :  1.25

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$946.00
