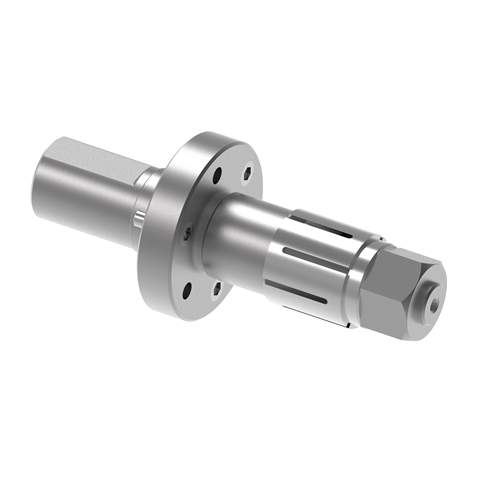

• STM-2.5 STM-2_5_1.png
A Min_Cust. piece part grip dia :  1.375
A Max_Cust. piece part grip dia :  3
Type of actuation :  Manual operation
B :  1.25
C :  1.25
D :  1.127
E :  0.563
F _ Flange diameter :  2.625
Show more dimensions
G :  1..250
H :  0.5
J :  .625-18
K :  1.625
L :  0.969
M :  (3) .250-20
N :  (3).250-20
P :  1.299
Q :  1.125
R :  6.188
S :  1.188
T :  0.53
U :  0.25
V :  0.75
Single Taper Arbors

STM-2.5

$626.00
A Min_Cust. piece part grip dia :  1.375
A Max_Cust. piece part grip dia :  3
Type of actuation :  Manual operation
B :  1.25
C :  1.25
D :  1.127
E :  0.563
F _ Flange diameter :  2.625
Show more dimensions
G :  1..250
H :  0.5
J :  .625-18
K :  1.625
L :  0.969
M :  (3) .250-20
N :  (3).250-20
P :  1.299
Q :  1.125
R :  6.188
S :  1.188
T :  0.53
U :  0.25
V :  0.75
