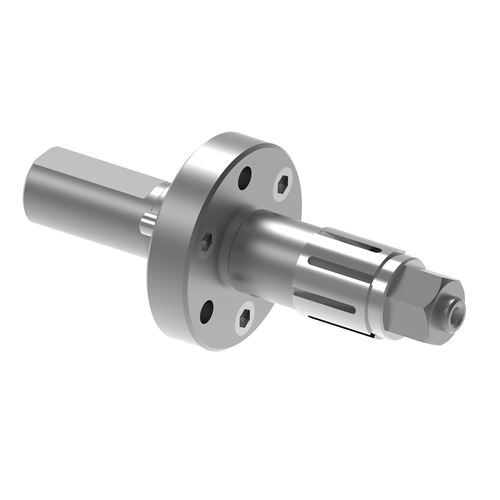

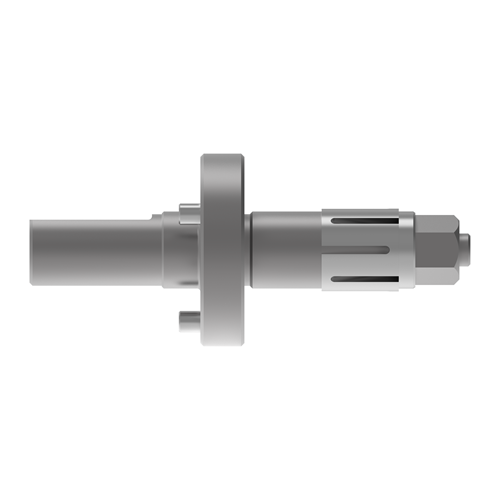

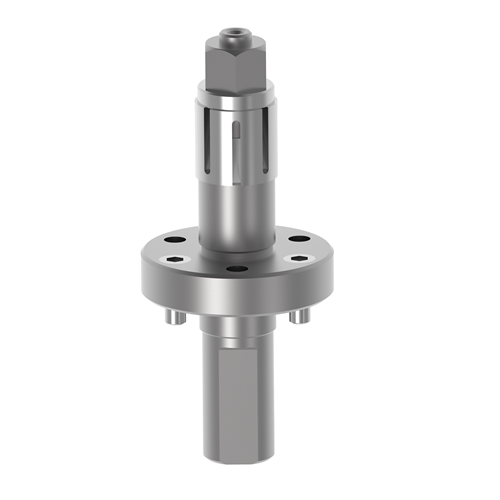

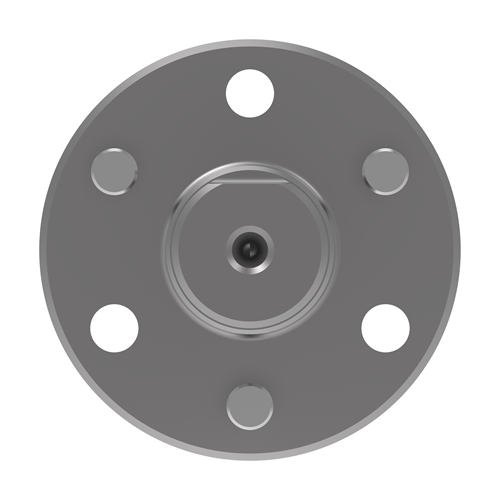

• STM-2 STM-2_1.png
A Min_Cust. piece part grip dia :  0.938
A Max_Cust. piece part grip dia :  2
Type of actuation :  Manual operation
B :  0.875
C :  0.875
D :  0.875
E :  0.5
F _ Flange diameter :  2.188
Show more dimensions
G :  0.875
H :  0.438
J :  .375-24
K :  1.5
L :  0.813
M :  (3) .250-20
N :  (3).250-20
P :  0.794
Q :  0.688
R :  5
S :  0.813
T :  0.433
U :  0.188
V :  0.5

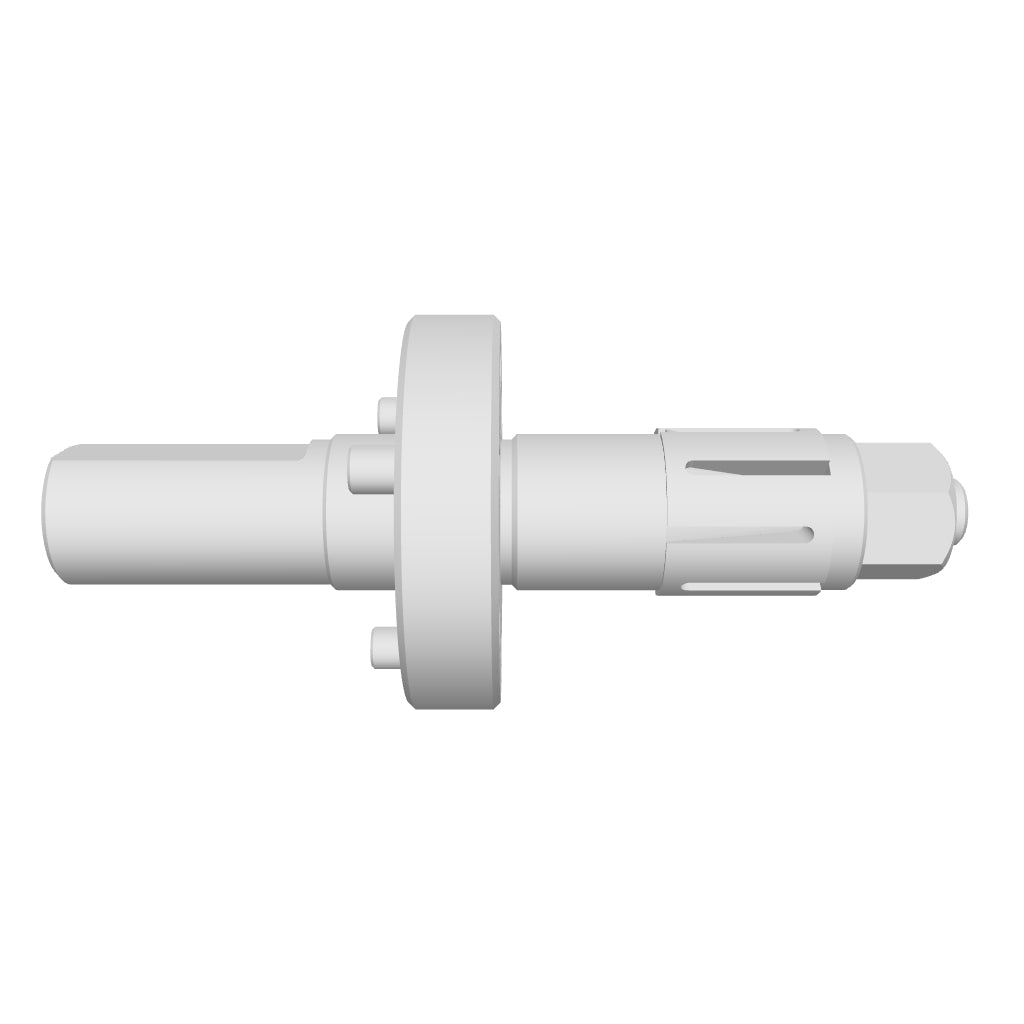

Single Taper Arbors

STM-2

$609.00
A Min_Cust. piece part grip dia :  0.938
A Max_Cust. piece part grip dia :  2
Type of actuation :  Manual operation
B :  0.875
C :  0.875
D :  0.875
E :  0.5
F _ Flange diameter :  2.188
Show more dimensions
G :  0.875
H :  0.438
J :  .375-24
K :  1.5
L :  0.813
M :  (3) .250-20
N :  (3).250-20
P :  0.794
Q :  0.688
R :  5
S :  0.813
T :  0.433
U :  0.188
V :  0.5

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$609.00
STM-2 STM-2_1.png
Single Taper Arbors

STM-2

$609.00
