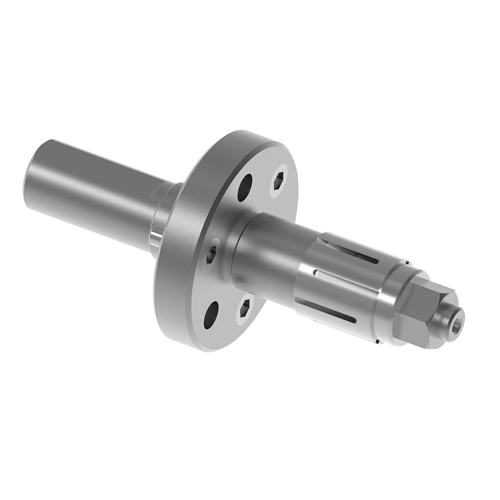

STM-1 STM-1_1.png

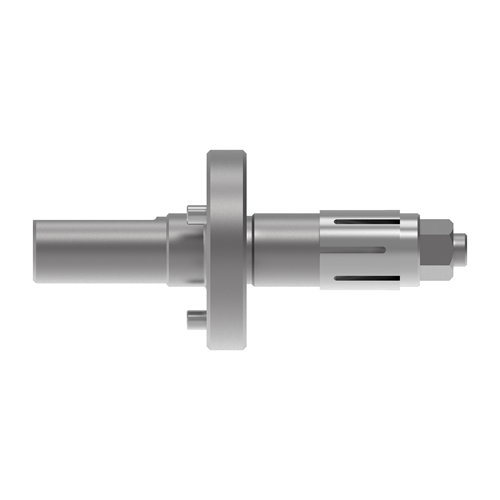

STM-1 STM-1_2.png

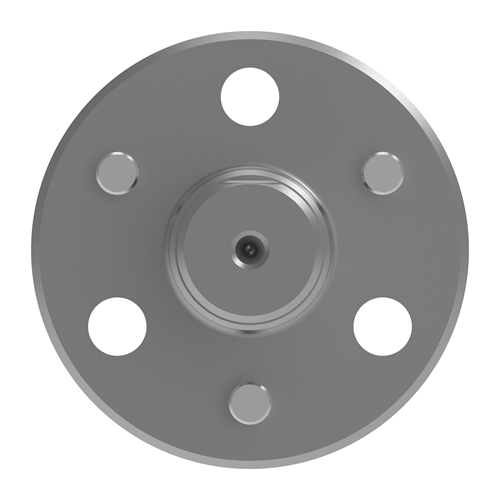

STM-1 STM-1_3.png

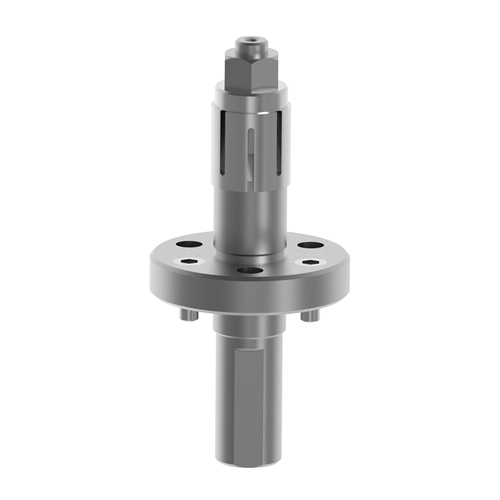

STM-1 STM-1_4.png

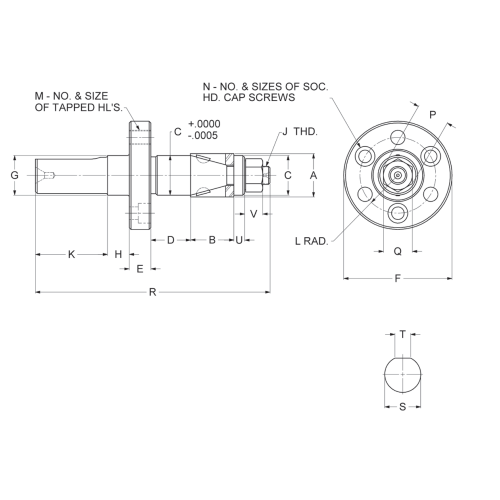

STM-1 view 5
A Min_Cust. piece part grip dia :  0.75
A Max_Cust. piece part grip dia :  1.5
Type of actuation :  Manual operation
B :  0.75
C :  0.6875
D :  0.684
E :  0.375
F _ Flange diameter :  1.875
Show more dimensions
G :  0.688
H :  0.375
J :  .313-24
K :  1.25
L :  0.656
M :  (3) .250-20
N :  (3) #10-24
P :  0.577
Q :  0.5
R :  4.063
S :  0.625
T :  0.272
U :  0.188
V :  0.313

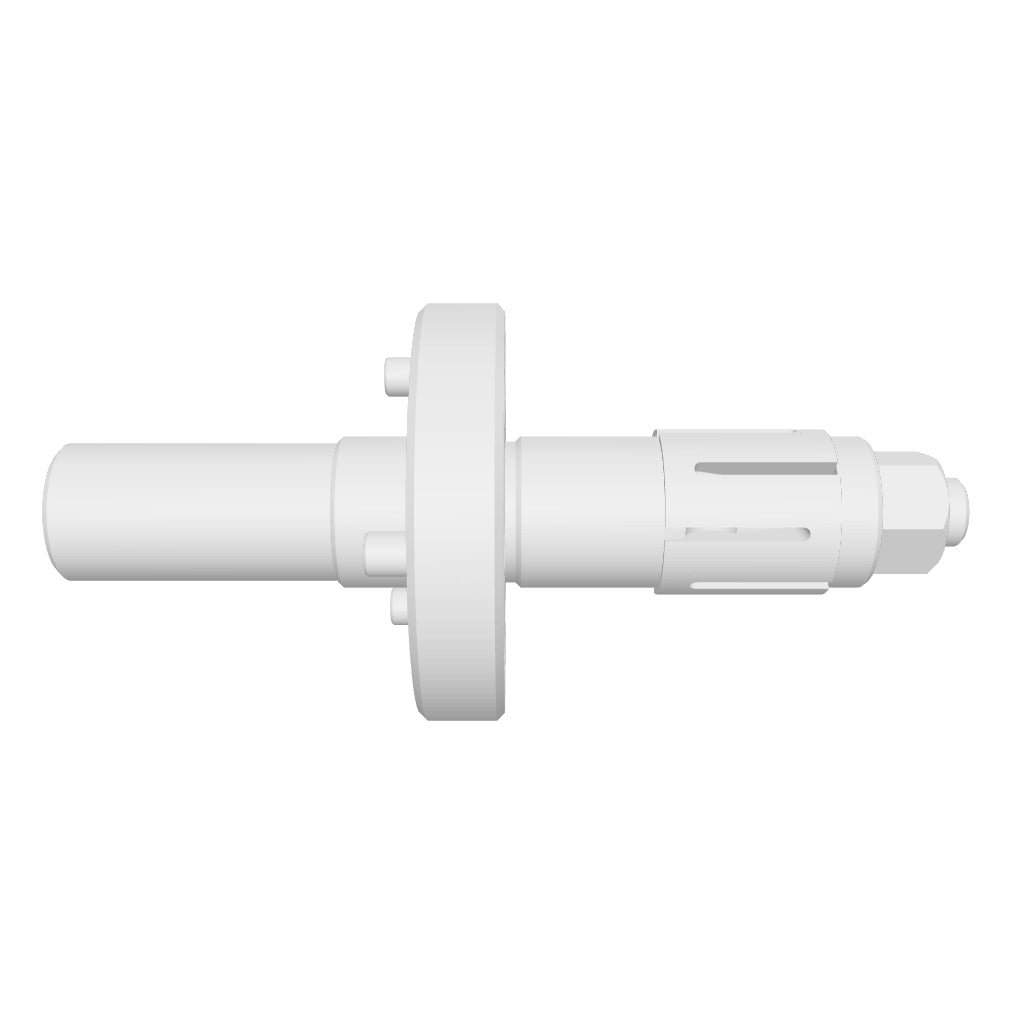

Single Taper Arbors

STM-1

$606.00
A Min_Cust. piece part grip dia :  0.75
A Max_Cust. piece part grip dia :  1.5
Type of actuation :  Manual operation
B :  0.75
C :  0.6875
D :  0.684
E :  0.375
F _ Flange diameter :  1.875
Show more dimensions
G :  0.688
H :  0.375
J :  .313-24
K :  1.25
L :  0.656
M :  (3) .250-20
N :  (3) #10-24
P :  0.577
Q :  0.5
R :  4.063
S :  0.625
T :  0.272
U :  0.188
V :  0.313

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$606.00
