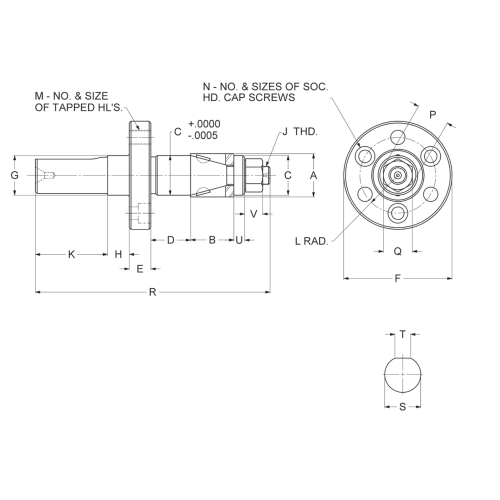

| A Min_Cust. piece part grip dia | : | 0.625 |
| A Max_Cust. piece part grip dia | : | 1.25 |
| Type of actuation | : | Manual operation |
| B | : | 0.563 |
| C | : | 0.5625 |
| D | : | 0.561 |
| E | : | 0.375 |
| F _ Flange diameter | : | 1.75 |
Show more dimensions
| G | : | 0.563 |
| H | : | 0.375 |
| J | : | .250-28 |
| K | : | 1.125 |
| L | : | 0.594 |
| M | : | (3) .250-20 |
| N | : | (3) #10-24 |
| P | : | 0.577 |
| Q | : | 0.5 |
| R | : | 3.563 |
| S | : | 0.5 |
| T | : | 0.242 |
| U | : | 0.125 |
| V | : | 0.313 |
- Regular price
- $606.00
| A Min_Cust. piece part grip dia | : | 0.625 |
| A Max_Cust. piece part grip dia | : | 1.25 |
| Type of actuation | : | Manual operation |
| B | : | 0.563 |
| C | : | 0.5625 |
| D | : | 0.561 |
| E | : | 0.375 |
| F _ Flange diameter | : | 1.75 |
Show more dimensions
| G | : | 0.563 |
| H | : | 0.375 |
| J | : | .250-28 |
| K | : | 1.125 |
| L | : | 0.594 |
| M | : | (3) .250-20 |
| N | : | (3) #10-24 |
| P | : | 0.577 |
| Q | : | 0.5 |
| R | : | 3.563 |
| S | : | 0.5 |
| T | : | 0.242 |
| U | : | 0.125 |
| V | : | 0.313 |
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $606.00
