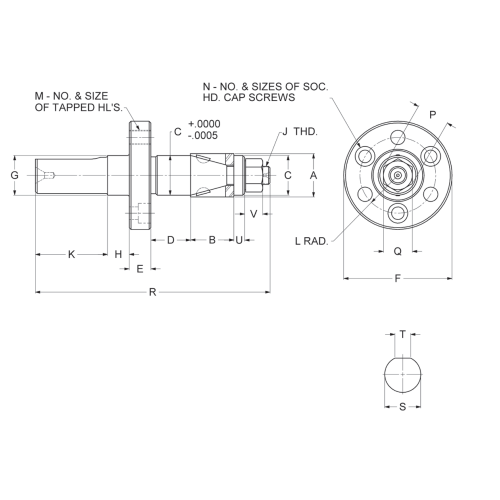

A Min_Cust. piece part grip dia :  0.5
A Max_Cust. piece part grip dia :  1
Type of actuation :  Manual operation
B :  0.375
C :  0.4375
D :  0.495
E :  0.375
F _ Flange diameter :  1.625
Show more dimensions
G :  0.438
H :  0.375
J :  .250-28
K :  1
L :  0.531
M :  (3) .250-20
N :  (3) #10-24
P :  0.433
Q :  0.375
R :  3.188
S :  0.375
T :  0.207
U :  0.125
V :  0.313
Single Taper Arbors

STM-0

$606.00
A Min_Cust. piece part grip dia :  0.5
A Max_Cust. piece part grip dia :  1
Type of actuation :  Manual operation
B :  0.375
C :  0.4375
D :  0.495
E :  0.375
F _ Flange diameter :  1.625
Show more dimensions
G :  0.438
H :  0.375
J :  .250-28
K :  1
L :  0.531
M :  (3) .250-20
N :  (3) #10-24
P :  0.433
Q :  0.375
R :  3.188
S :  0.375
T :  0.207
U :  0.125
V :  0.313
