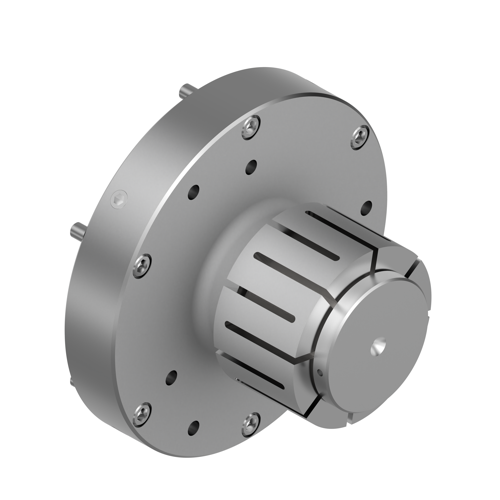

MLD-35 iso

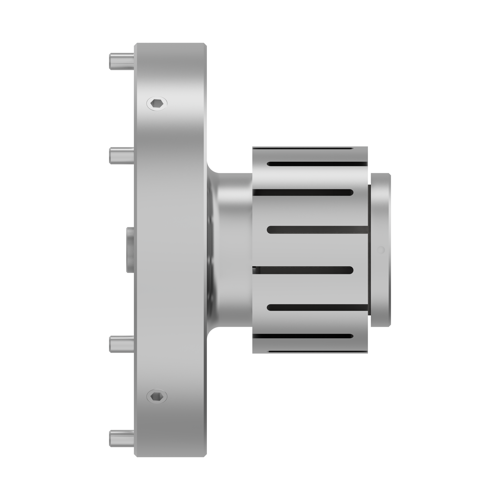

MLD-35 front

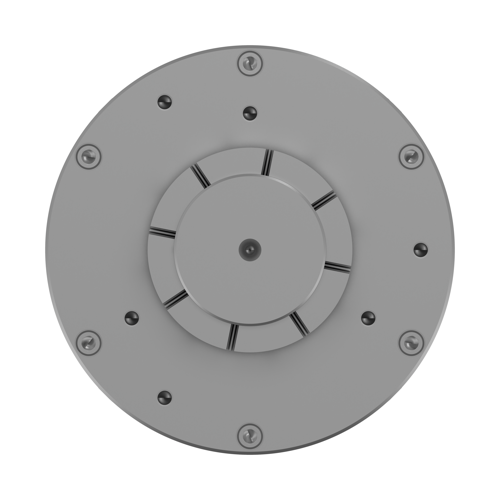

MLD-35 side

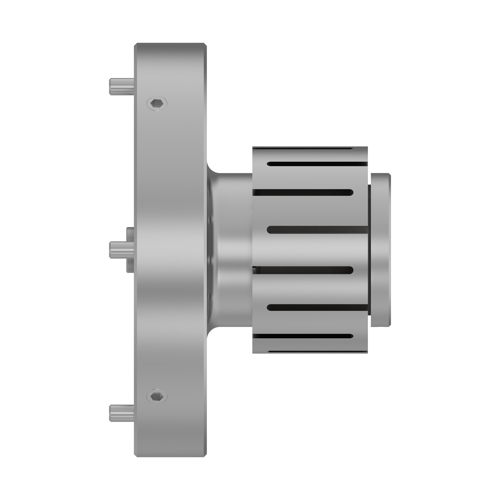

MLD-35 top
A Min_Cust. piece part grip dia :  3.5
A Max_Cust. piece part grip dia :  5.5
C :  1.585
D :  3.342
F _ Flange diameter :  9
Show more dimensions
G :  1.000-14
H :  4.753/4.748
J :  0.75
K :  .375-16 x 1.750
L :  2.51
M :  0.987
P :  0.501
Q :  3.343
R :  0.167
S :  0.5
T :  1.25
U :  505 (5/32 X 5/8)
V :  3
mld-style-mandrels;mld-style

MLD Style Drawbolt-Actuated Mandrel

$0.00
A Min_Cust. piece part grip dia :  3.5
A Max_Cust. piece part grip dia :  5.5
C :  1.585
D :  3.342
F _ Flange diameter :  9
Show more dimensions
G :  1.000-14
H :  4.753/4.748
J :  0.75
K :  .375-16 x 1.750
L :  2.51
M :  0.987
P :  0.501
Q :  3.343
R :  0.167
S :  0.5
T :  1.25
U :  505 (5/32 X 5/8)
V :  3

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$0.00
