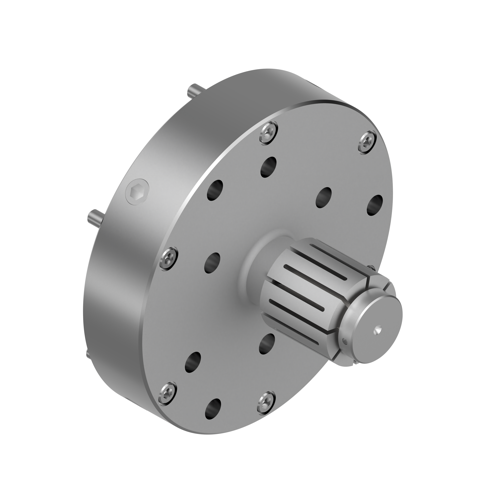

MLD-12 iso

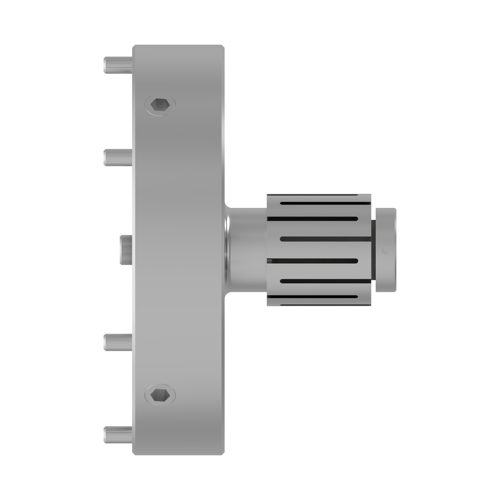

MLD-12 front

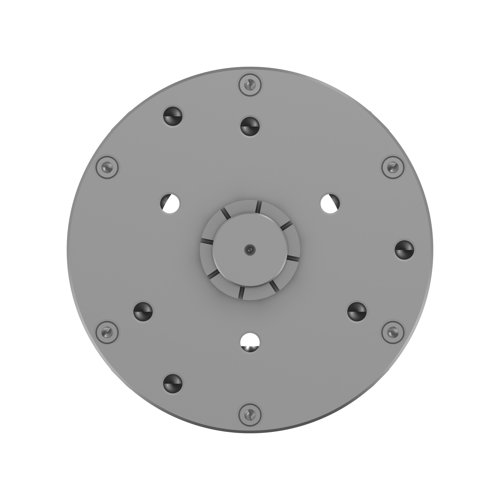

MLD-12 side

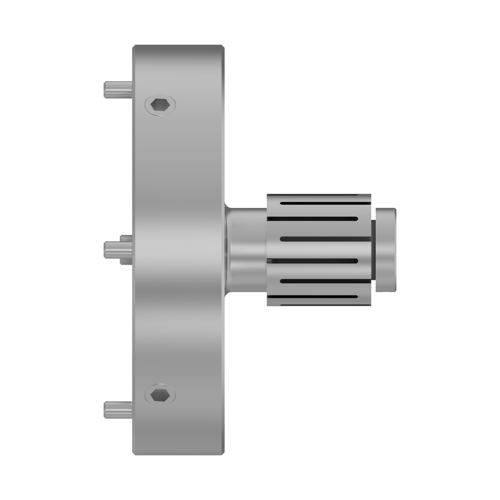

MLD-12 top
A Min_Cust. piece part grip dia :  1.25
A Max_Cust. piece part grip dia :  2
C :  1.338
D :  1.217
F _ Flange diameter :  5.937
Show more dimensions
G :  .438-20
H :  3.128/3.123
J :  0.688
K :  .250-20 x 1.500
L :  1.51
M :  0.61
P :  0.364
Q :  1.218
R :  0.178
S :  0.406
T :  0.75
U :  202.5 (1/16 X 5/16)
V :  2
mld-style-mandrels;mld-style

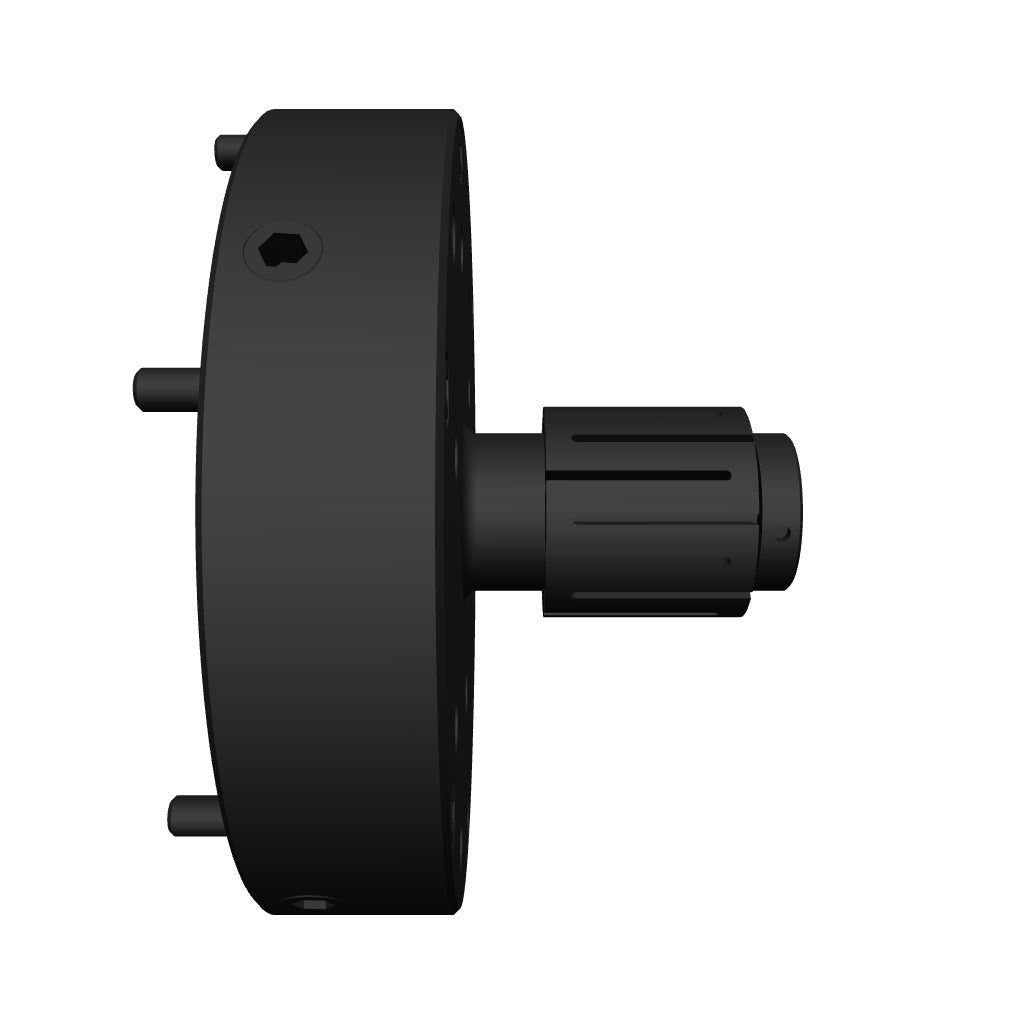

MLD Style Drawbolt-Actuated Mandrel

$0.00
A Min_Cust. piece part grip dia :  1.25
A Max_Cust. piece part grip dia :  2
C :  1.338
D :  1.217
F _ Flange diameter :  5.937
Show more dimensions
G :  .438-20
H :  3.128/3.123
J :  0.688
K :  .250-20 x 1.500
L :  1.51
M :  0.61
P :  0.364
Q :  1.218
R :  0.178
S :  0.406
T :  0.75
U :  202.5 (1/16 X 5/16)
V :  2

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$0.00
