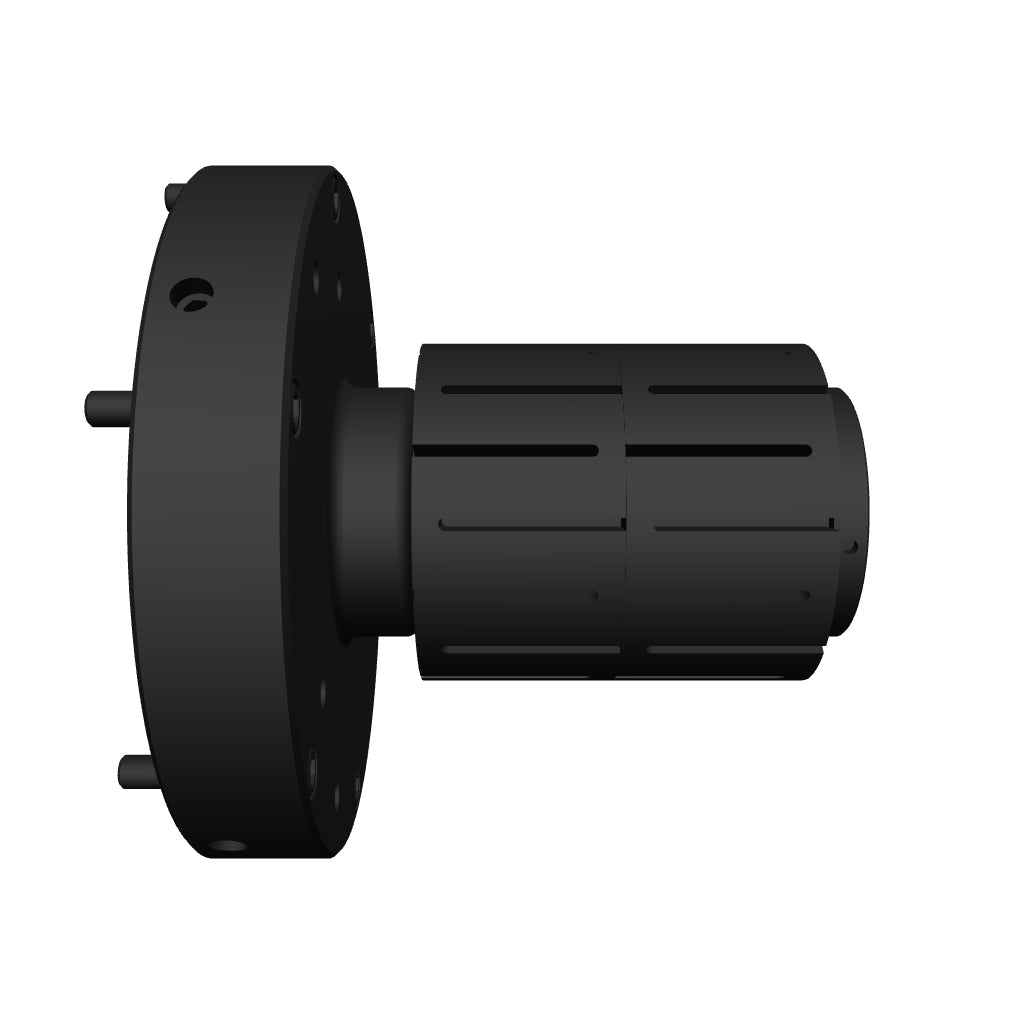

M2LD Style Drawbolt-Actuated Mandrel

$4,895.00
A Min_Cust. piece part grip dia :  3.5
A Max_Cust. piece part grip dia :  5.5
C :  1.59
D :  3.342
F _ Flange diameter :  9
Show more dimensions
G :  1.000-14
H :  4.753/4.748
J :  0.75
K :  .375-16 x 1.750
L :  2.51
M :  0.982
P :  0.502
Q :  3.343
R :  0.092
S :  0.5
T :  1.25
U :  2.5
V :  505 (5/32 X 5/8)

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$4,895.00
