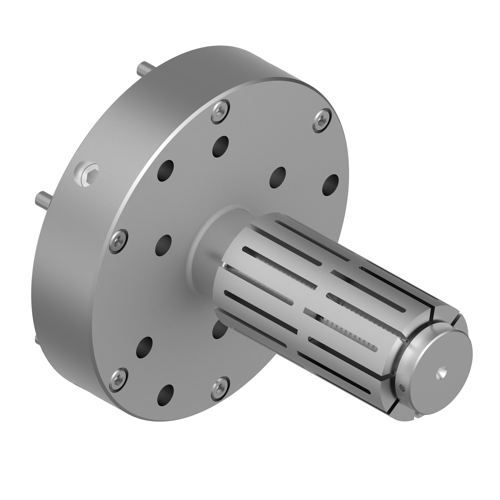

• M2LD-15 iso

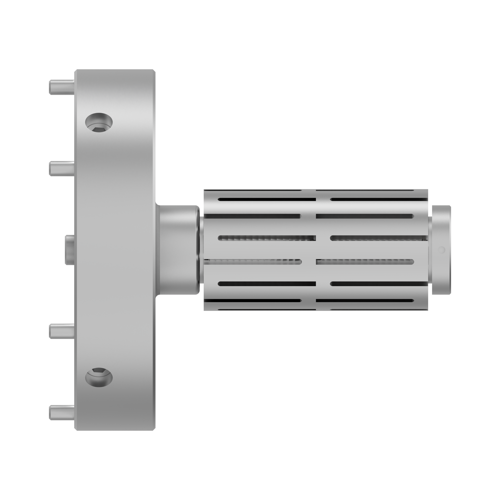

  • M2LD-15 front

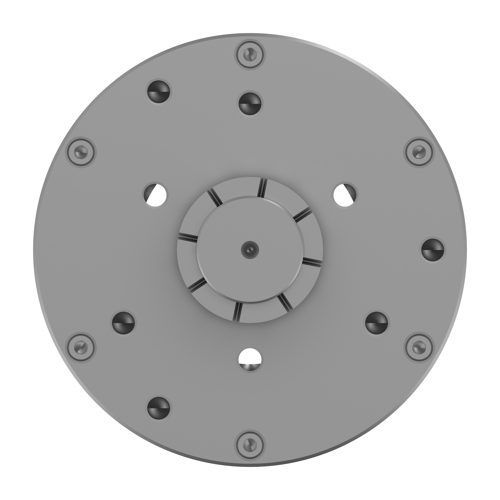

  • M2LD-15 side

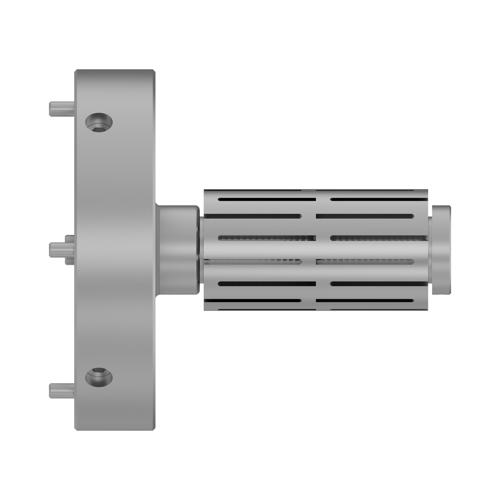

  • M2LD-15 top
M2LD-15 iso
M2LD-15 front
M2LD-15 side
M2LD-15 top
A Min_Cust. piece part grip dia :  1.5
A Max_Cust. piece part grip dia :  2.5
C :  1.335
D :  1.468
F _ Flange diameter :  5.937
Show more dimensions
G :  .500-20
H :  3.128/3.123
J :  0.688
K :  .250-20 x 1.500
L :  1.843
M :  0.727
P :  0.377
Q :  1.468
R :  0.153
S :  0.406
T :  0.938
U :  1.813
V :  304 (3/32 X 1/2)
m2ld-style-mandrels;m2ld-style

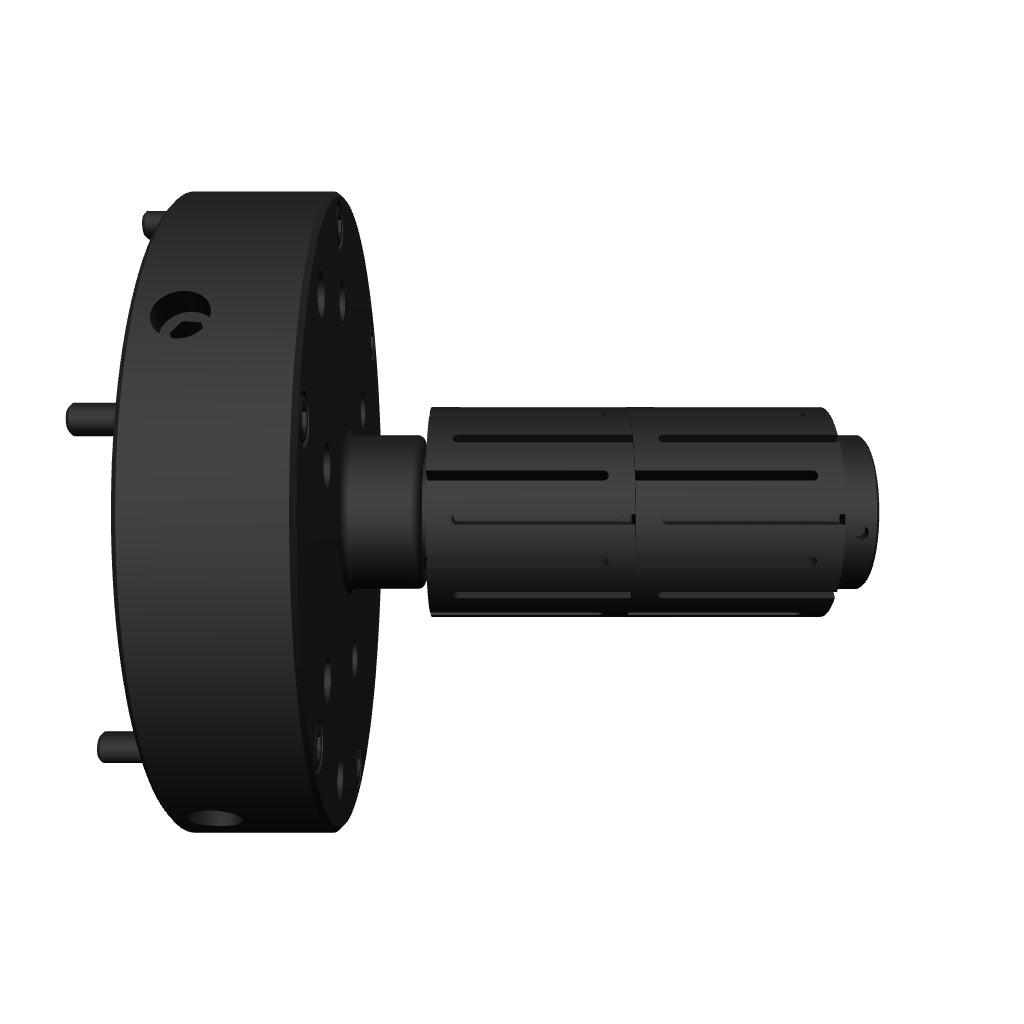

M2LD Style Drawbolt-Actuated Mandrel

$1,263.00
A Min_Cust. piece part grip dia :  1.5
A Max_Cust. piece part grip dia :  2.5
C :  1.335
D :  1.468
F _ Flange diameter :  5.937
Show more dimensions
G :  .500-20
H :  3.128/3.123
J :  0.688
K :  .250-20 x 1.500
L :  1.843
M :  0.727
P :  0.377
Q :  1.468
R :  0.153
S :  0.406
T :  0.938
U :  1.813
V :  304 (3/32 X 1/2)

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$1,263.00
