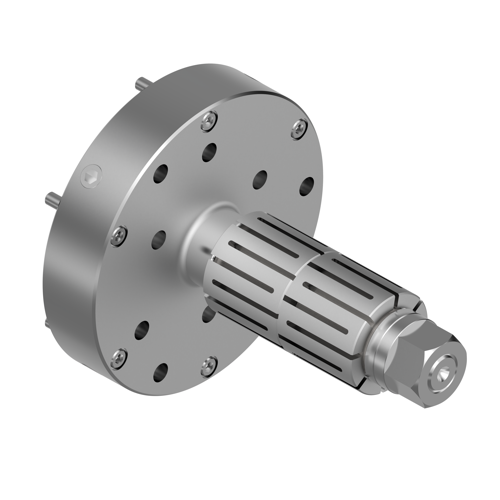

files/m2fln-15_iso_fe0a14d3-8666-4a66-a4f8-c1338c531a34.png
-

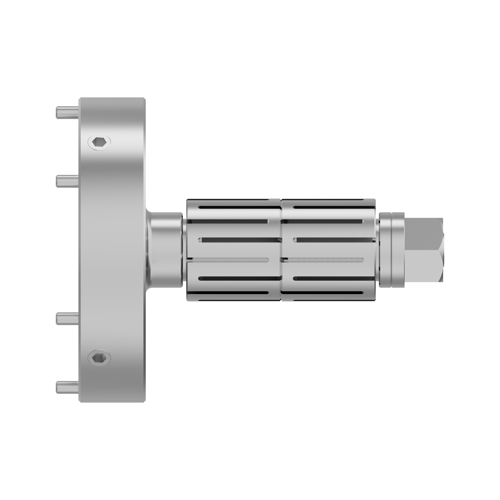

files/m2fln-15_front_99fb6375-f4a4-43a6-a04c-d35b5b37c8dc.png
-

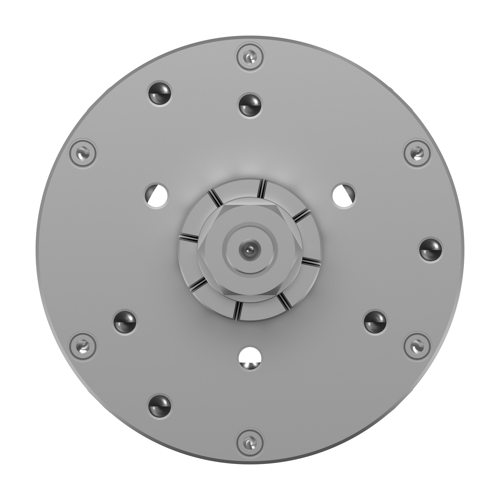

files/m2fln-15_side_242d5e6d-e4a5-40ff-92fb-e1228c9f7327.png
-

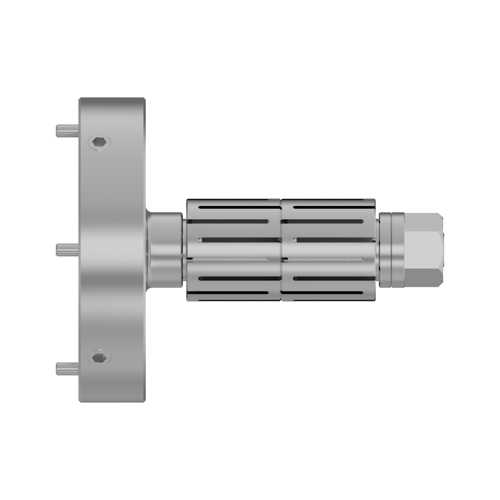

files/m2fln-15_top_ab0ef5e8-bd23-4a1d-9deb-83b53b76bcca.png
-
files/preview_images/m2fln-15_b905ad62-b0bf-4425-81ed-8438cc1a811e.jpg
Dimensions
- A Grip diameter
- Min 1.5 – Max 2.5 in
- C
- 1.31 in
- D
- 1.468 in
- F Flange diameter
- 5.937 in
- G
- .750-16 in
- H
- 3.128/3.123 in
- J
- 0.688 in
- K
- .250-20 x 1.500 in
- L
- 1.843 in
- M
- 0.787 in
- N
- 1.25 in
- P
- 1.331 in
- Q
- 1.468 in
- R
- 0.406 in
- S
- 1 in
- T
- 0.75 in
- U
- 2.5 in
- V
- 2 in
Dimensions
- A Grip diameter
- Min 1.5 – Max 2.5 in
- C
- 1.31 in
- D
- 1.468 in
- F Flange diameter
- 5.937 in
- G
- .750-16 in
- H
- 3.128/3.123 in
- J
- 0.688 in
- K
- .250-20 x 1.500 in
- L
- 1.843 in
- M
- 0.787 in
- N
- 1.25 in
- P
- 1.331 in
- Q
- 1.468 in
- R
- 0.406 in
- S
- 1 in
- T
- 0.75 in
- U
- 2.5 in
- V
- 2 in
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,463.00
