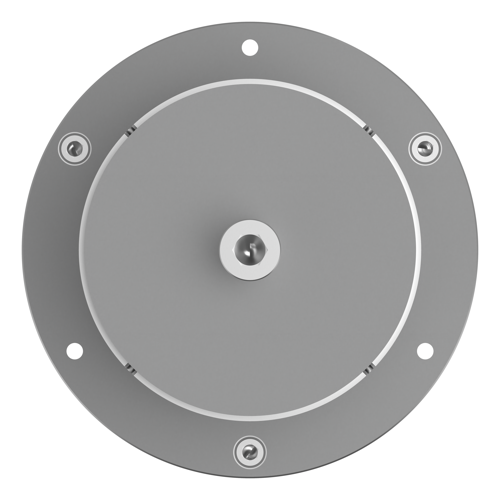

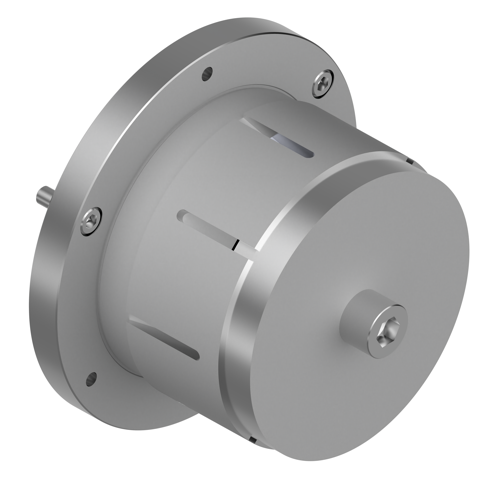

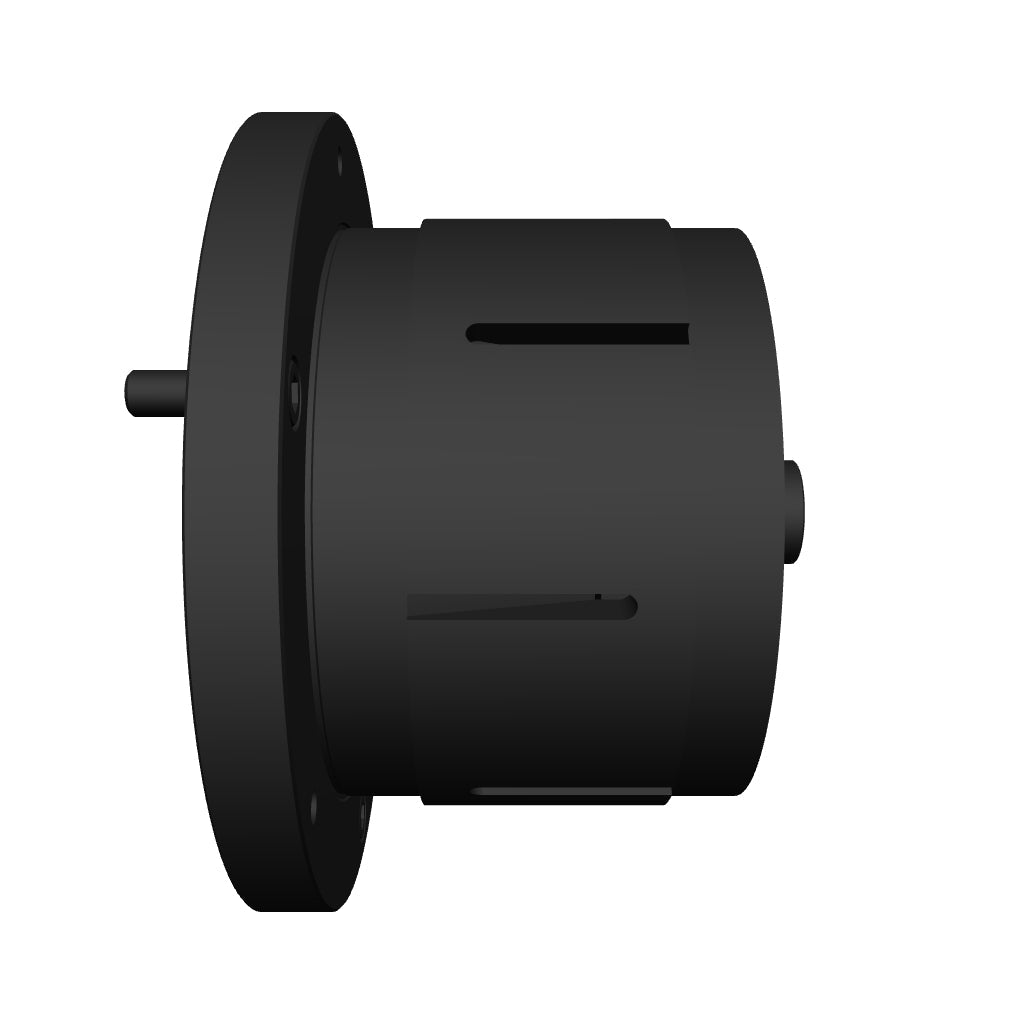

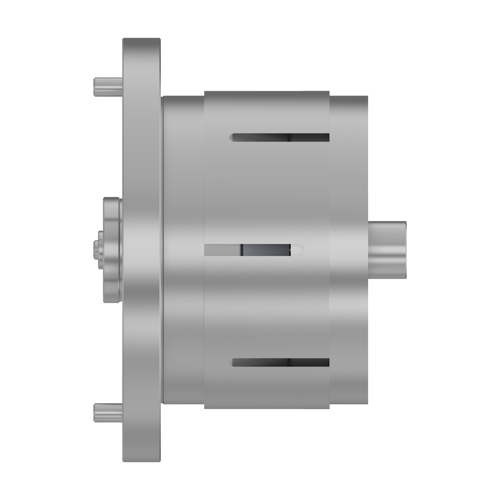

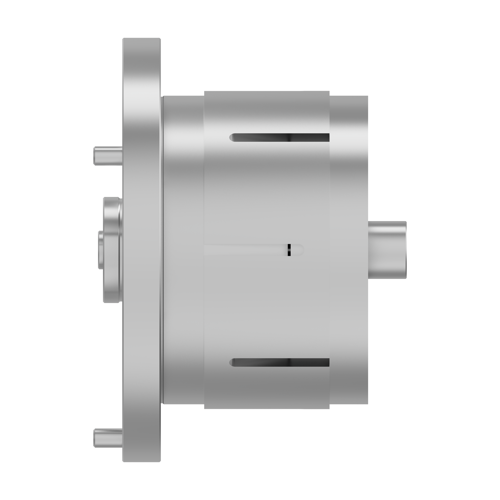

Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 3.25 in
- Actuation
- Manual operation
- C
- 8 in
- D
- 1.123 in
- E
- 1 in
- F Flange diameter
- 11 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.000-8 in
- L
- 4.875 in
- M
- 1 in
- N
- 7.372 in
- P
- (3) .375-16 in
- Q
- (3) .500-13 in
- R
- 0.128 in
- S
- 1.5 in
- T
- 1 in
- V
- 2.375 in
Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 3.25 in
- Actuation
- Manual operation
- C
- 8 in
- D
- 1.123 in
- E
- 1 in
- F Flange diameter
- 11 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.000-8 in
- L
- 4.875 in
- M
- 1 in
- N
- 7.372 in
- P
- (3) .375-16 in
- Q
- (3) .500-13 in
- R
- 0.128 in
- S
- 1.5 in
- T
- 1 in
- V
- 2.375 in
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $2,937.00
