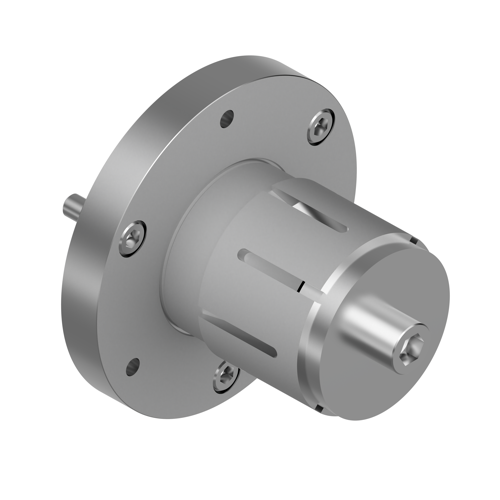

JF-4.5-DB iso

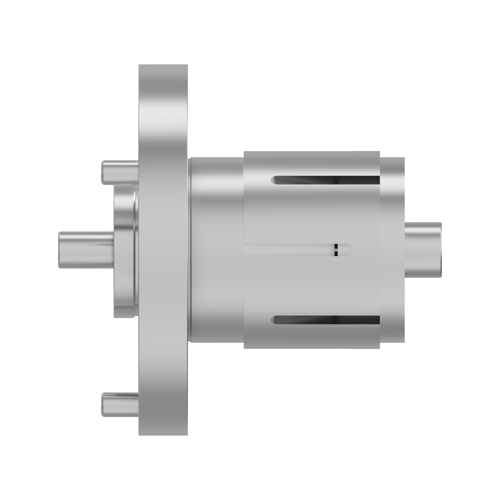

JF-4.5-DB front

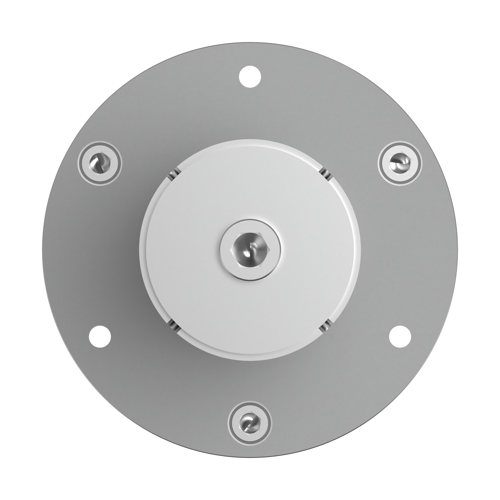

JF-4.5-DB side

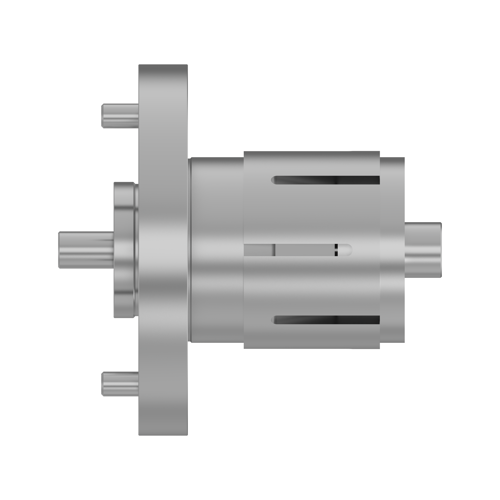

JF-4.5-DB top

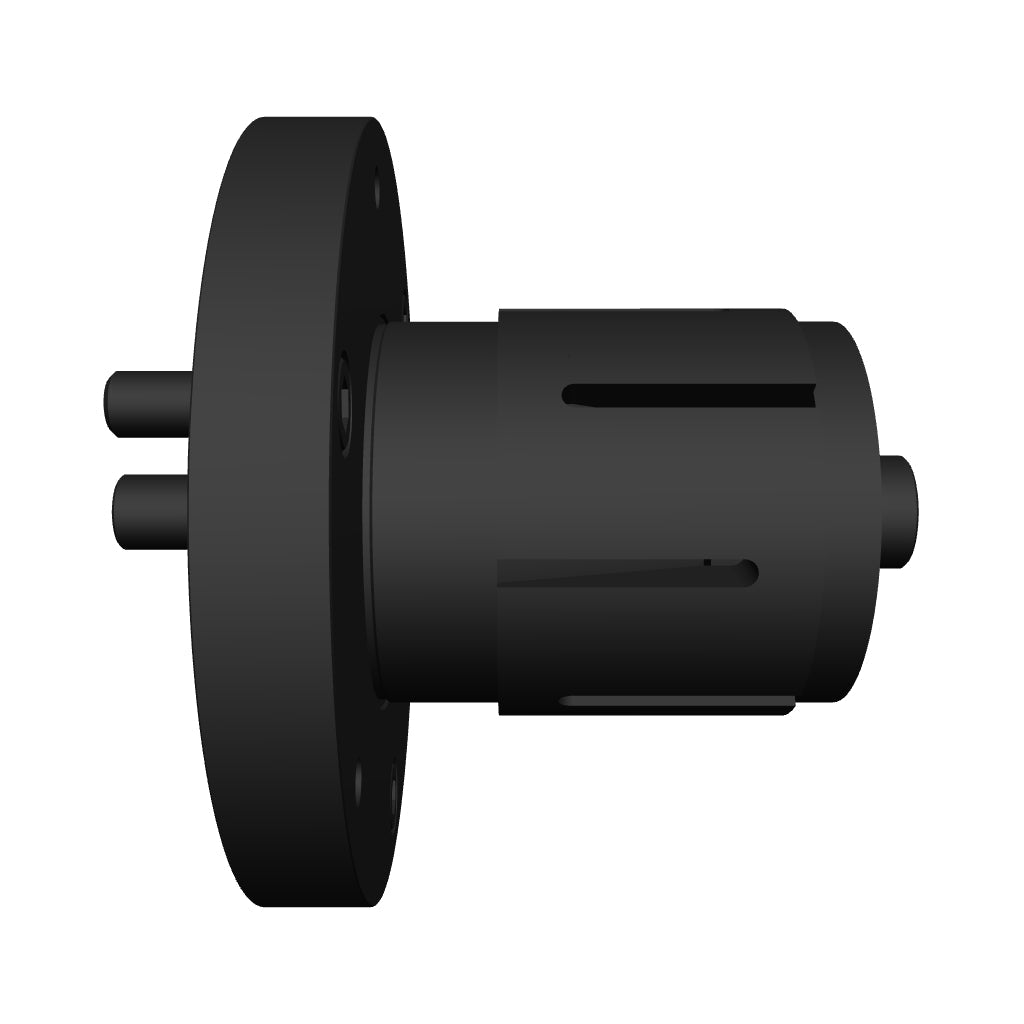

Standard Single Taper Locator Chuck – Drawbar Operation

Dimensions

A Grip diameter
Min 4 – Max 10 in
B Length
2.75 in
Actuation
Draw bar operation
C
3.75 in
D
1.129 in
E
1 in
F Flange diameter
7.5 in

#4.5 Standard Single Taper Locator Chuck – Drawbar Operation

JF-4-5-DB

$1,386.00

Dimensions

A Grip diameter
Min 4 – Max 10 in
B Length
2.75 in
Actuation
Draw bar operation
C
3.75 in
D
1.129 in
E
1 in
F Flange diameter
7.5 in

Documentation

Data Sheet

2D Drawing

3D Drawing

Download 3D Files

Creo Parametric (.asm)

Solidworks (.sldprt)

STEP (.stp)

ACIS (.sat)

Parasolid (.x_t)

IGES (.igs)

$1,386.00
