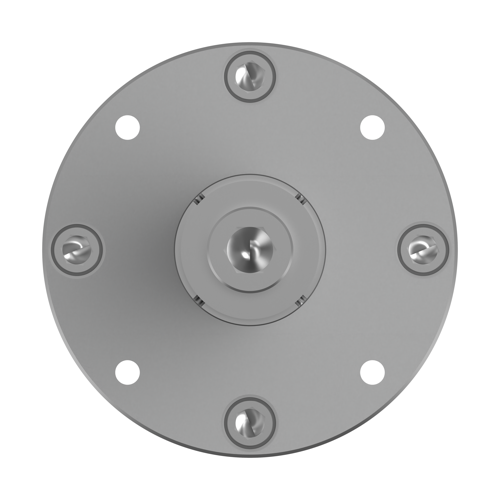

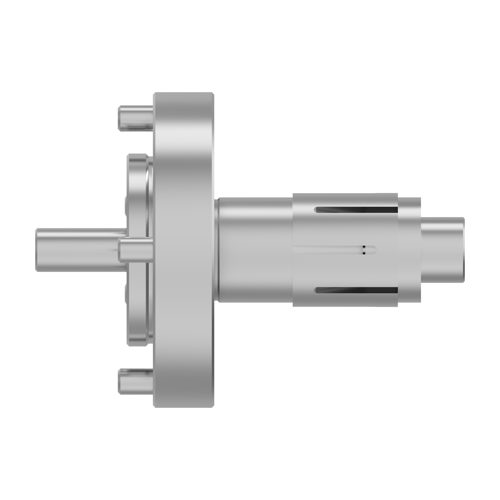

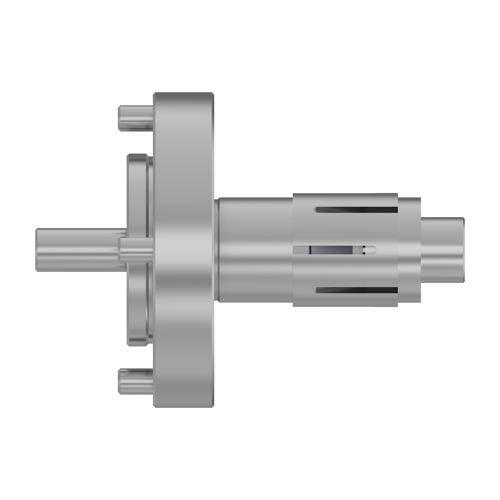

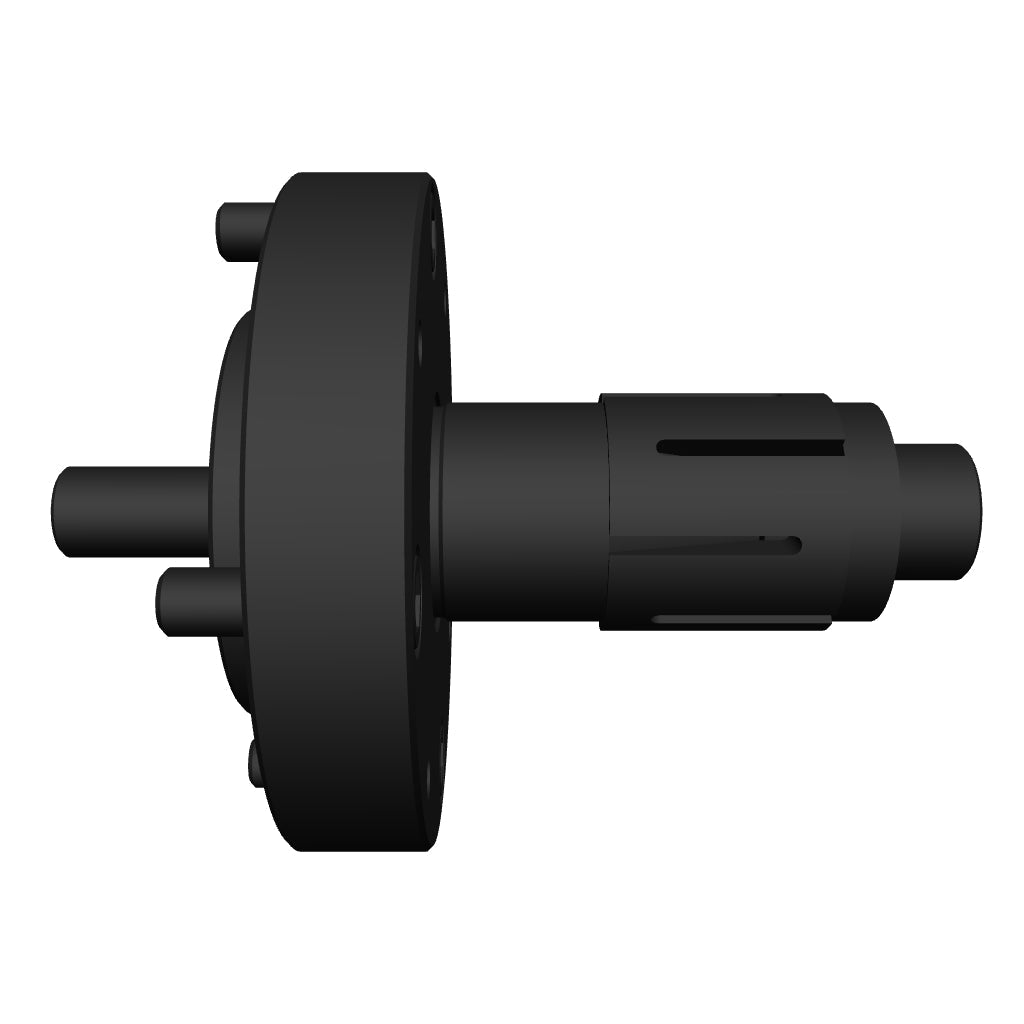

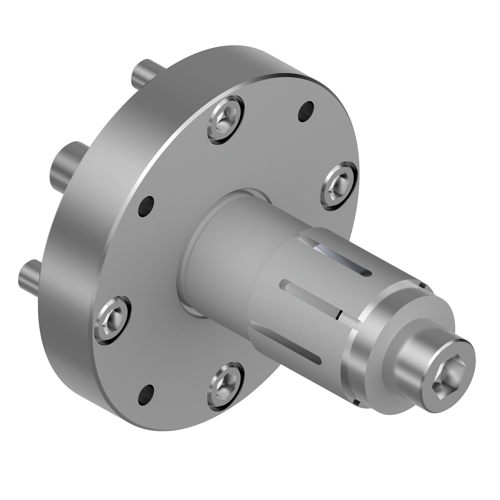

Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.5 in
- Actuation
- Draw bar operation
- C
- 1.5 in
- D
- 1.118 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- .625-11 in
- K
- 1.303 in
- L
- 1.875 in
- M
- 0.329 in
- N
- 4.447 in
- P
- (4) .250-20 in
- Q
- (4) .375-16 in
- S
- 0.938 in
- T
- 0.63 in
- U
- 1.584 in
- V
- 1.875 in
Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.5 in
- Actuation
- Draw bar operation
- C
- 1.5 in
- D
- 1.118 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- .625-11 in
- K
- 1.303 in
- L
- 1.875 in
- M
- 0.329 in
- N
- 4.447 in
- P
- (4) .250-20 in
- Q
- (4) .375-16 in
- S
- 0.938 in
- T
- 0.63 in
- U
- 1.584 in
- V
- 1.875 in
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $642.00
