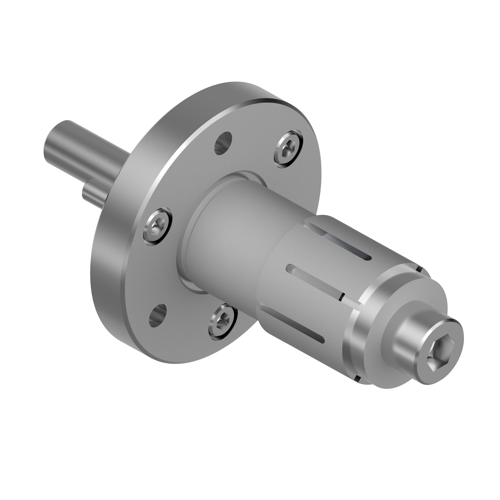

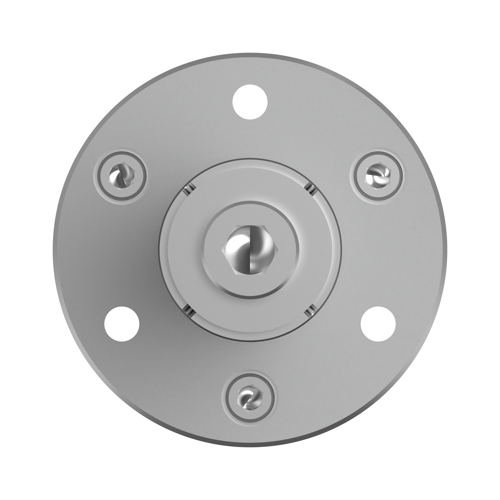

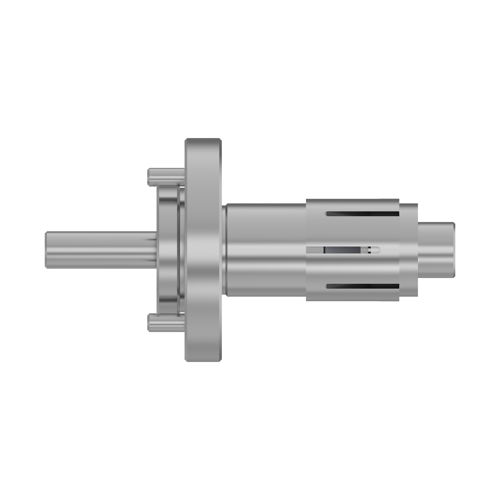

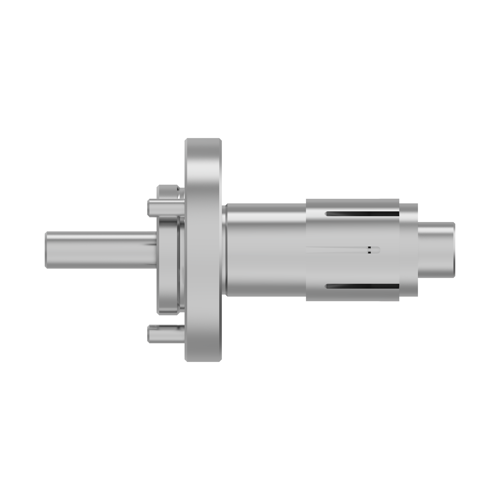

Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.25 in
- Actuation
- Draw bar operation
- C
- 1.25 in
- D
- 1.127 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- .500-13 in
- K
- 1.498 in
- L
- 1.125 in
- M
- 0.25 in
- N
- 3.627 in
- P
- (3) .250-20 in
- Q
- (3) .250-20 in
- S
- 0.75 in
- T
- 0.5 in
- U
- 1.655 in
- V
- 1.25 in
Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.25 in
- Actuation
- Draw bar operation
- C
- 1.25 in
- D
- 1.127 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- .500-13 in
- K
- 1.498 in
- L
- 1.125 in
- M
- 0.25 in
- N
- 3.627 in
- P
- (3) .250-20 in
- Q
- (3) .250-20 in
- S
- 0.75 in
- T
- 0.5 in
- U
- 1.655 in
- V
- 1.25 in
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $692.00
