Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 4.5 in
- Actuation
- Draw bar operation
- C
- 8 in
- D
- 1.123 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 2.25 in
- H
- 2.128 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 8 in
- M
- 1.25 in
- N
- 7.099 in
- P
- 4.313 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4.875 in
- U
- 5.75 in

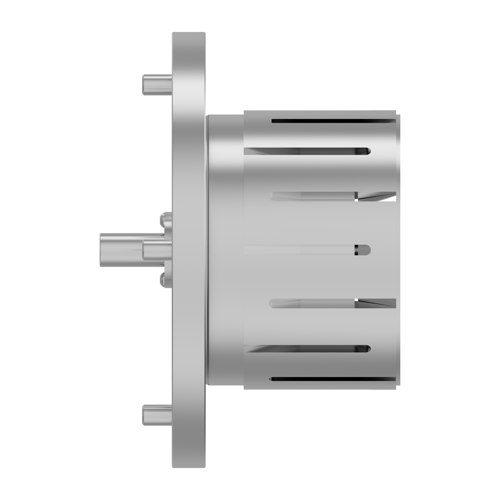

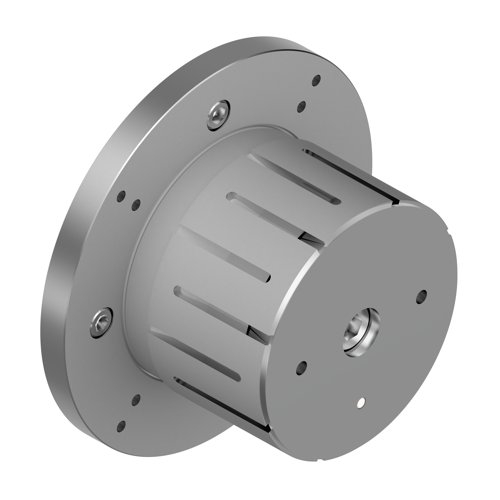

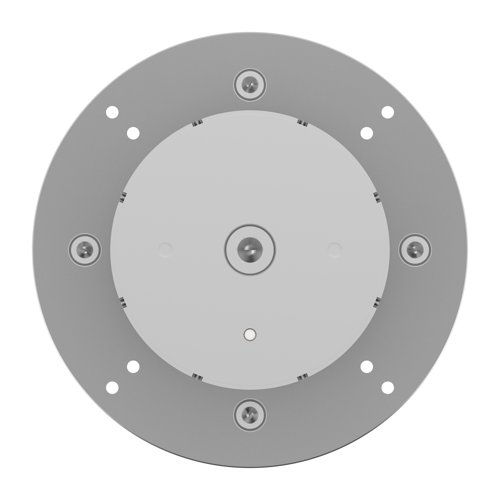

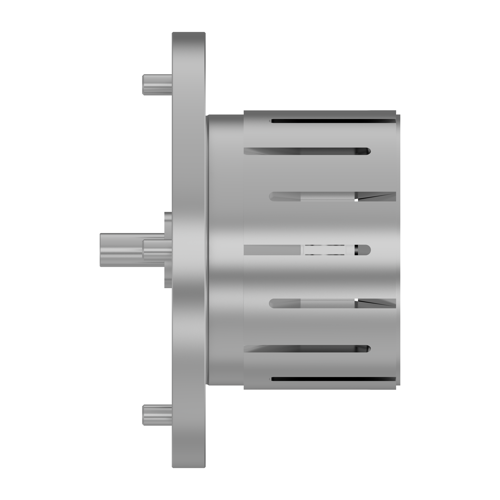

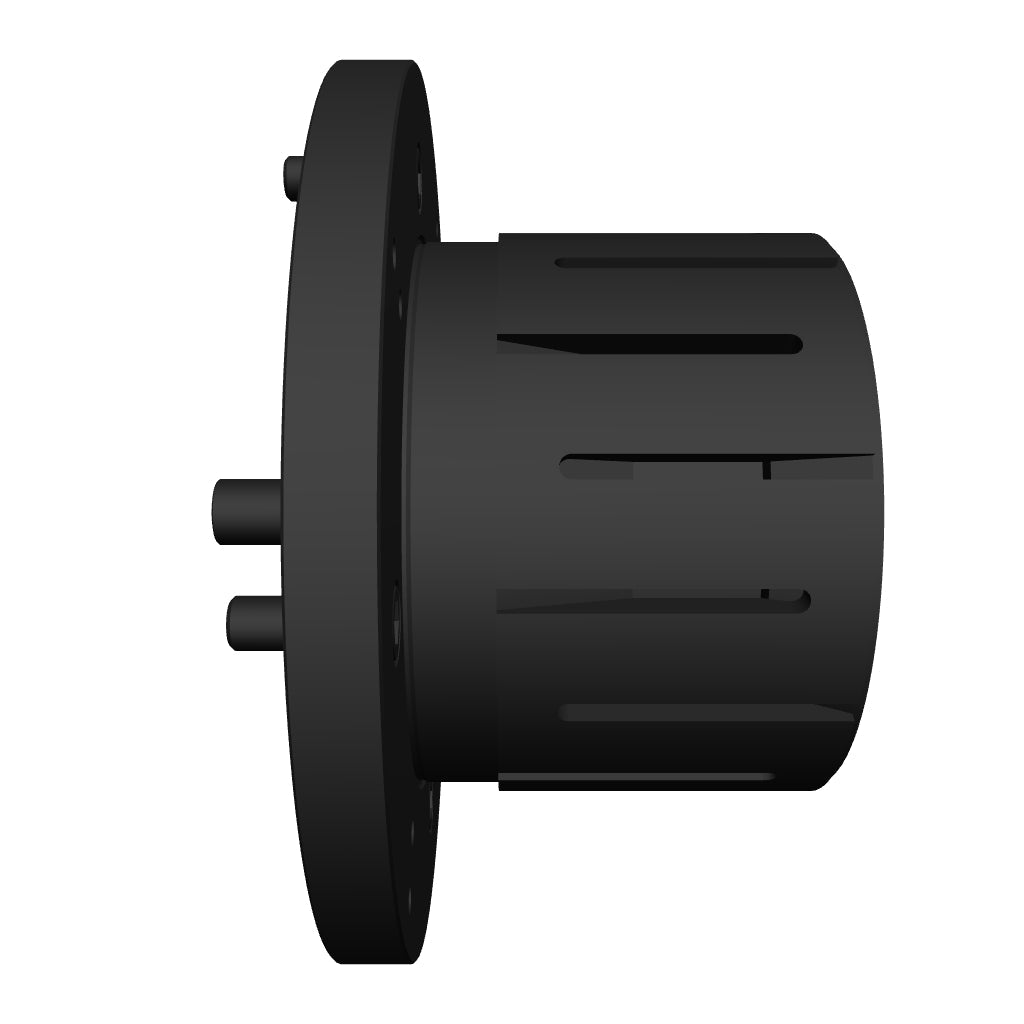

Standard Double Taper Chuck – Short Series. Model DTNS-8-DB13. Draw bar operation. Customer piece part grip diameter 8.25–17 in.
Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 4.5 in
- Actuation
- Draw bar operation
- C
- 8 in
- D
- 1.123 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 2.25 in
- H
- 2.128 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 8 in
- M
- 1.25 in
- N
- 7.099 in
- P
- 4.313 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4.875 in
- U
- 5.75 in
Standard Double Taper Chuck – Short Series. Model DTNS-8-DB13. Draw bar operation. Customer piece part grip diameter 8.25–17 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $3,608.00
