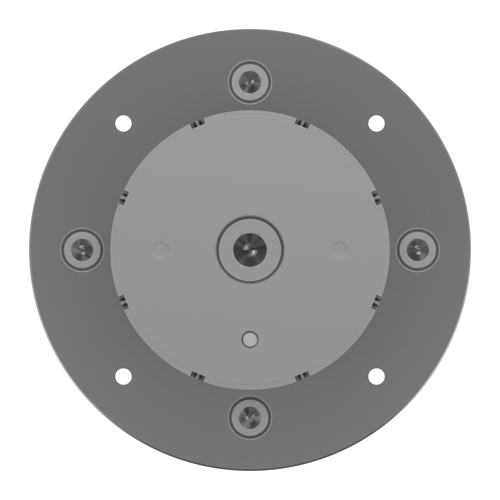

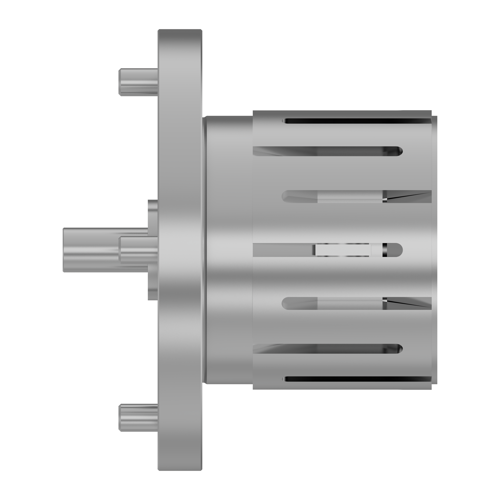

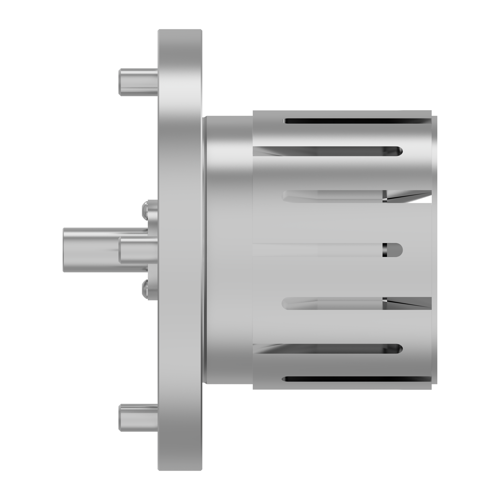

Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4 in
- Actuation
- Draw bar operation
- C
- 6 in
- D
- 1.127 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 2.25 in
- H
- 2.122 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 6 in
- M
- 1.125 in
- N
- 5.224 in
- P
- 4 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4 in

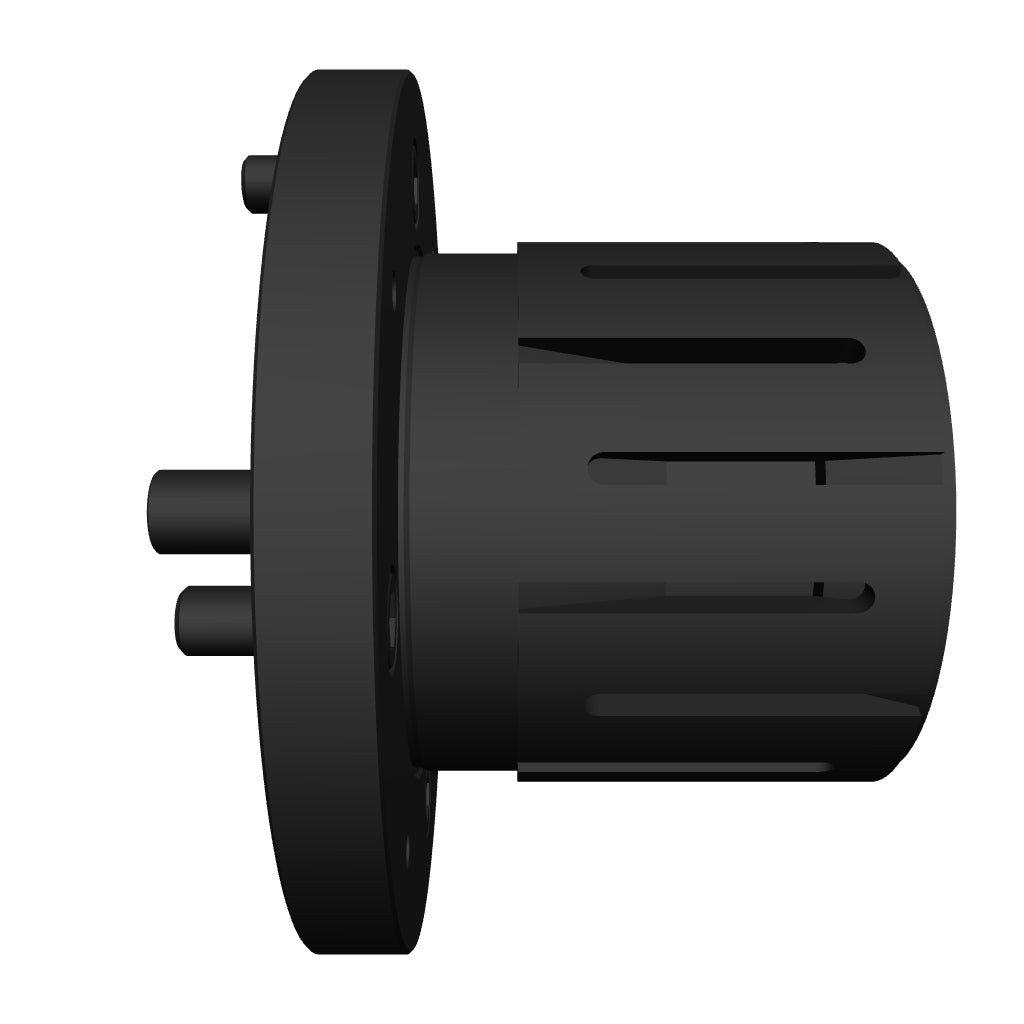

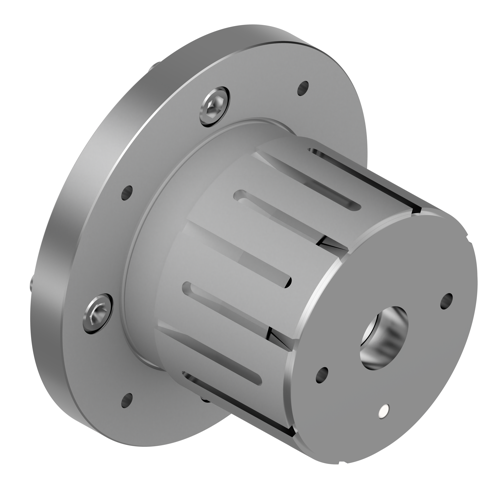

Standard Double Taper Chuck – Short Series. Model DTNS-6-DB10. Draw bar operation. Customer piece part grip diameter 6.25–13 in.
Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4 in
- Actuation
- Draw bar operation
- C
- 6 in
- D
- 1.127 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 2.25 in
- H
- 2.122 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 6 in
- M
- 1.125 in
- N
- 5.224 in
- P
- 4 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4 in
Standard Double Taper Chuck – Short Series. Model DTNS-6-DB10. Draw bar operation. Customer piece part grip diameter 6.25–13 in.
