Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 2.5 in
- Actuation
- Draw bar operation
- C
- 2.75 in
- D
- 1.118 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 1.813 in
- H
- 2.131 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 2.75 in
- M
- 0.75 in
- N
- 2.239 in
- R
- 1.875 in
- S
- 0.56 in
- T
- 2.25 in
- U
- 3.125 in
- V
- 4 in

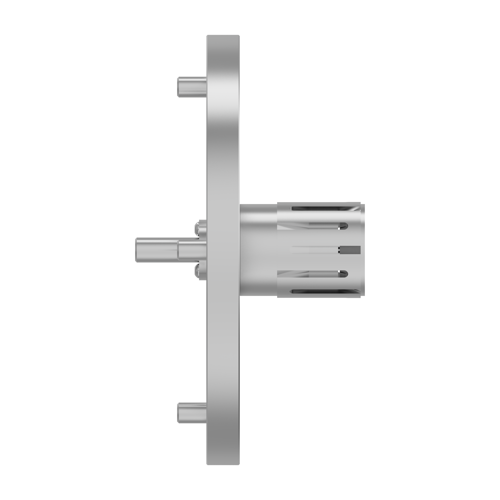

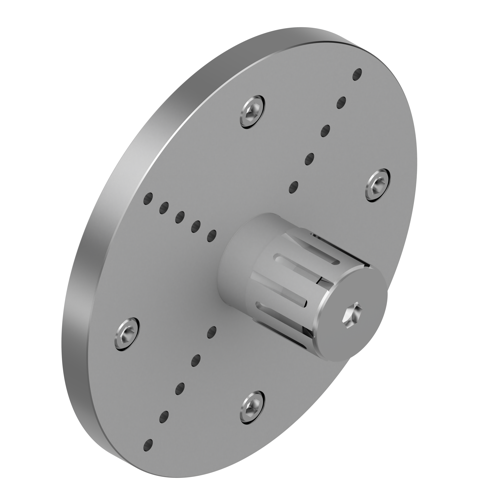

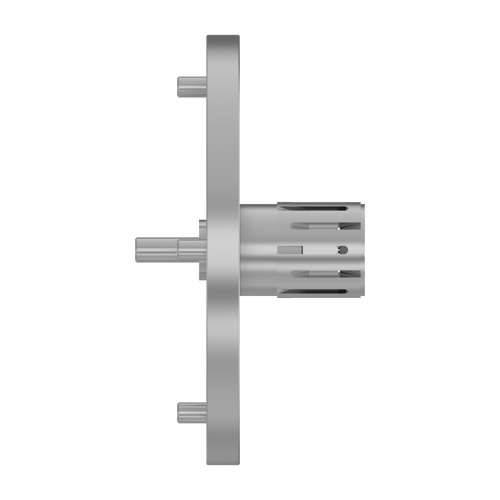

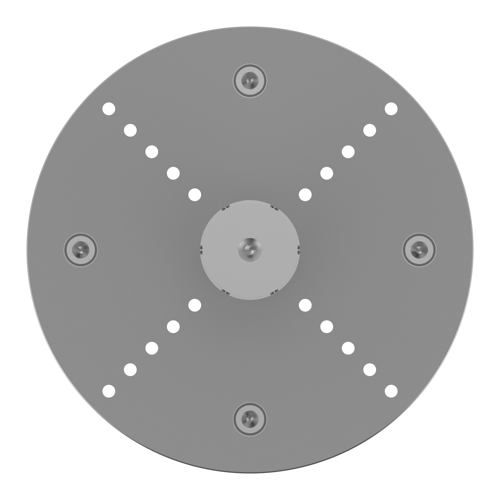

Standard Double Taper Chuck – Short Series. Model DTNS-4-DB13. Draw bar operation. Customer piece part grip diameter 2.875–7 in.
Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 2.5 in
- Actuation
- Draw bar operation
- C
- 2.75 in
- D
- 1.118 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 1.813 in
- H
- 2.131 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 2.75 in
- M
- 0.75 in
- N
- 2.239 in
- R
- 1.875 in
- S
- 0.56 in
- T
- 2.25 in
- U
- 3.125 in
- V
- 4 in
Standard Double Taper Chuck – Short Series. Model DTNS-4-DB13. Draw bar operation. Customer piece part grip diameter 2.875–7 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $2,393.00
