Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.625 in
- Actuation
- Draw bar operation
- C
- 1.5 in
- D
- 1.128 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 1.813 in
- H
- 1.622 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 1.5 in
- M
- 0.531 in
- N
- 1.224 in
- R
- 1.875 in
- S
- 0.38 in
- T
- 1.375 in
- U
- 2.25 in
- V
- 3.125 in

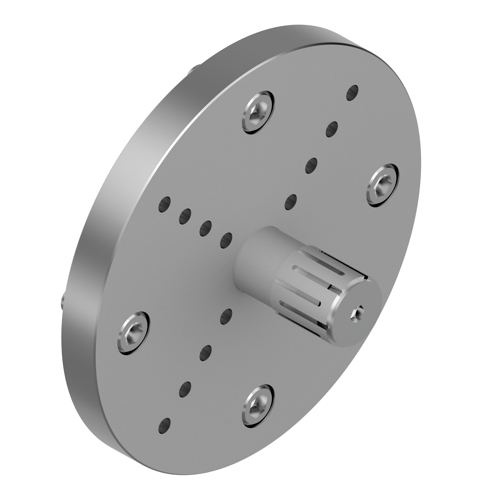

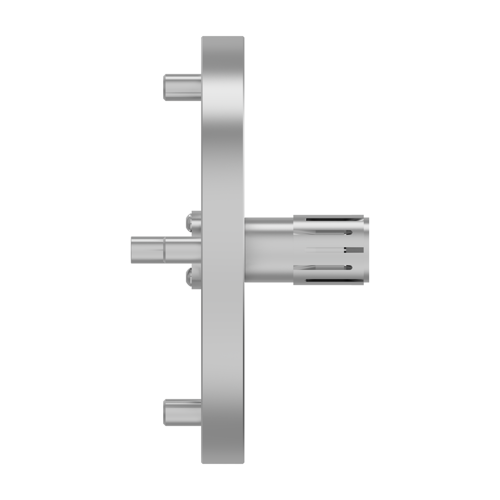

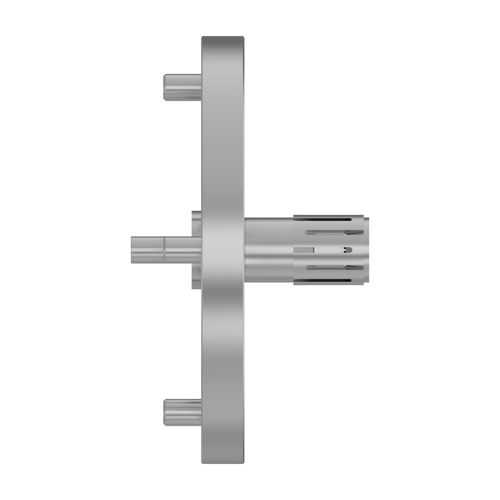

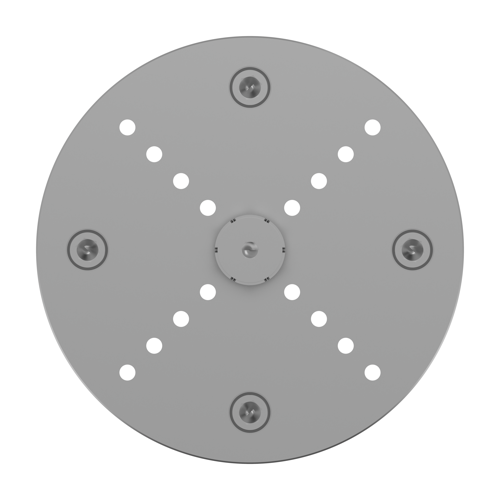

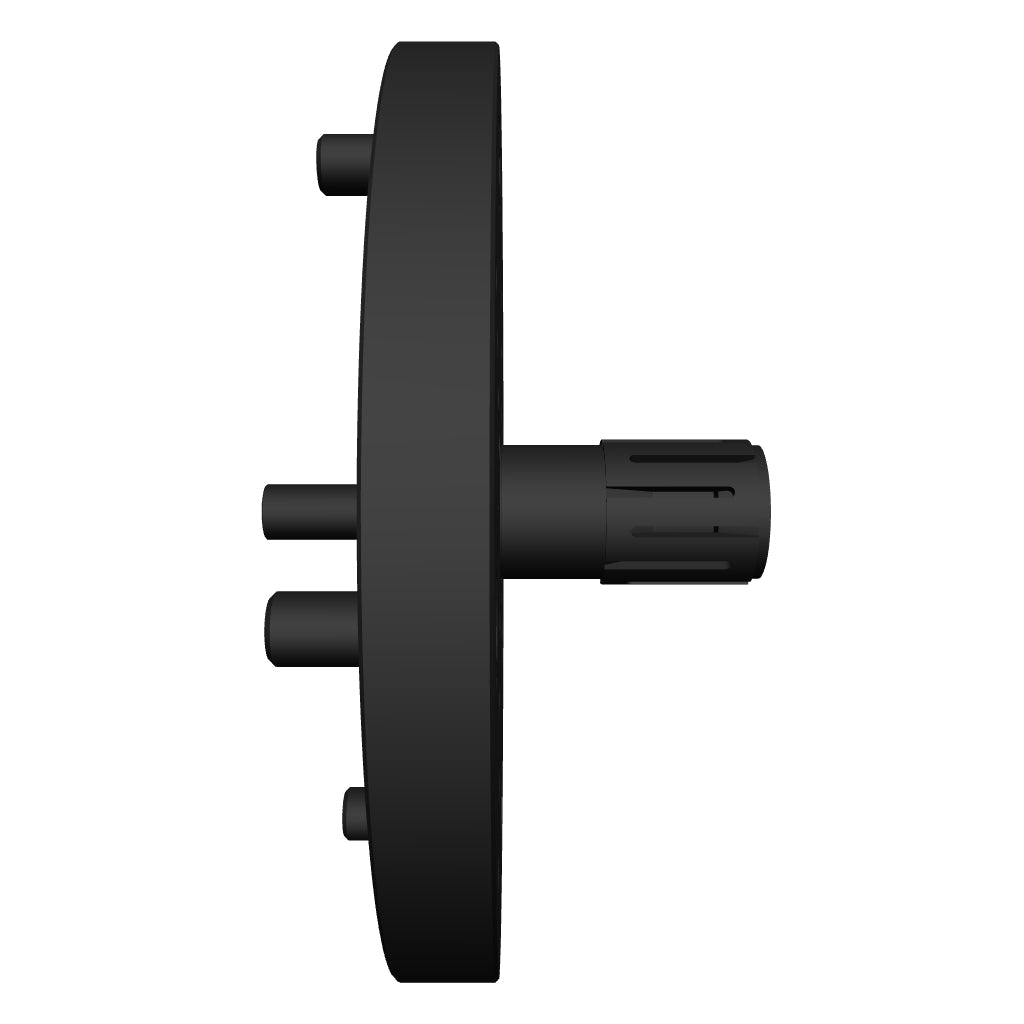

Standard Double Taper Chuck – Short Series. Model DTNS-3-DB10. Draw bar operation. Customer piece part grip diameter 1.625–4.25 in.
Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.625 in
- Actuation
- Draw bar operation
- C
- 1.5 in
- D
- 1.128 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 1.813 in
- H
- 1.622 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 1.5 in
- M
- 0.531 in
- N
- 1.224 in
- R
- 1.875 in
- S
- 0.38 in
- T
- 1.375 in
- U
- 2.25 in
- V
- 3.125 in
Standard Double Taper Chuck – Short Series. Model DTNS-3-DB10. Draw bar operation. Customer piece part grip diameter 1.625–4.25 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,503.00
