Dimensions
- A Grip diameter
- Min 2.375 – Max 5.5 in
- B Length
- 2 in
- Actuation
- Draw bar operation
- C
- 2.25 in
- D
- 1.107 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.813 in
- H
- 2.003 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 2.25 in
- M
- 0.625 in
- N
- 1.875 in
- R
- 1.875 in
- S
- 0.44 in
- T
- 1.75 in

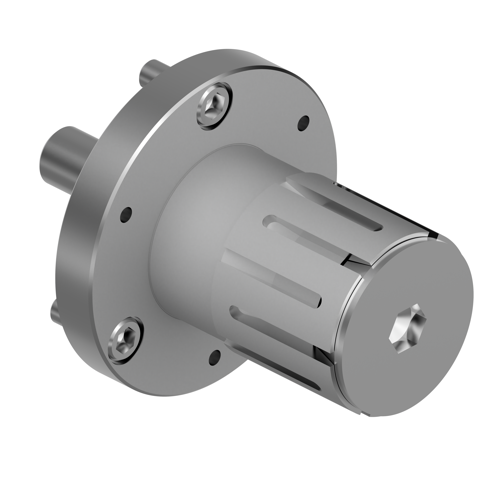

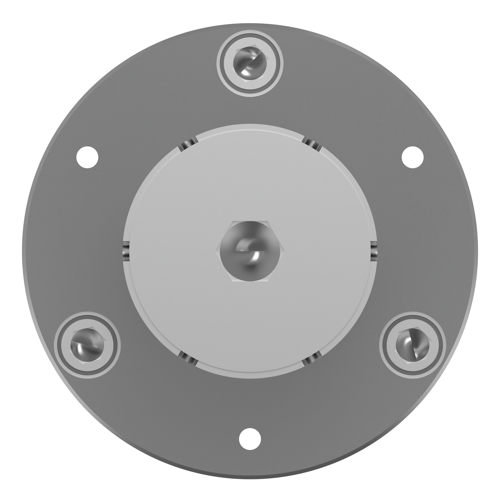

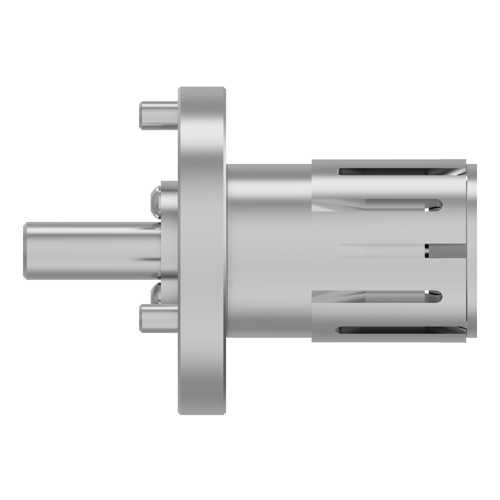

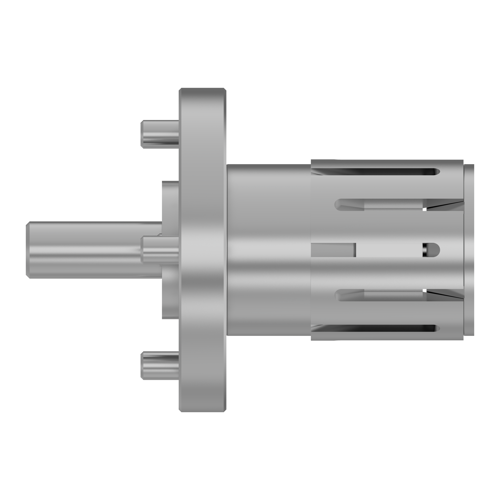

Standard Double Taper Chuck – Short Series. Model DTNS-3.5-DB4. Draw bar operation. Customer piece part grip diameter 2.375–5.5 in.
Dimensions
- A Grip diameter
- Min 2.375 – Max 5.5 in
- B Length
- 2 in
- Actuation
- Draw bar operation
- C
- 2.25 in
- D
- 1.107 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.813 in
- H
- 2.003 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 2.25 in
- M
- 0.625 in
- N
- 1.875 in
- R
- 1.875 in
- S
- 0.44 in
- T
- 1.75 in
Standard Double Taper Chuck – Short Series. Model DTNS-3.5-DB4. Draw bar operation. Customer piece part grip diameter 2.375–5.5 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $750.00
