Dimensions
- A Grip diameter
- Min 0.9375 – Max 2 in
- B Length
- 1 in
- Actuation
- Draw bar operation
- C
- 0.875 in
- D
- 0.882 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 1.813 in
- H
- 1.131 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 0.875 in
- M
- 0.375 in
- N
- 0.693 in
- R
- 1.875 in
- S
- 0.28 in
- T
- 1.375 in
- U
- 2.25 in
- V
- 3.125 in

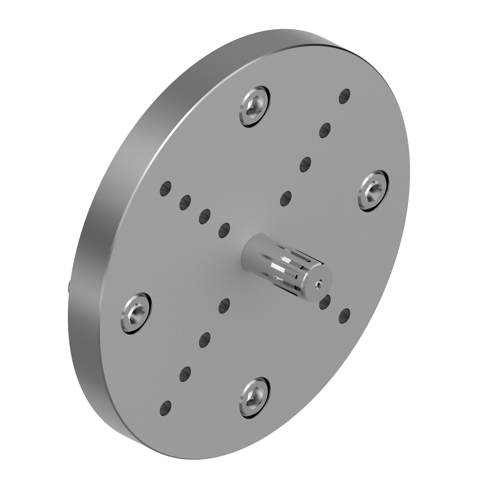

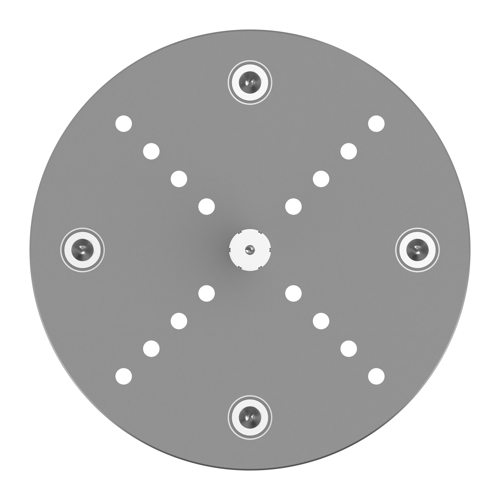

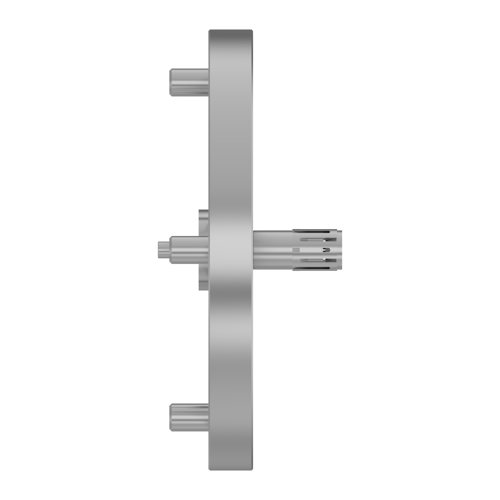

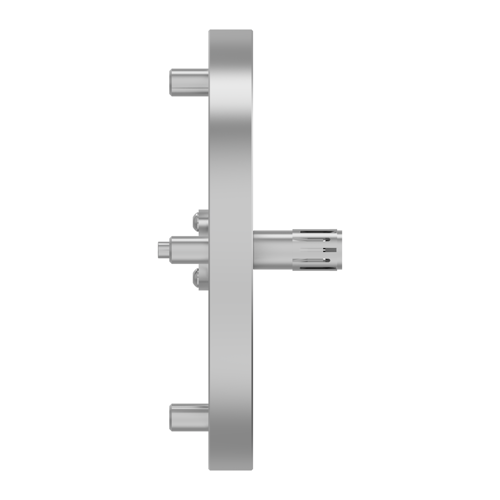

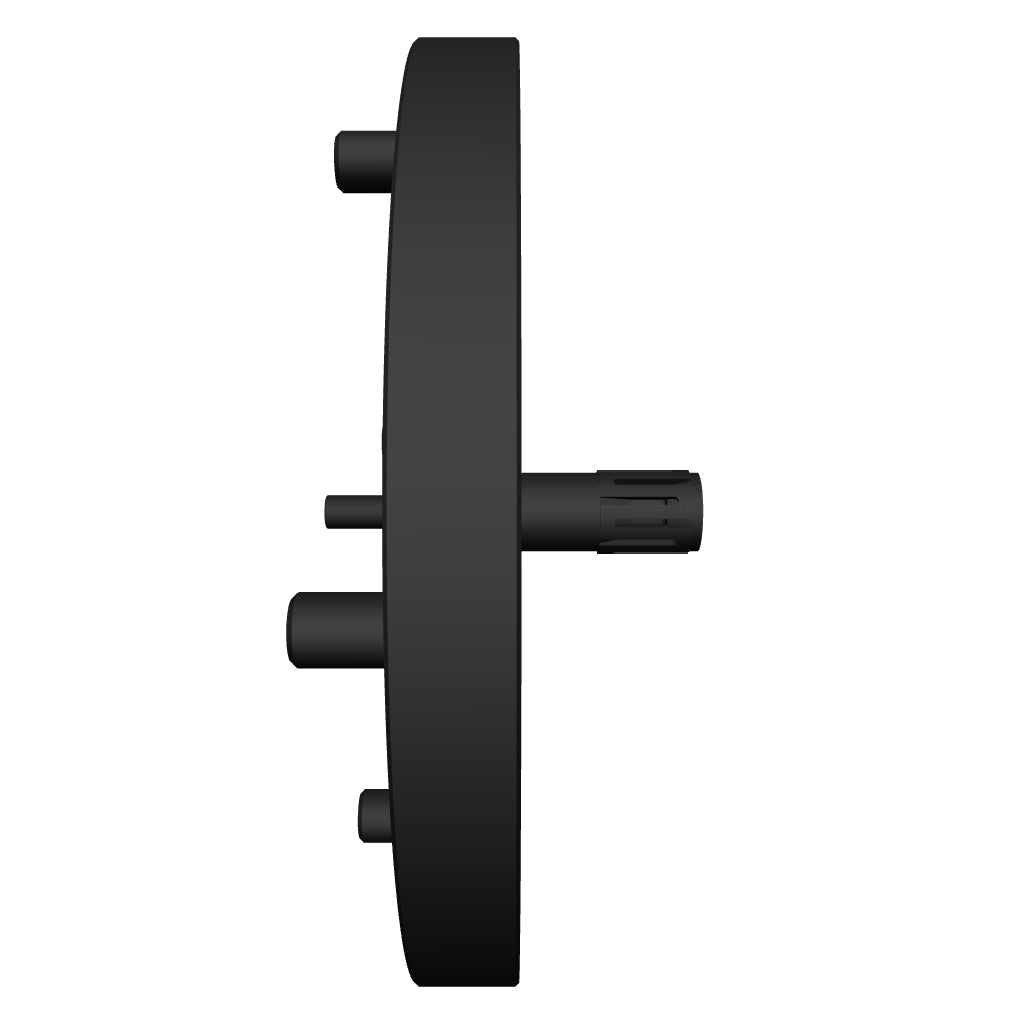

Standard Double Taper Chuck – Short Series. Model DTNS-2-DB10. Draw bar operation. Customer piece part grip diameter 0.9375–2 in.
Dimensions
- A Grip diameter
- Min 0.9375 – Max 2 in
- B Length
- 1 in
- Actuation
- Draw bar operation
- C
- 0.875 in
- D
- 0.882 in
- E
- 1 in
- F Flange diameter
- 9.875 in
- G
- 1.813 in
- H
- 1.131 in
- J
- 3.75 in
- K
- (4) .625-11 in
- L
- 0.875 in
- M
- 0.375 in
- N
- 0.693 in
- R
- 1.875 in
- S
- 0.28 in
- T
- 1.375 in
- U
- 2.25 in
- V
- 3.125 in
Standard Double Taper Chuck – Short Series. Model DTNS-2-DB10. Draw bar operation. Customer piece part grip diameter 0.9375–2 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,489.00
