Dimensions
- A Grip diameter
- Min 0.625 – Max 1.25 in
- B Length
- 0.75 in
- Actuation
- Draw bar operation
- C
- 0.5625 in
- D
- 0.554 in
- E
- 0.875 in
- F Flange diameter
- 6.25 in
- G
- 1.813 in
- H
- 0.885 in
- J
- 2.5 in
- K
- (4) .500-13 in
- L
- 0.5625 in
- M
- 0.313 in
- N
- 0.443 in
- R
- 1.875 in
- T
- 1.125 in
- U
- 1.875 in
- V
- 2.625 in

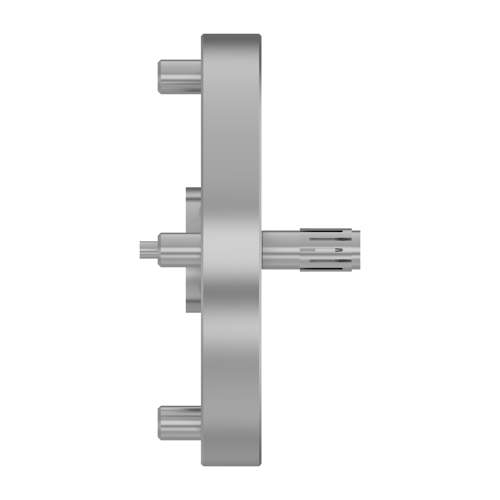

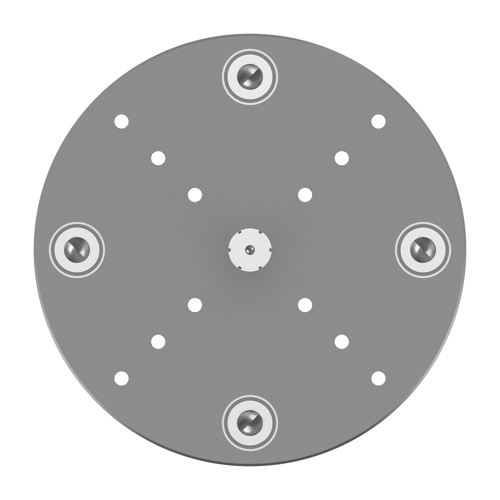

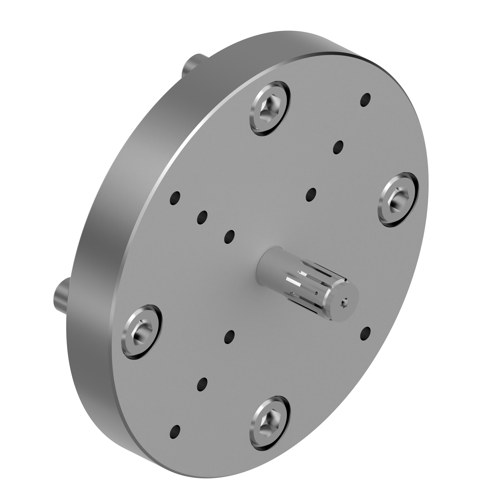

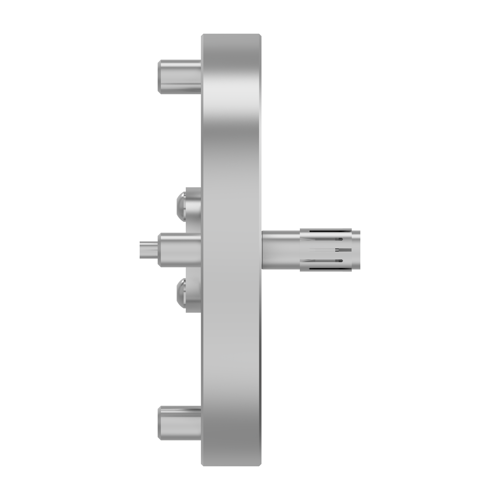

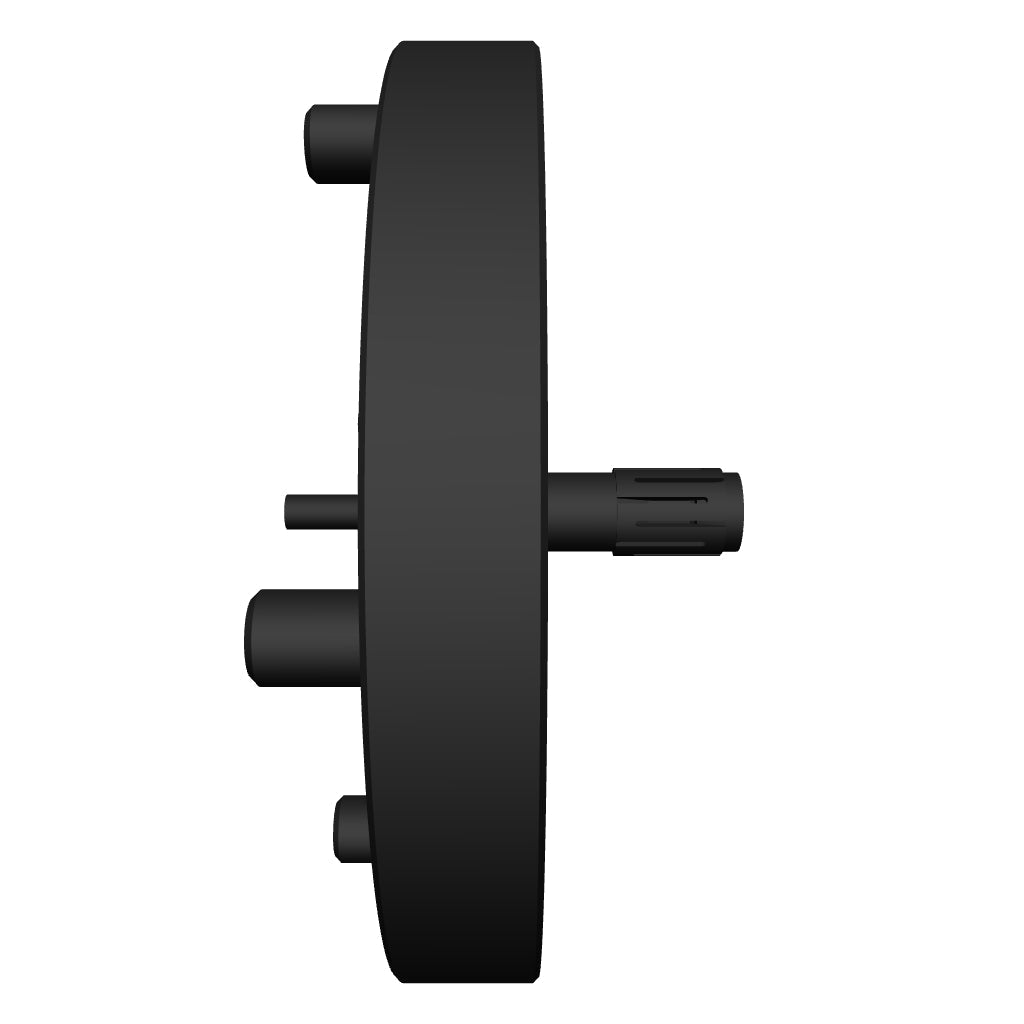

Standard Double Taper Chuck – Short Series. Model DTNS-0.5-DB6. Draw bar operation. Customer piece part grip diameter 0.625–1.25 in.
Dimensions
- A Grip diameter
- Min 0.625 – Max 1.25 in
- B Length
- 0.75 in
- Actuation
- Draw bar operation
- C
- 0.5625 in
- D
- 0.554 in
- E
- 0.875 in
- F Flange diameter
- 6.25 in
- G
- 1.813 in
- H
- 0.885 in
- J
- 2.5 in
- K
- (4) .500-13 in
- L
- 0.5625 in
- M
- 0.313 in
- N
- 0.443 in
- R
- 1.875 in
- T
- 1.125 in
- U
- 1.875 in
- V
- 2.625 in
Standard Double Taper Chuck – Short Series. Model DTNS-0.5-DB6. Draw bar operation. Customer piece part grip diameter 0.625–1.25 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $846.00
