Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4.5 in
- Actuation
- Draw bar operation
- C
- 6 in
- D
- 1.129 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 2.25 in
- H
- 2.12 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 6 in
- M
- 1.125 in
- N
- 5.224 in
- P
- 4 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4 in
- U
- 4.875 in
- V
- 5.75 in

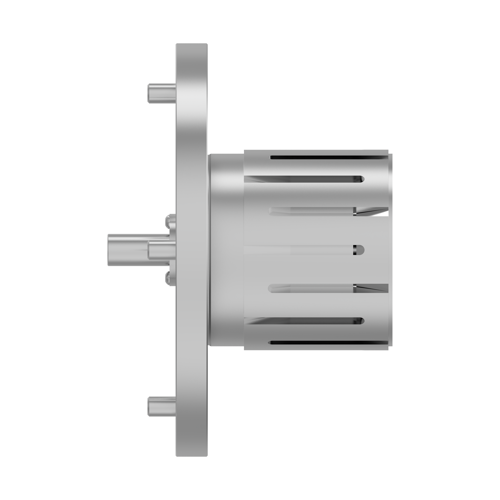

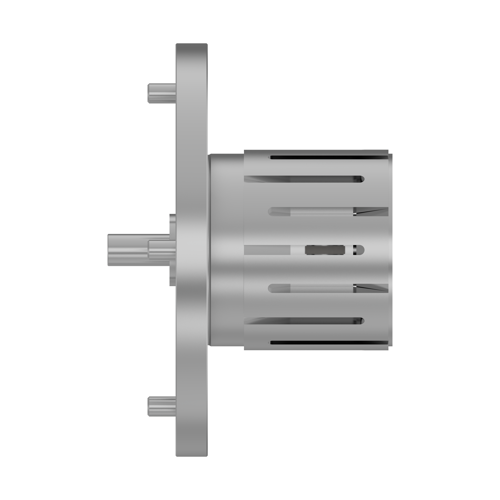

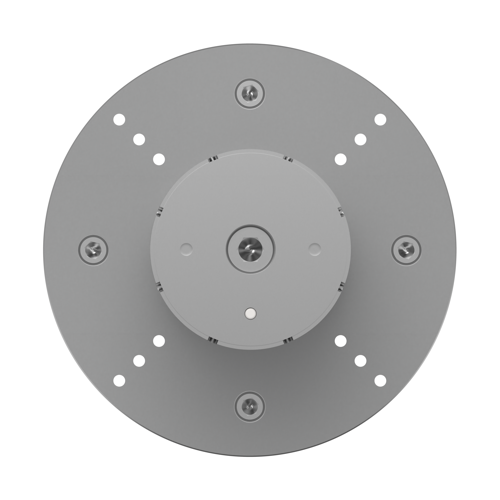

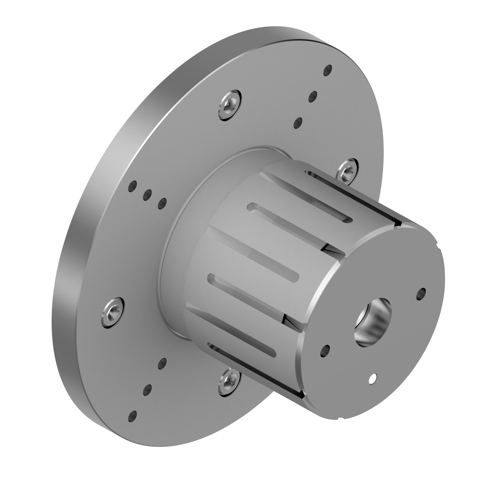

Standard Double Taper Chuck – Long Series. Model DTNL-6-DB13. Draw bar operation. Customer piece part grip diameter 6.25–13 in.
Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4.5 in
- Actuation
- Draw bar operation
- C
- 6 in
- D
- 1.129 in
- E
- 1 in
- F Flange diameter
- 12.875 in
- G
- 2.25 in
- H
- 2.12 in
- J
- 4.875 in
- K
- (4) .625-11 in
- L
- 6 in
- M
- 1.125 in
- N
- 5.224 in
- P
- 4 in
- Q
- 0.375 in
- R
- 2.375 in
- S
- 0.88 in
- T
- 4 in
- U
- 4.875 in
- V
- 5.75 in
Standard Double Taper Chuck – Long Series. Model DTNL-6-DB13. Draw bar operation. Customer piece part grip diameter 6.25–13 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $3,201.00
