Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- Actuation
- Draw bar operation
- C
- 0.6875 in
- D
- 0.695 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.188 in
- H
- 1.116 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 0.6875 in
- M
- 0.344 in
- N
- 0.505 in
- R
- 1.25 in
- S
- 0.19 in
- T
- 0.75 in
- U
- 1.25 in
- V
- 1.75 in

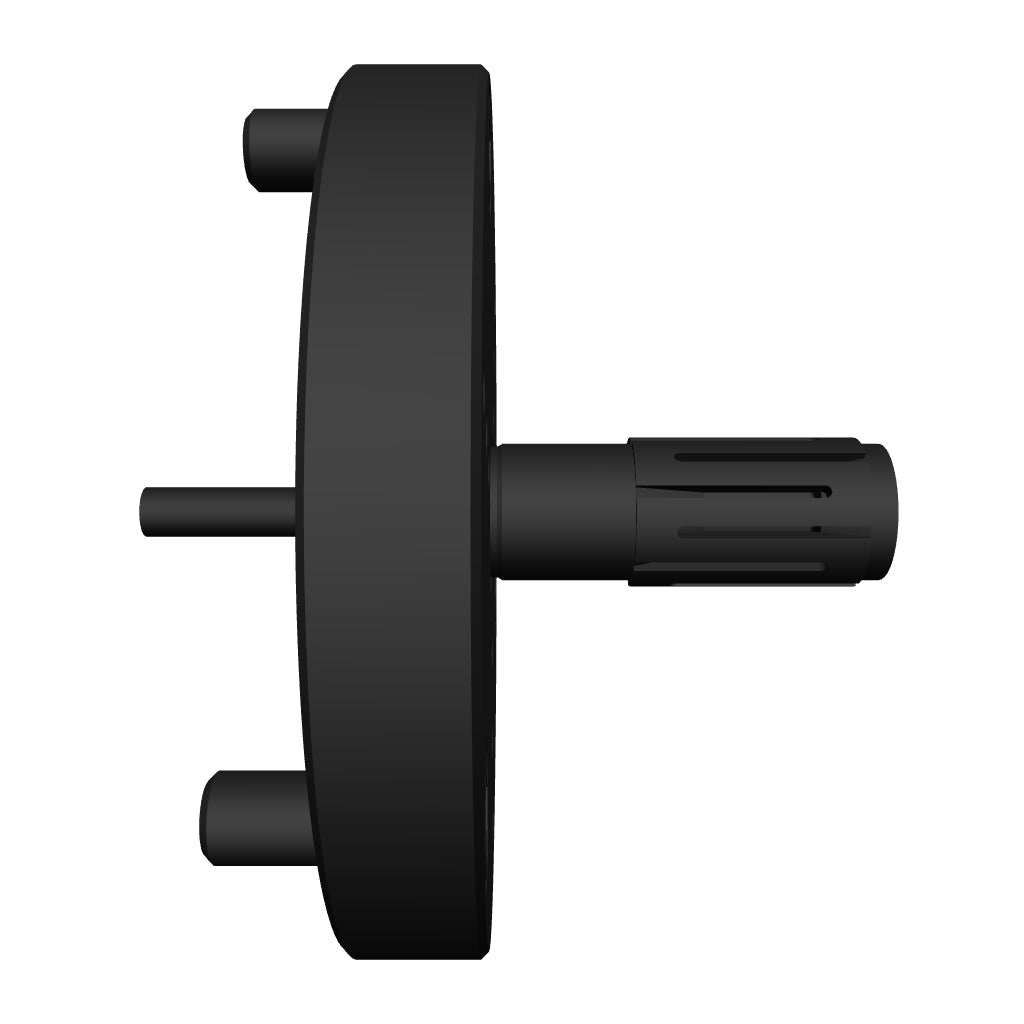

Standard Double Taper Chuck – Long Series. Model DTNL-1-DB4. Draw bar operation. Customer piece part grip diameter 0.75–1.5 in.
Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- Actuation
- Draw bar operation
- C
- 0.6875 in
- D
- 0.695 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.188 in
- H
- 1.116 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 0.6875 in
- M
- 0.344 in
- N
- 0.505 in
- R
- 1.25 in
- S
- 0.19 in
- T
- 0.75 in
- U
- 1.25 in
- V
- 1.75 in
Standard Double Taper Chuck – Long Series. Model DTNL-1-DB4. Draw bar operation. Customer piece part grip diameter 0.75–1.5 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $701.00
