Dimensions
- A Grip diameter
- Min 0.625 – Max 1.25 in
- B Length
- 1 in
- Actuation
- Draw bar operation
- C
- 0.5625 in
- D
- 0.565 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.188 in
- H
- 1.124 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 0.5625 in
- M
- 0.313 in
- N
- 0.442 in
- R
- 1.25 in
- T
- 0.75 in
- U
- 1.25 in
- V
- 1.75 in

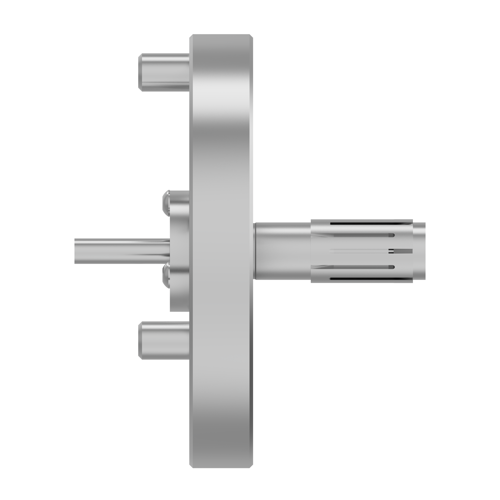

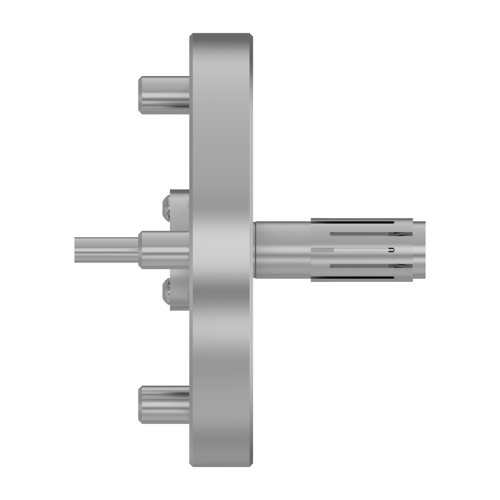

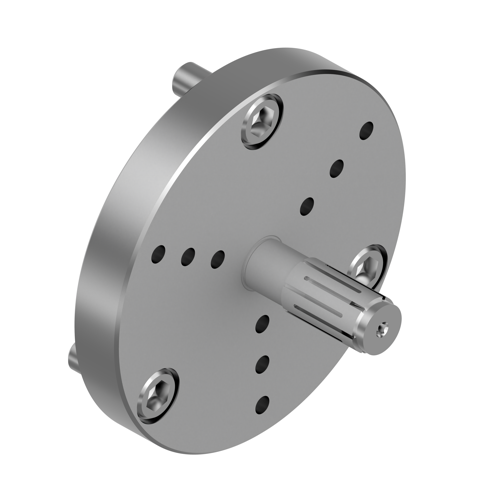

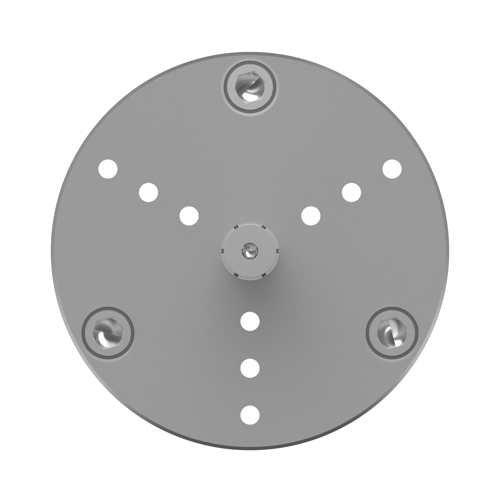

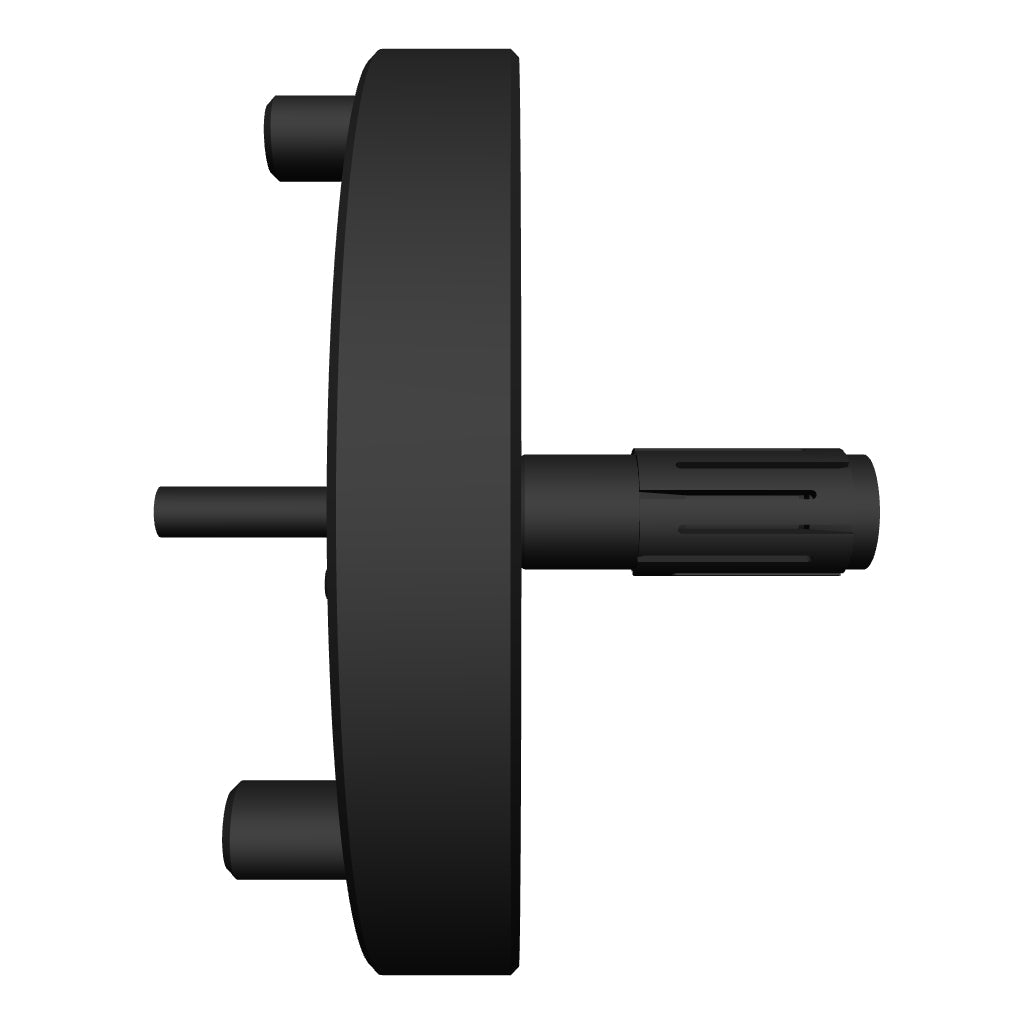

Standard Double Taper Chuck – Long Series. Model DTNL-0.5-DB4. Draw bar operation. Customer piece part grip diameter 0.625–1.25 in.
Dimensions
- A Grip diameter
- Min 0.625 – Max 1.25 in
- B Length
- 1 in
- Actuation
- Draw bar operation
- C
- 0.5625 in
- D
- 0.565 in
- E
- 0.625 in
- F Flange diameter
- 4.25 in
- G
- 1.188 in
- H
- 1.124 in
- J
- 1.75 in
- K
- (3) .375-16 in
- L
- 0.5625 in
- M
- 0.313 in
- N
- 0.442 in
- R
- 1.25 in
- T
- 0.75 in
- U
- 1.25 in
- V
- 1.75 in
Standard Double Taper Chuck – Long Series. Model DTNL-0.5-DB4. Draw bar operation. Customer piece part grip diameter 0.625–1.25 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $694.00
