Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4 in
- C
- 6 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 8.25 in
- G
- 6 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 3 in
- L
- 3.563 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 14.25 in
- S
- 3 in
- T
- 1.066 in
- U
- 4.626 in
- V
- 1.75 in

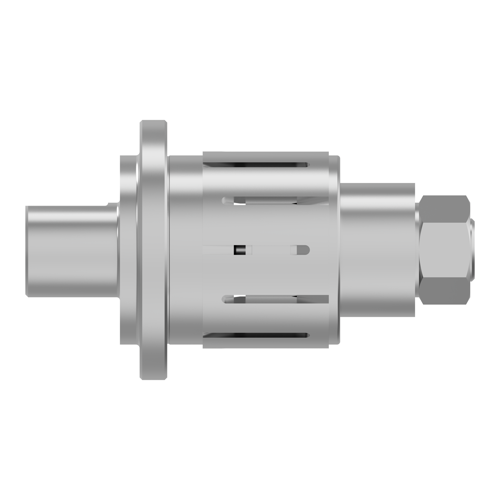

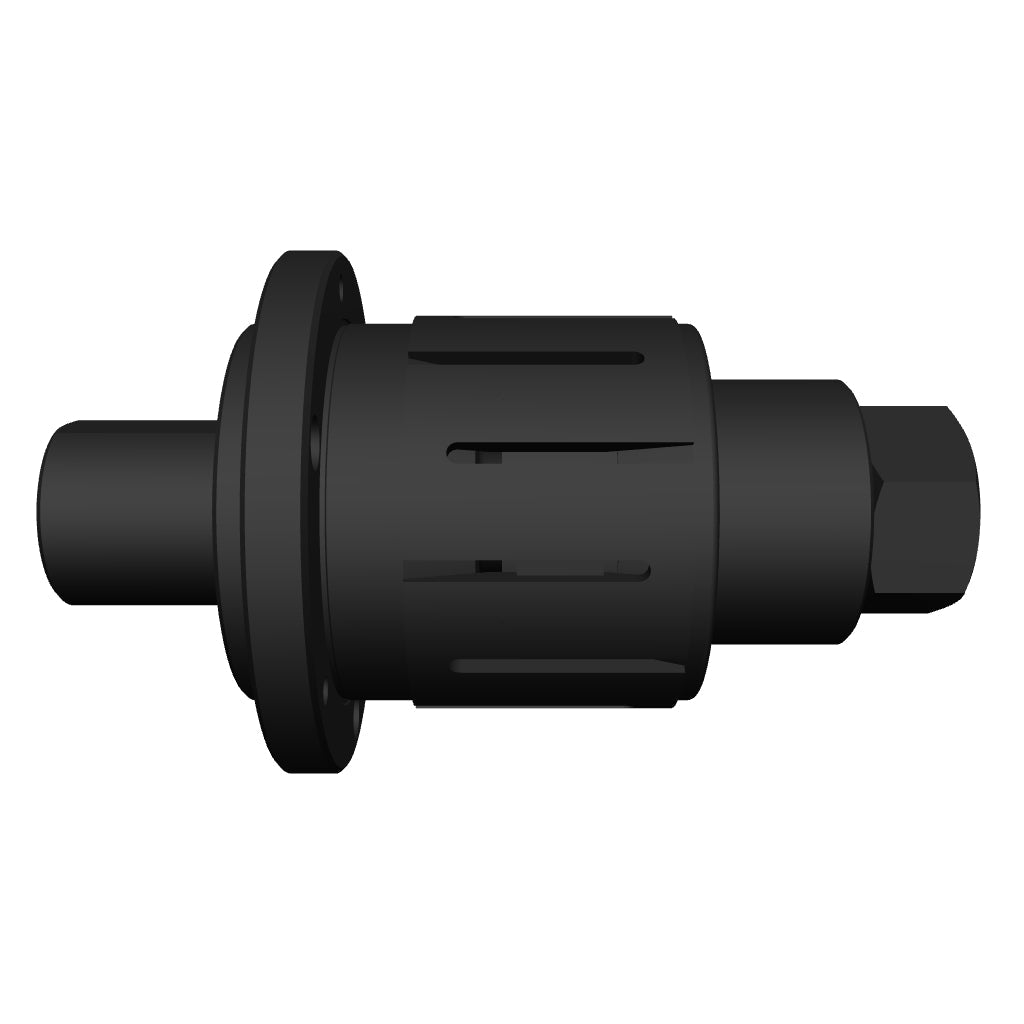

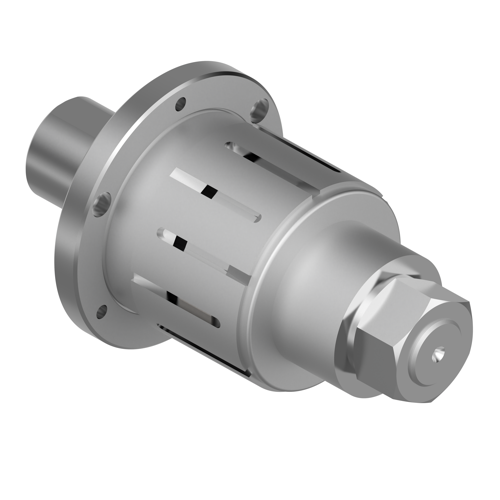

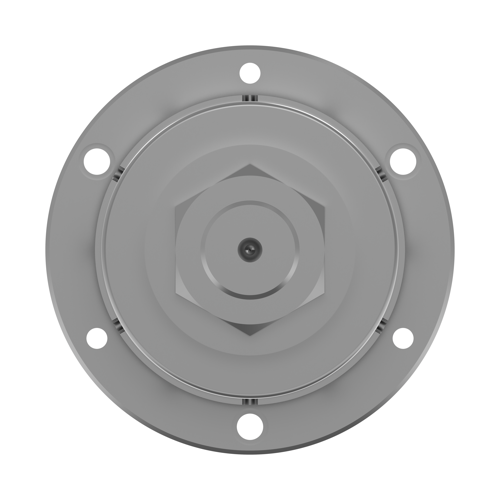

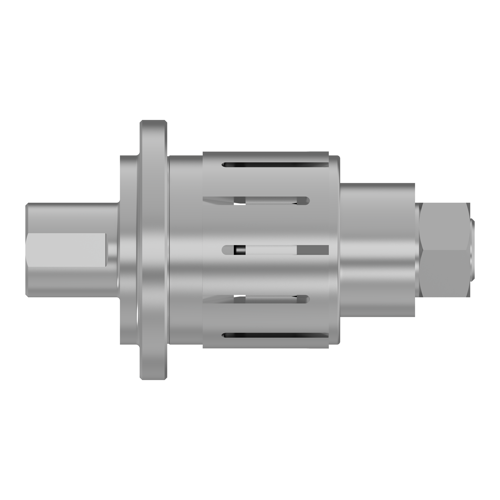

Standard Double Taper Mandrel – Short Series. Model DTMS-6. Customer piece part grip diameter 6.25–13 in.
Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4 in
- C
- 6 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 8.25 in
- G
- 6 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 3 in
- L
- 3.563 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 14.25 in
- S
- 3 in
- T
- 1.066 in
- U
- 4.626 in
- V
- 1.75 in
Standard Double Taper Mandrel – Short Series. Model DTMS-6. Customer piece part grip diameter 6.25–13 in.
