Dimensions
- A Grip diameter
- Min 4 – Max 10 in
- B Length
- 3 in
- C
- 3.75 in
- D
- 1.117 in
- E
- 0.75 in
- F Flange diameter
- 5.75 in
- G
- 3.75 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 2.5 in
- L
- 2.438 in
- M
- (3) .500-13 in
- N
- (3) .438-14 in
- P
- 3.464 in
- Q
- 3 in
- R
- 12.563 in
- S
- 2.5 in
- T
- 0.95 in
- U
- 4.571 in
- V
- 1.75 in

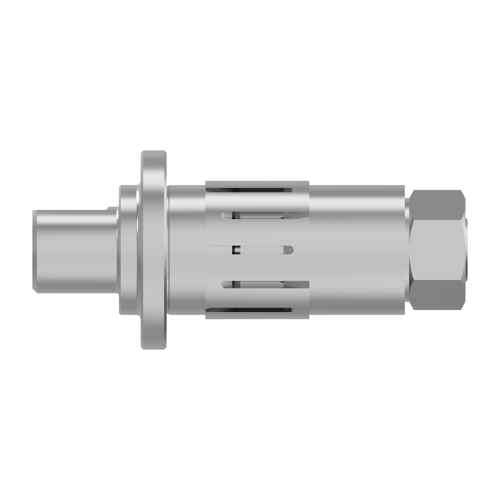

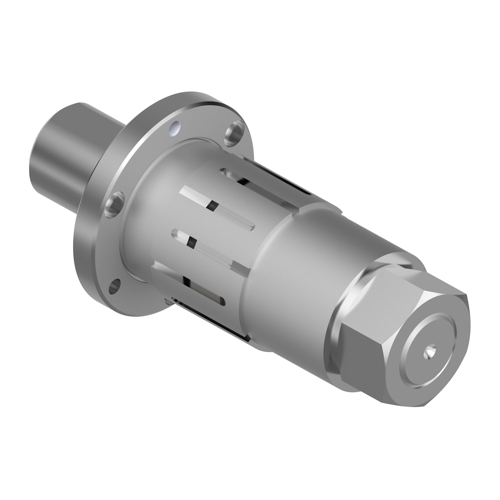

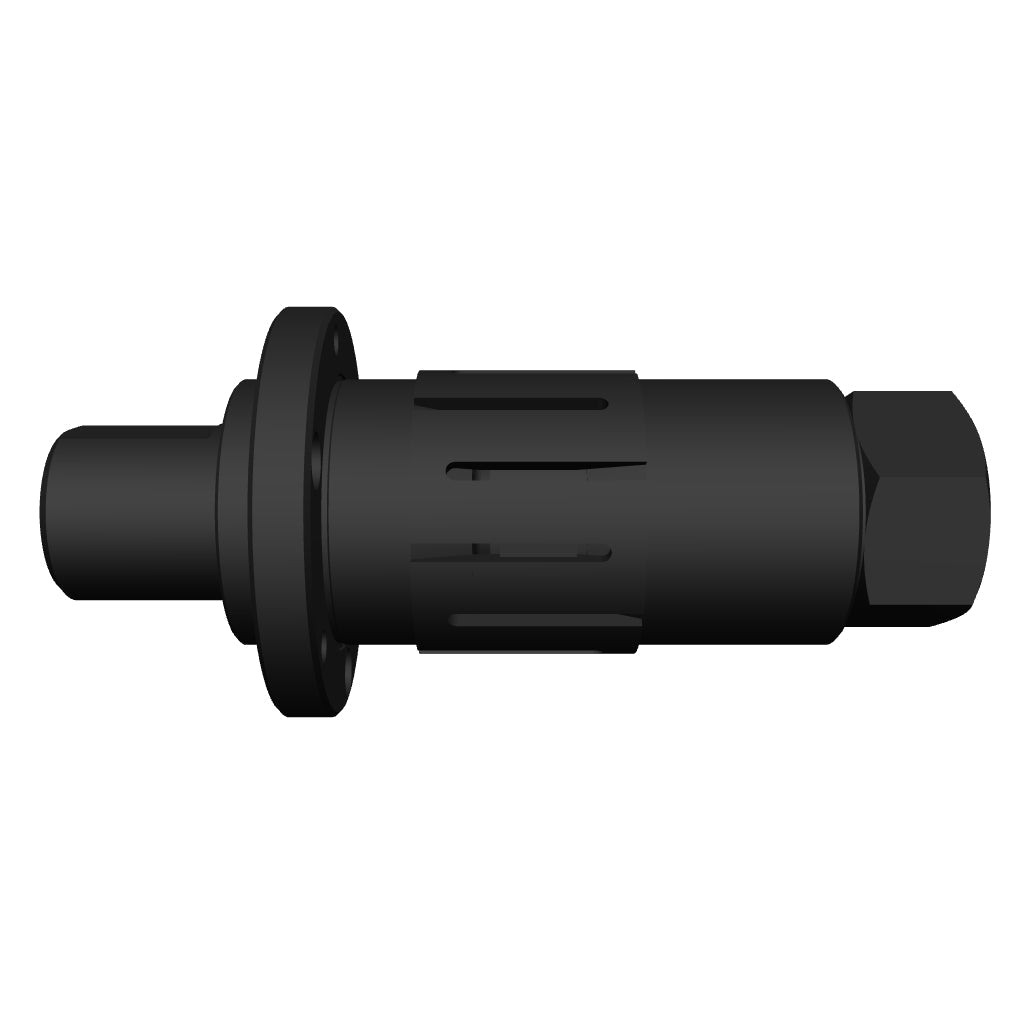

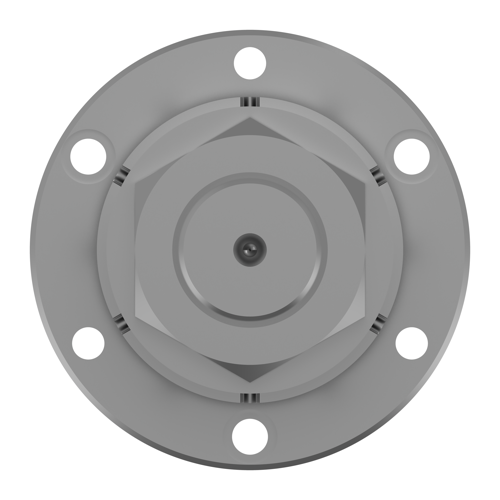

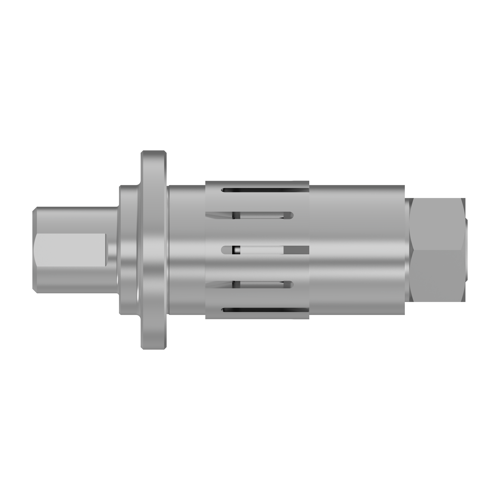

Standard Double Taper Mandrel – Short Series. Model DTMS-4.5. Customer piece part grip diameter 4–10 in.
Dimensions
- A Grip diameter
- Min 4 – Max 10 in
- B Length
- 3 in
- C
- 3.75 in
- D
- 1.117 in
- E
- 0.75 in
- F Flange diameter
- 5.75 in
- G
- 3.75 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 2.5 in
- L
- 2.438 in
- M
- (3) .500-13 in
- N
- (3) .438-14 in
- P
- 3.464 in
- Q
- 3 in
- R
- 12.563 in
- S
- 2.5 in
- T
- 0.95 in
- U
- 4.571 in
- V
- 1.75 in
Standard Double Taper Mandrel – Short Series. Model DTMS-4.5. Customer piece part grip diameter 4–10 in.
