Dimensions
- A Grip diameter
- Min 2.375 – Max 5.5 in
- B Length
- 2 in
- C
- 2.25 in
- D
- 1.107 in
- E
- 0.625 in
- F Flange diameter
- 4 in
- G
- 2.25 in
- H
- 0.563 in
- J
- 1.250-12 in
- K
- 2 in
- L
- 1.625 in
- M
- (3) .375-16 in
- N
- (3) .375-16 in
- P
- 2.02 in
- Q
- 1.75 in
- R
- 9.5 in
- S
- 1.75 in
- T
- 0.65 in
- U
- 3.205 in
- V
- 1.25 in

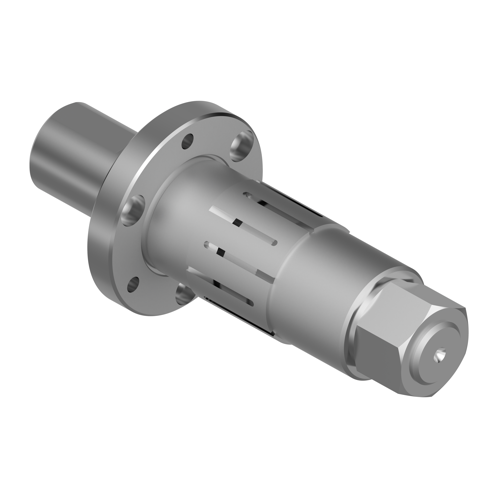

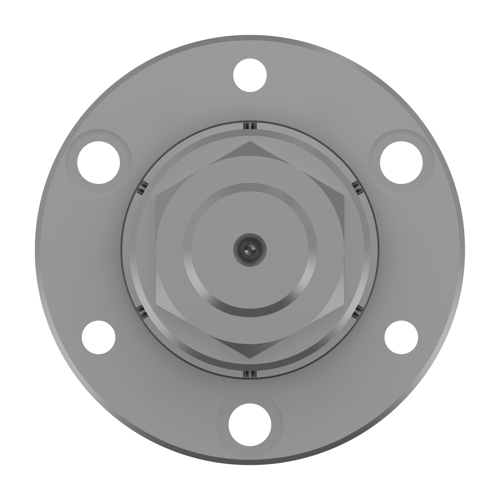

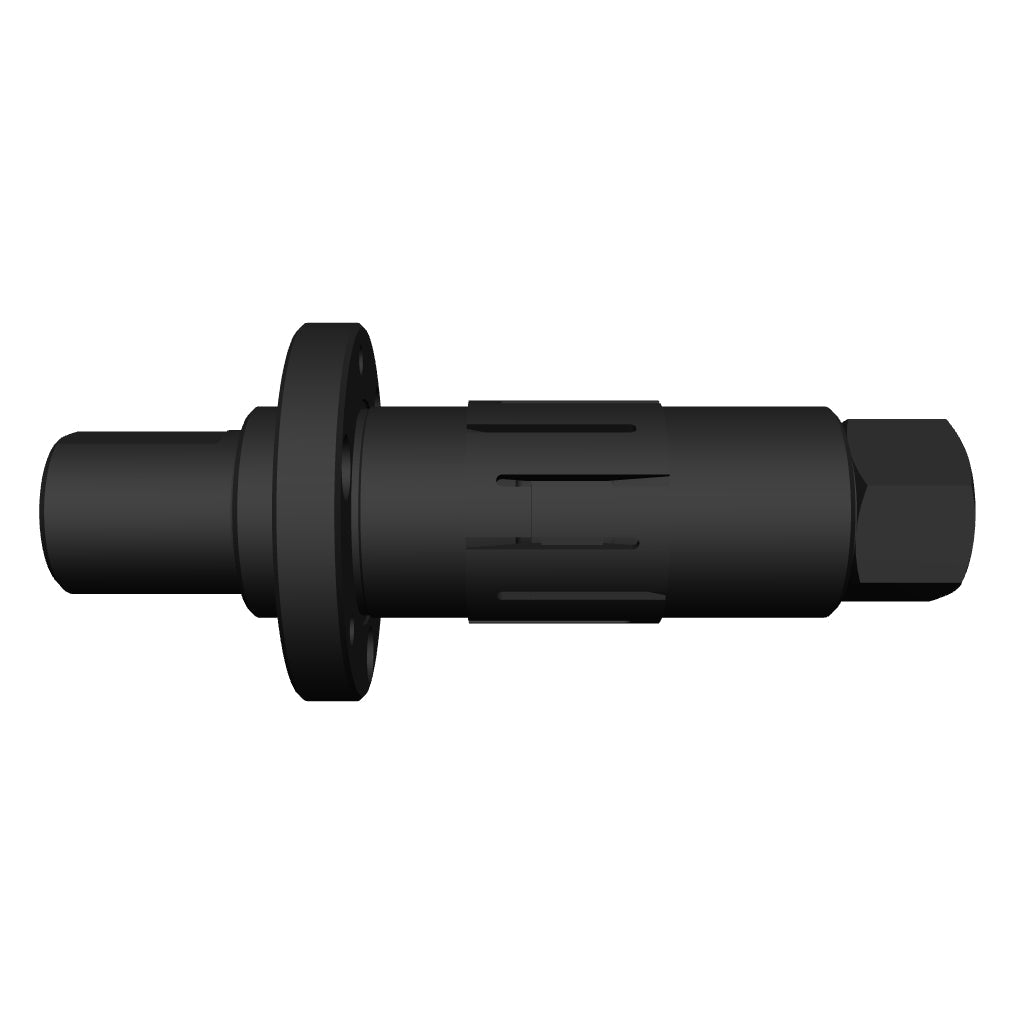

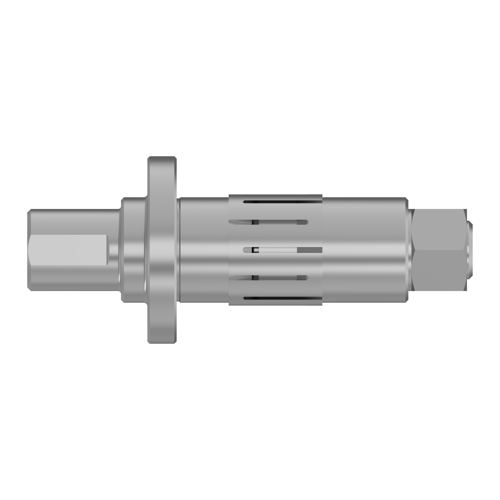

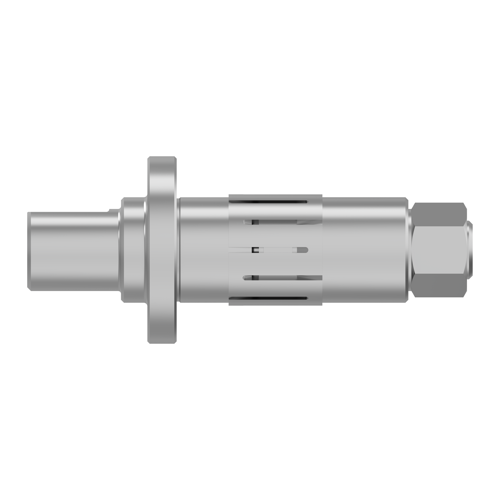

Standard Double Taper Mandrel – Short Series. Model DTMS-3.5. Customer piece part grip diameter 2.375–5.5 in.
Dimensions
- A Grip diameter
- Min 2.375 – Max 5.5 in
- B Length
- 2 in
- C
- 2.25 in
- D
- 1.107 in
- E
- 0.625 in
- F Flange diameter
- 4 in
- G
- 2.25 in
- H
- 0.563 in
- J
- 1.250-12 in
- K
- 2 in
- L
- 1.625 in
- M
- (3) .375-16 in
- N
- (3) .375-16 in
- P
- 2.02 in
- Q
- 1.75 in
- R
- 9.5 in
- S
- 1.75 in
- T
- 0.65 in
- U
- 3.205 in
- V
- 1.25 in
Standard Double Taper Mandrel – Short Series. Model DTMS-3.5. Customer piece part grip diameter 2.375–5.5 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,750.00
