Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.25 in
- C
- 1.25 in
- D
- 1.124 in
- E
- 0.563 in
- F Flange diameter
- 2.625 in
- G
- 1.25 in
- H
- 0.5 in
- J
- .625-18 in
- K
- 1.625 in
- L
- 0.969 in
- M
- (3) .250-20 in
- N
- (3) .250-20 in
- P
- 1.299 in
- Q
- 1.125 in
- R
- 6.813 in
- S
- 1.188 in
- T
- 0.53 in
- U
- 1.751 in
- V
- 0.75 in

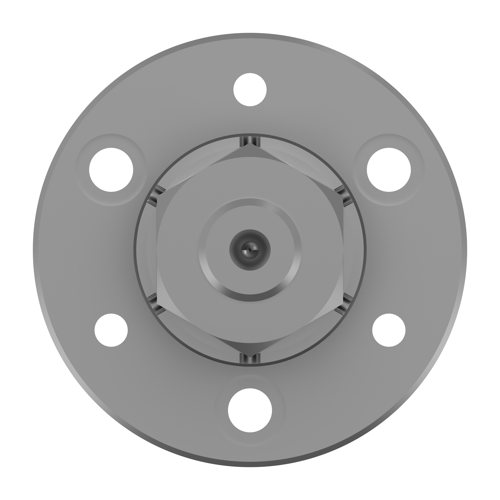

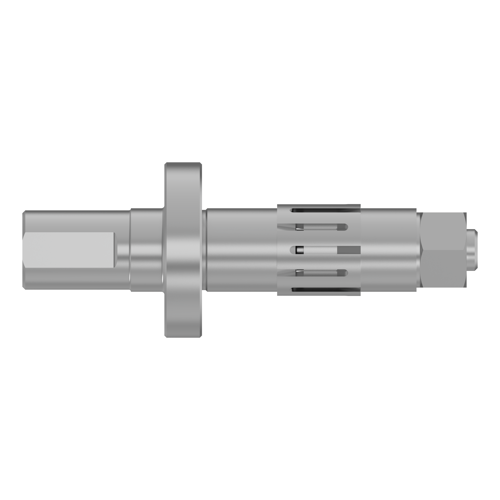

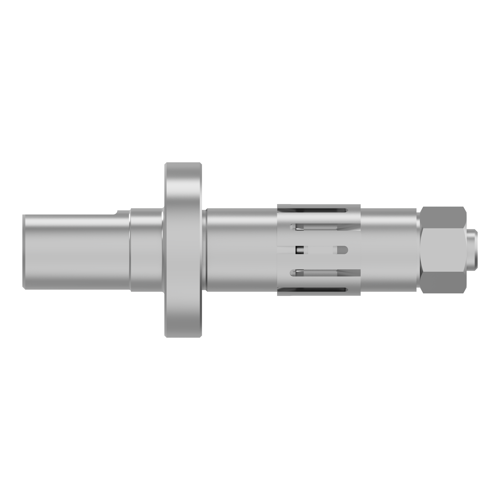

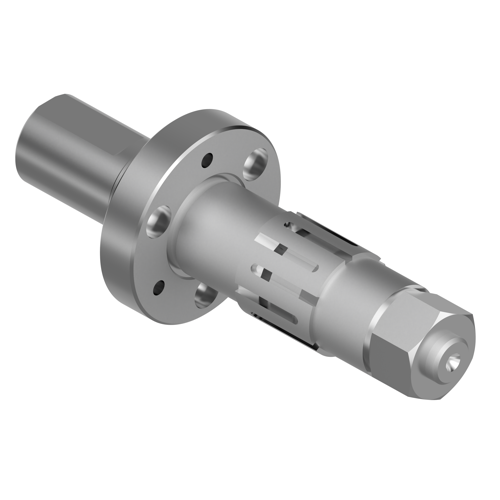

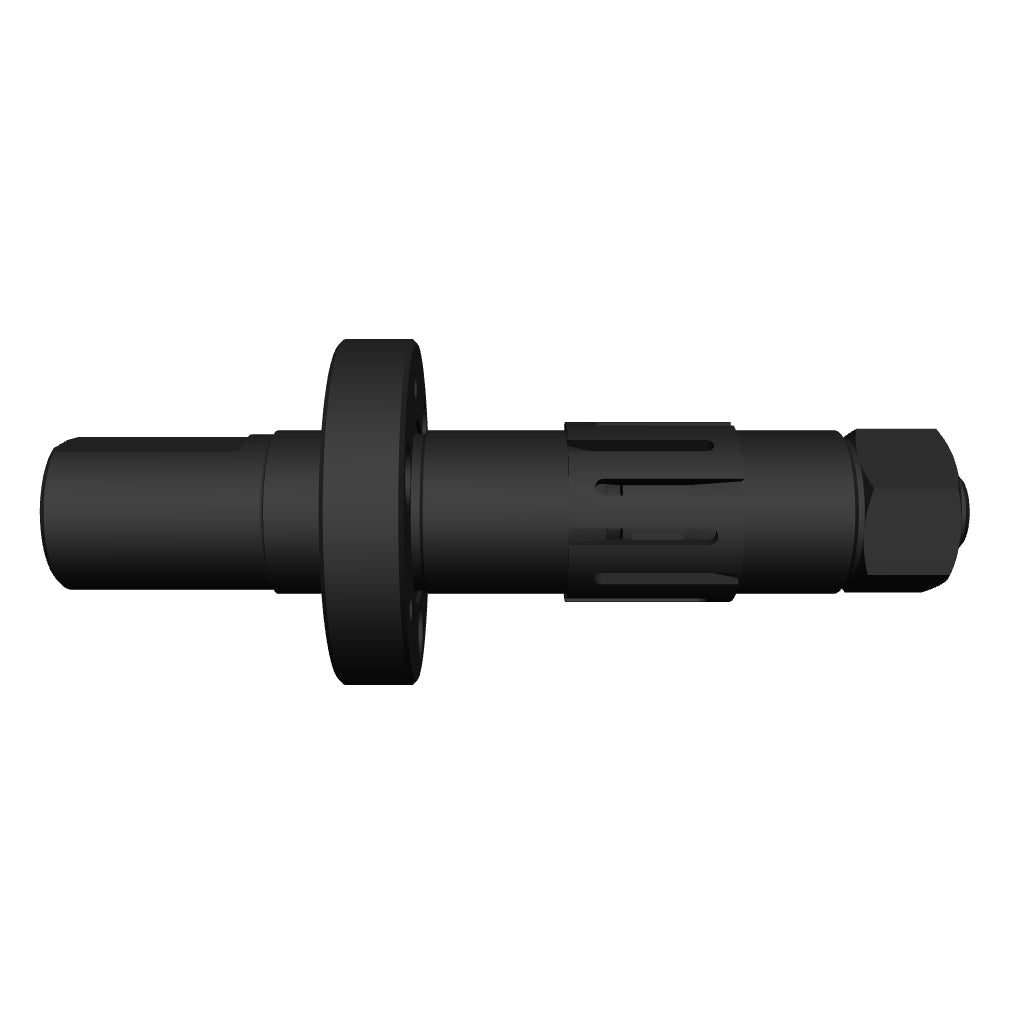

Standard Double Taper Mandrel – Short Series. Model DTMS-2.5. Customer piece part grip diameter 1.375–3 in.
Dimensions
- A Grip diameter
- Min 1.375 – Max 3 in
- B Length
- 1.25 in
- C
- 1.25 in
- D
- 1.124 in
- E
- 0.563 in
- F Flange diameter
- 2.625 in
- G
- 1.25 in
- H
- 0.5 in
- J
- .625-18 in
- K
- 1.625 in
- L
- 0.969 in
- M
- (3) .250-20 in
- N
- (3) .250-20 in
- P
- 1.299 in
- Q
- 1.125 in
- R
- 6.813 in
- S
- 1.188 in
- T
- 0.53 in
- U
- 1.751 in
- V
- 0.75 in
Standard Double Taper Mandrel – Short Series. Model DTMS-2.5. Customer piece part grip diameter 1.375–3 in.
