Dimensions
- A Grip diameter
- Min 0.938 – Max 2 in
- B Length
- 1 in
- C
- 0.875 in
- D
- 0.872 in
- E
- 0.5 in
- F Flange diameter
- 2.188 in
- G
- 0.875 in
- H
- 0.438 in
- J
- .375-24 in
- K
- 1.5 in
- L
- 0.813 in
- M
- (3) .250-20 in
- N
- (3) .250-20 in
- P
- 0.793 in
- Q
- 0.688 in
- R
- 5.125 in
- S
- 0.813 in
- T
- 0.433 in
- U
- 0.815 in
- V
- 0.5 in

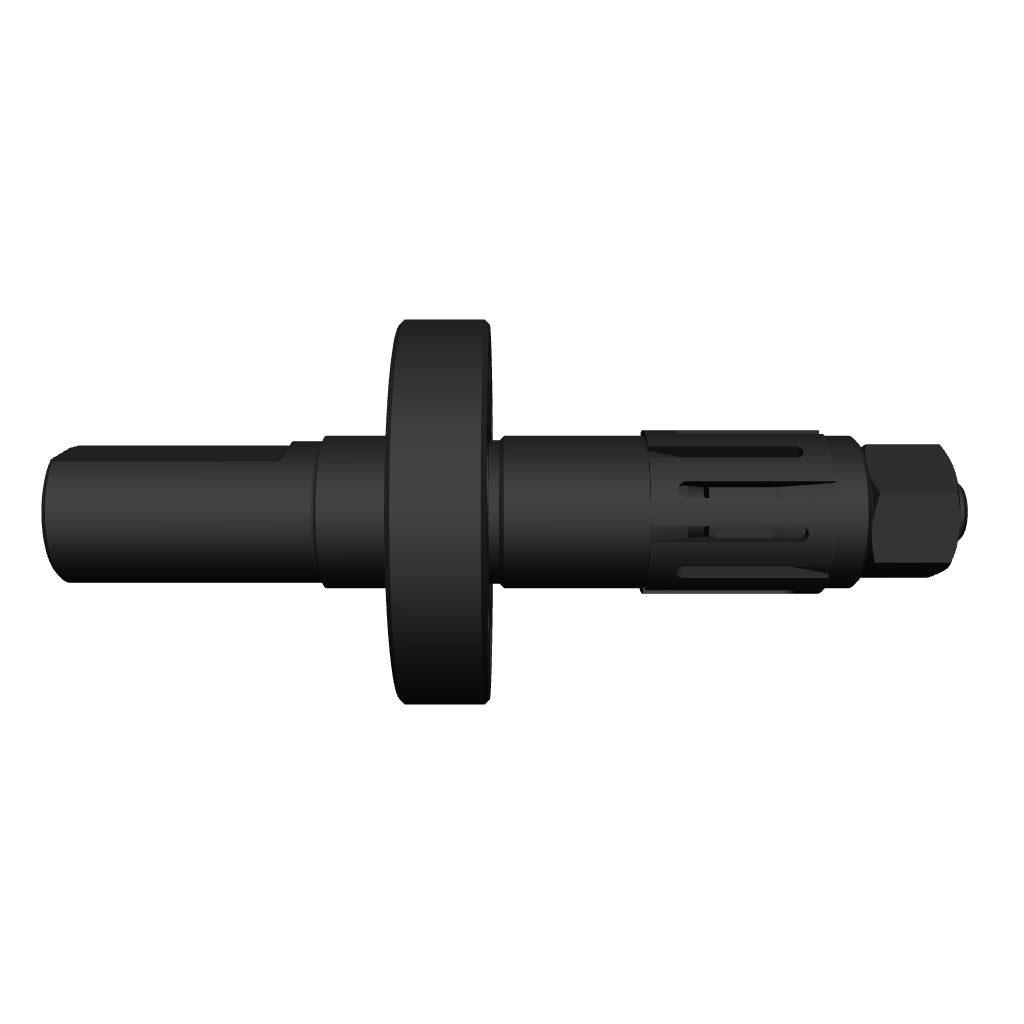

Standard Double Taper Mandrel – Short Series. Model DTMS-2. Customer piece part grip diameter 0.938–2 in.
Dimensions
- A Grip diameter
- Min 0.938 – Max 2 in
- B Length
- 1 in
- C
- 0.875 in
- D
- 0.872 in
- E
- 0.5 in
- F Flange diameter
- 2.188 in
- G
- 0.875 in
- H
- 0.438 in
- J
- .375-24 in
- K
- 1.5 in
- L
- 0.813 in
- M
- (3) .250-20 in
- N
- (3) .250-20 in
- P
- 0.793 in
- Q
- 0.688 in
- R
- 5.125 in
- S
- 0.813 in
- T
- 0.433 in
- U
- 0.815 in
- V
- 0.5 in
Standard Double Taper Mandrel – Short Series. Model DTMS-2. Customer piece part grip diameter 0.938–2 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,392.00
