Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 5 in
- C
- 8 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 10.25 in
- G
- 8 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 4 in
- L
- 4.625 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 15.25 in
- S
- 4 in
- T
- 1.21 in
- U
- 3.626 in
- V
- 1.75 in

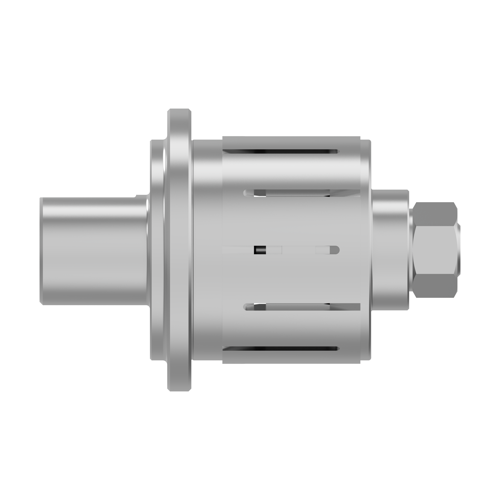

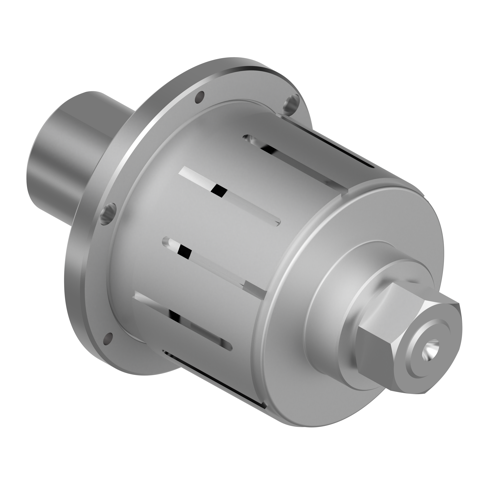

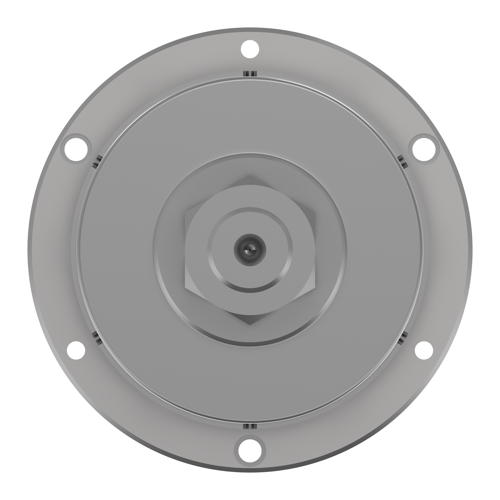

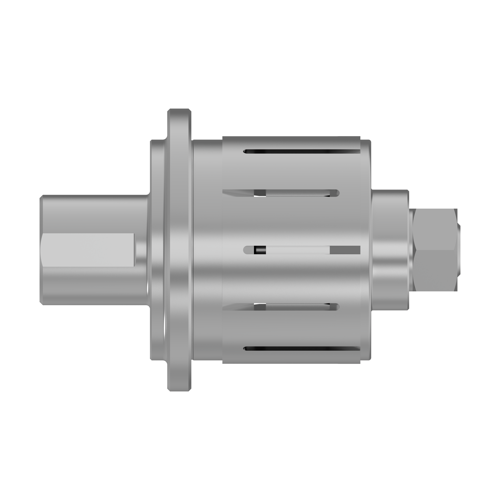

Standard Double Taper Mandrel – Long Series. Model DTML-8. Customer piece part grip diameter 8.25–17 in.
Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 5 in
- C
- 8 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 10.25 in
- G
- 8 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 4 in
- L
- 4.625 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 15.25 in
- S
- 4 in
- T
- 1.21 in
- U
- 3.626 in
- V
- 1.75 in
Standard Double Taper Mandrel – Long Series. Model DTML-8. Customer piece part grip diameter 8.25–17 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $3,463.00
