Dimensions
- A Grip diameter
- Min 4.75 – Max 11 in
- B Length
- 4 in
- C
- 4.5 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 6.75 in
- G
- 4.5 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 3 in
- L
- 2.844 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 13.375 in
- S
- 3 in
- T
- 1.066 in
- U
- 3.751 in
- V
- 1.75 in

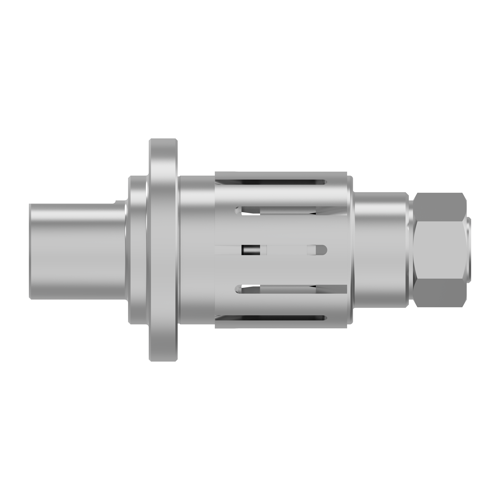

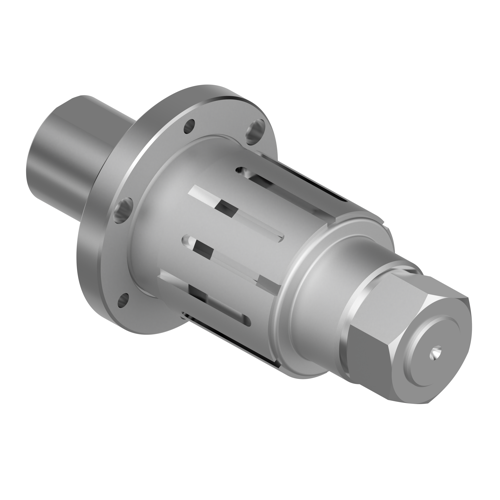

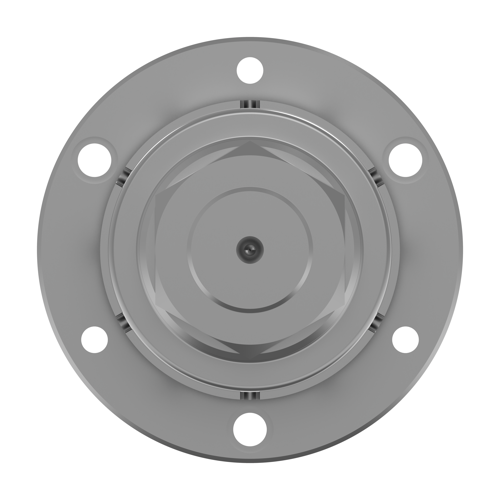

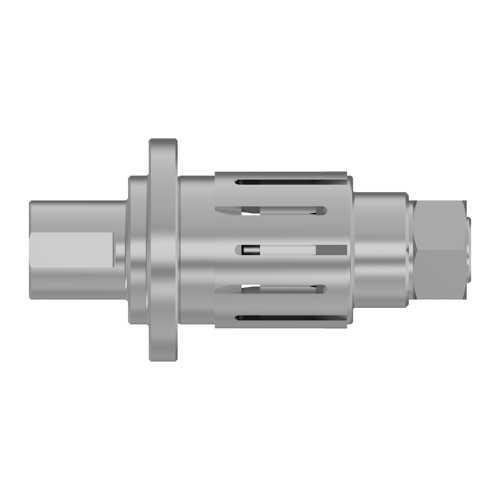

Standard Double Taper Mandrel – Long Series. Model DTML-5. Customer piece part grip diameter 4.75–11 in.
Dimensions
- A Grip diameter
- Min 4.75 – Max 11 in
- B Length
- 4 in
- C
- 4.5 in
- D
- 1.124 in
- E
- 0.875 in
- F Flange diameter
- 6.75 in
- G
- 4.5 in
- H
- 0.625 in
- J
- 2.000-12 in
- K
- 3 in
- L
- 2.844 in
- M
- (3) .500-13 in
- N
- (3) .500-13 in
- P
- 3.464 in
- Q
- 3 in
- R
- 13.375 in
- S
- 3 in
- T
- 1.066 in
- U
- 3.751 in
- V
- 1.75 in

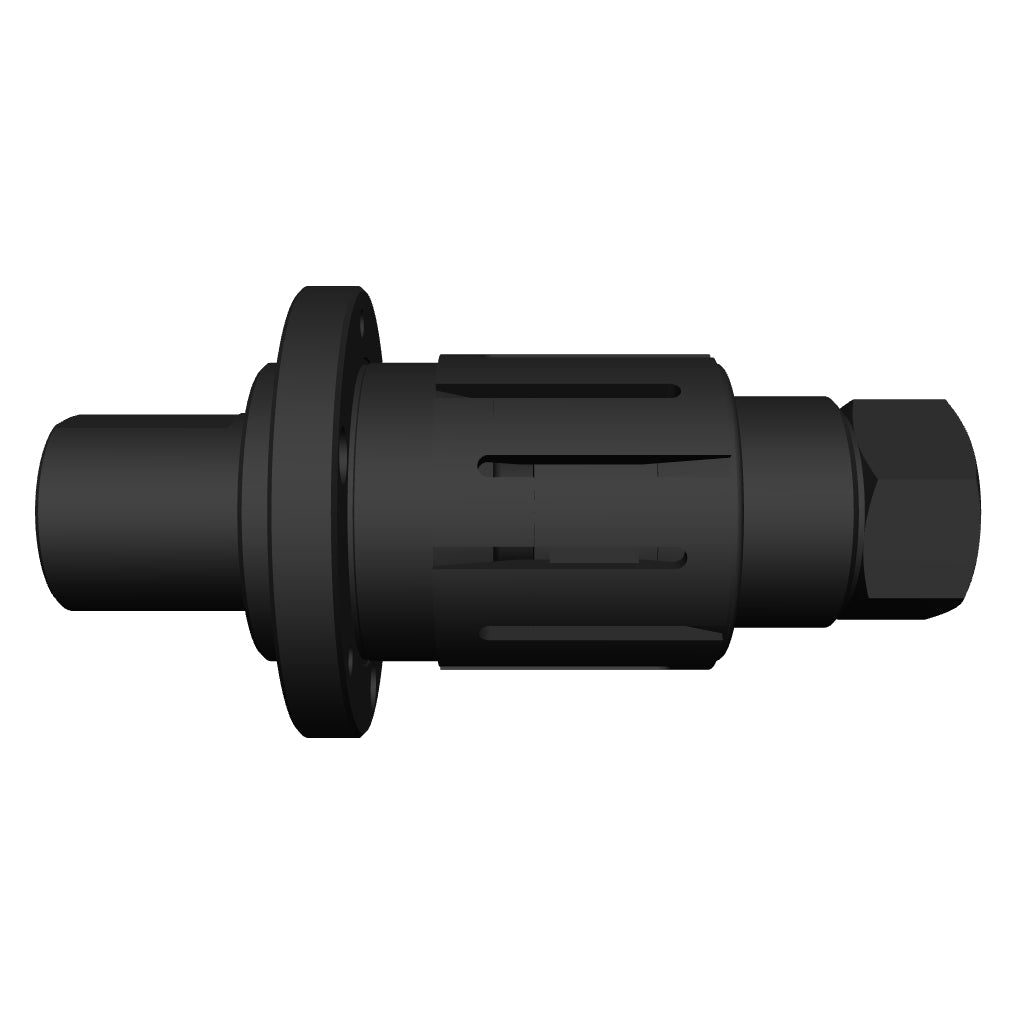

Standard Double Taper Mandrel – Long Series. Model DTML-5. Customer piece part grip diameter 4.75–11 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $2,329.00
