Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 3 in
- C
- 2.75 in
- D
- 1.124 in
- E
- 0.75 in
- F Flange diameter
- 4.875 in
- G
- 2.75 in
- H
- 0.563 in
- J
- 1.500-12 in
- K
- 2.25 in
- L
- 1.969 in
- M
- (3) .500-13 in
- N
- (3) .375-16 in
- P
- 2.598 in
- Q
- 2.25 in
- R
- 10.688 in
- S
- 2.25 in
- T
- 0.899 in
- U
- 3.001 in
- V
- 1.25 in

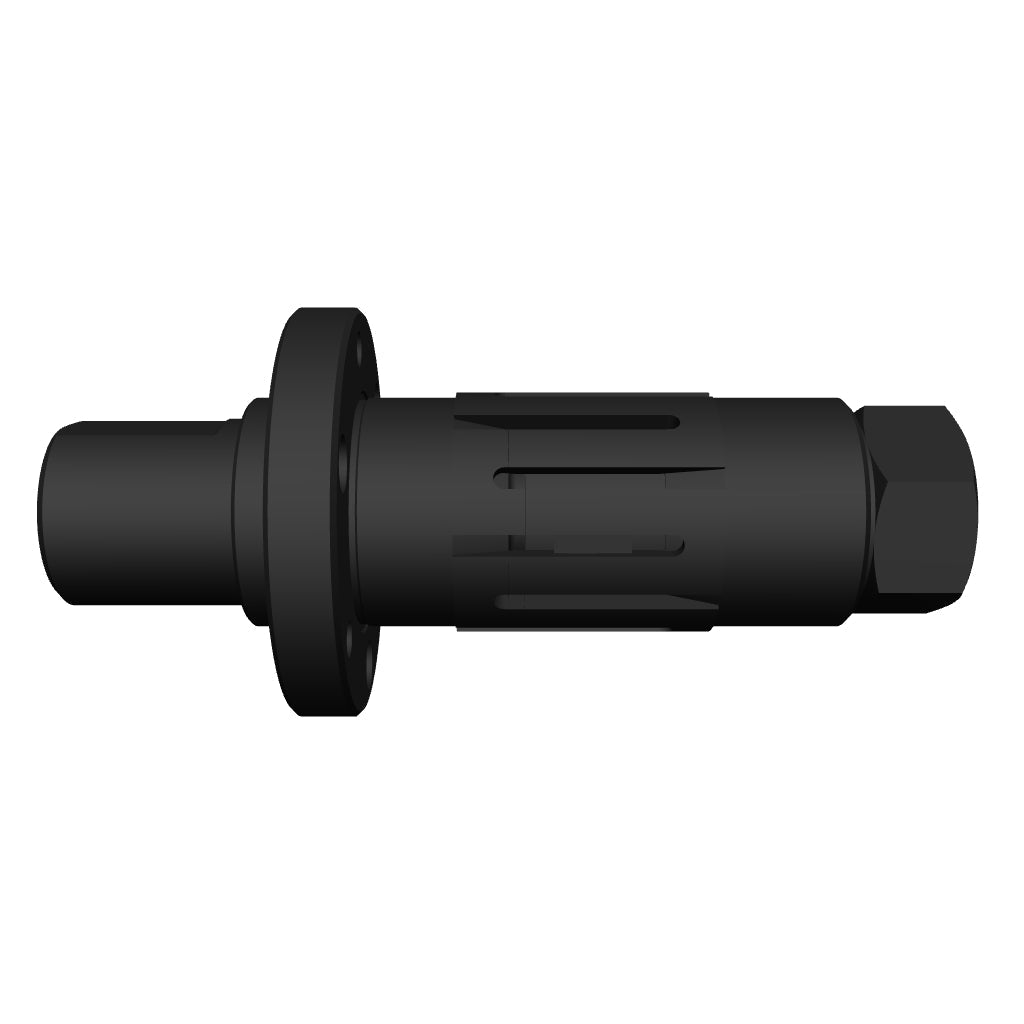

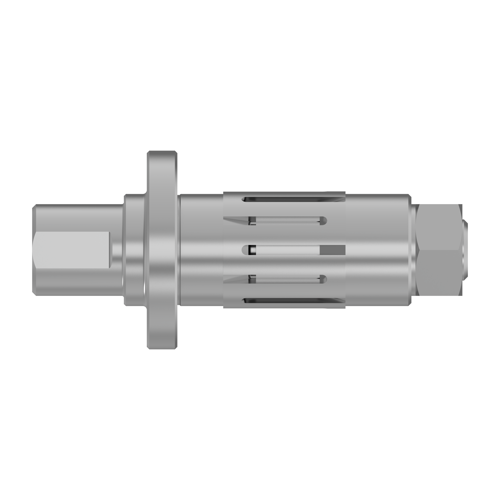

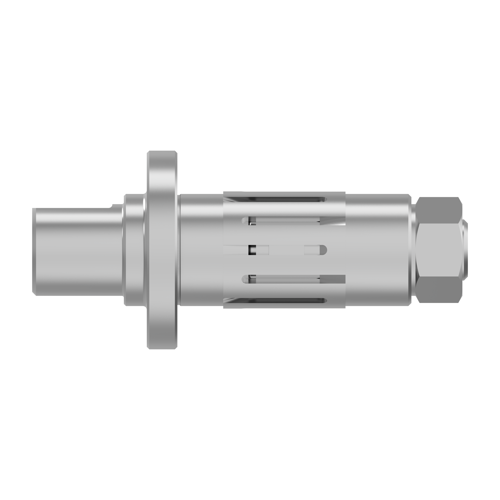

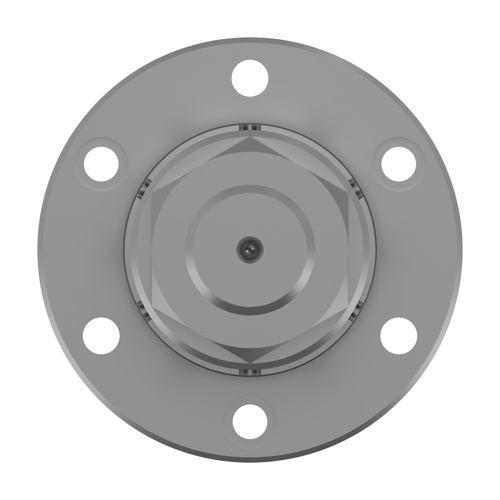

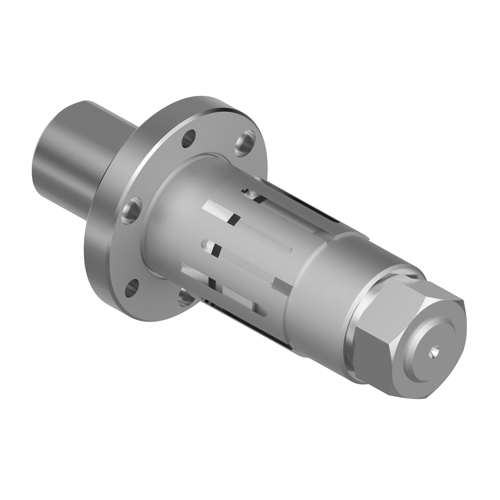

Standard Double Taper Mandrel – Long Series. Model DTML-4. Customer piece part grip diameter 2.875–7 in.
Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 3 in
- C
- 2.75 in
- D
- 1.124 in
- E
- 0.75 in
- F Flange diameter
- 4.875 in
- G
- 2.75 in
- H
- 0.563 in
- J
- 1.500-12 in
- K
- 2.25 in
- L
- 1.969 in
- M
- (3) .500-13 in
- N
- (3) .375-16 in
- P
- 2.598 in
- Q
- 2.25 in
- R
- 10.688 in
- S
- 2.25 in
- T
- 0.899 in
- U
- 3.001 in
- V
- 1.25 in
Standard Double Taper Mandrel – Long Series. Model DTML-4. Customer piece part grip diameter 2.875–7 in.
