Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 2 in
- C
- 1.5 in
- D
- 1.125 in
- E
- 0.625 in
- F Flange diameter
- 3.125 in
- G
- 1.5 in
- H
- 0.5 in
- J
- .625-18 in
- K
- 1.75 in
- L
- 1.188 in
- M
- (3) .375-16 in
- N
- (3) .375-16 in
- P
- 1.443 in
- Q
- 1.25 in
- R
- 7.25 in
- S
- 1.375 in
- T
- 0.693 in
- U
- 1.25 in
- V
- 0.813 in

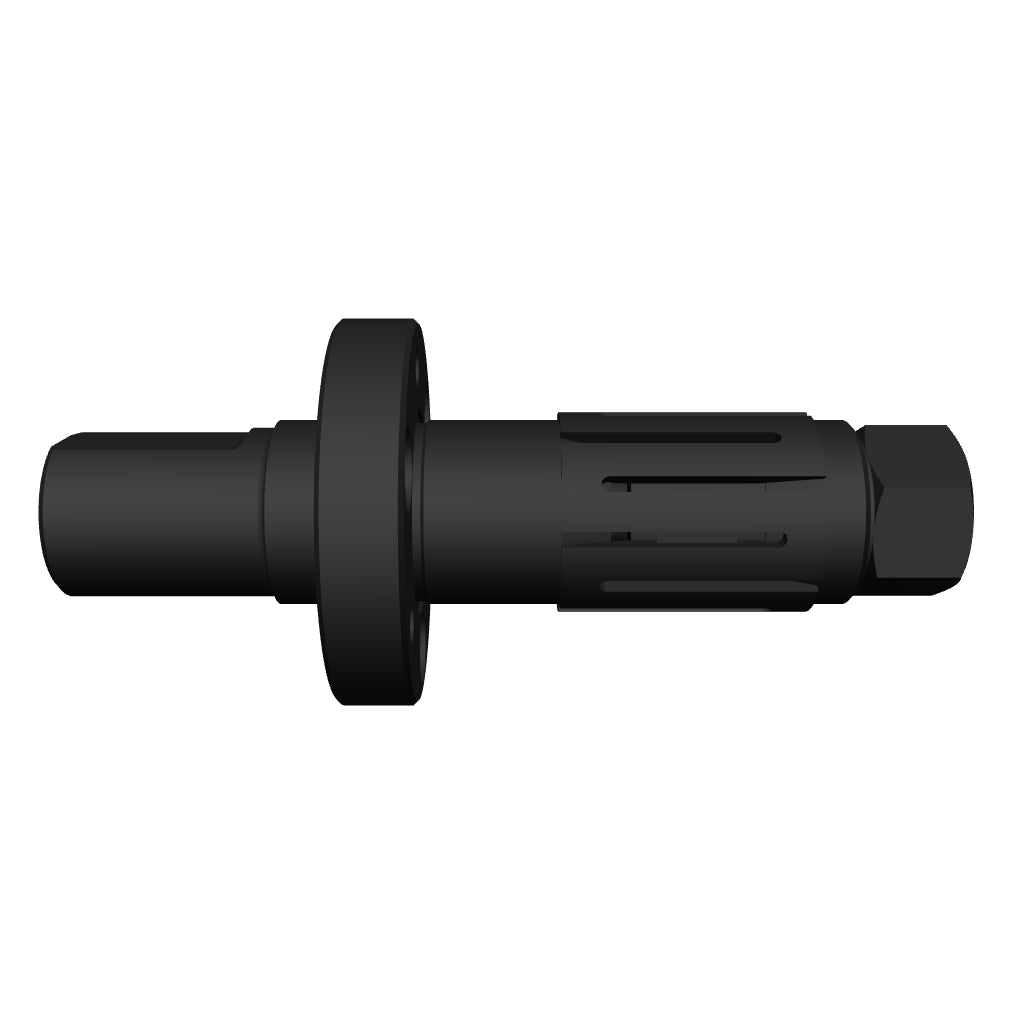

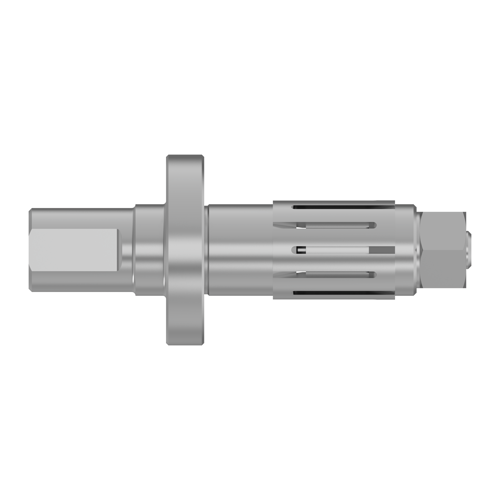

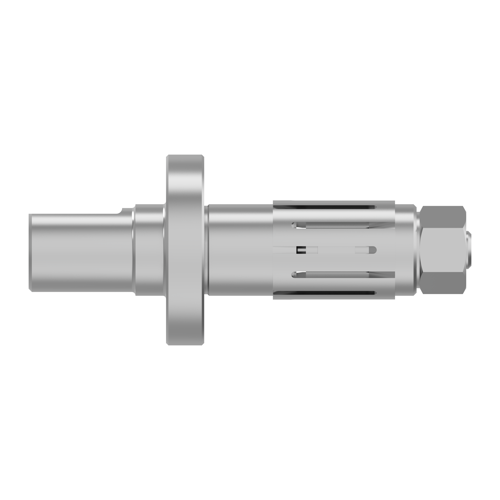

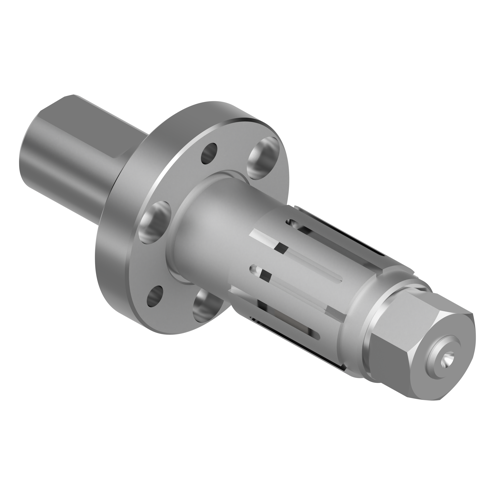

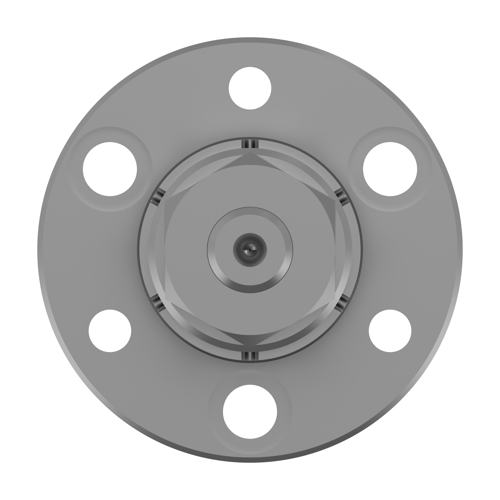

Standard Double Taper Mandrel – Long Series. Model DTML-3. Customer piece part grip diameter 1.625–4.25 in.
Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 2 in
- C
- 1.5 in
- D
- 1.125 in
- E
- 0.625 in
- F Flange diameter
- 3.125 in
- G
- 1.5 in
- H
- 0.5 in
- J
- .625-18 in
- K
- 1.75 in
- L
- 1.188 in
- M
- (3) .375-16 in
- N
- (3) .375-16 in
- P
- 1.443 in
- Q
- 1.25 in
- R
- 7.25 in
- S
- 1.375 in
- T
- 0.693 in
- U
- 1.25 in
- V
- 0.813 in
Standard Double Taper Mandrel – Long Series. Model DTML-3. Customer piece part grip diameter 1.625–4.25 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,626.00
