Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- C
- 0.6875 in
- D
- 0.686 in
- E
- 0.375 in
- F Flange diameter
- 1.875 in
- G
- 0.688 in
- H
- 0.375 in
- J
- .313-24 in
- K
- 1.25 in
- L
- 0.656 in
- M
- (3) .250-20 in
- N
- (3) #10-24 in
- P
- 0.577 in
- Q
- 0.5 in
- R
- 4.25 in
- S
- 0.625 in
- T
- 0.272 in
- U
- 0.439 in
- V
- 0.313 in

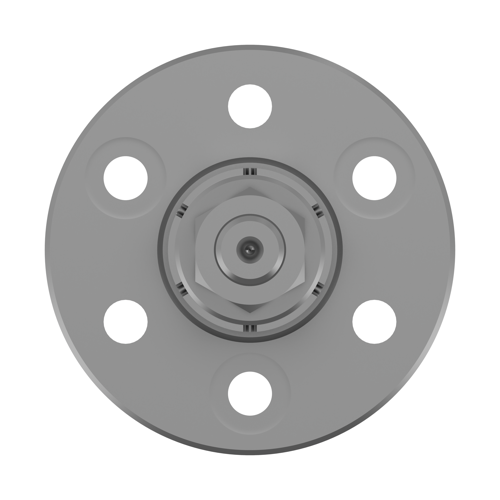

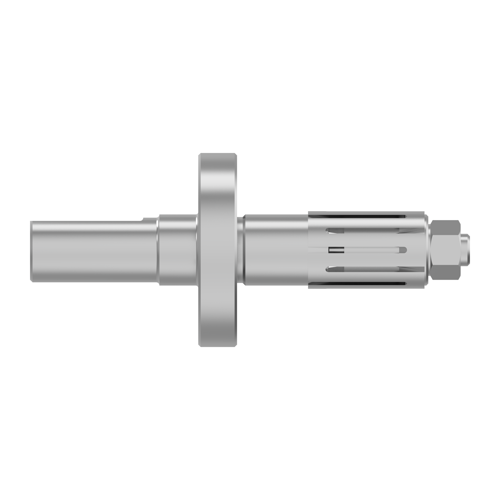

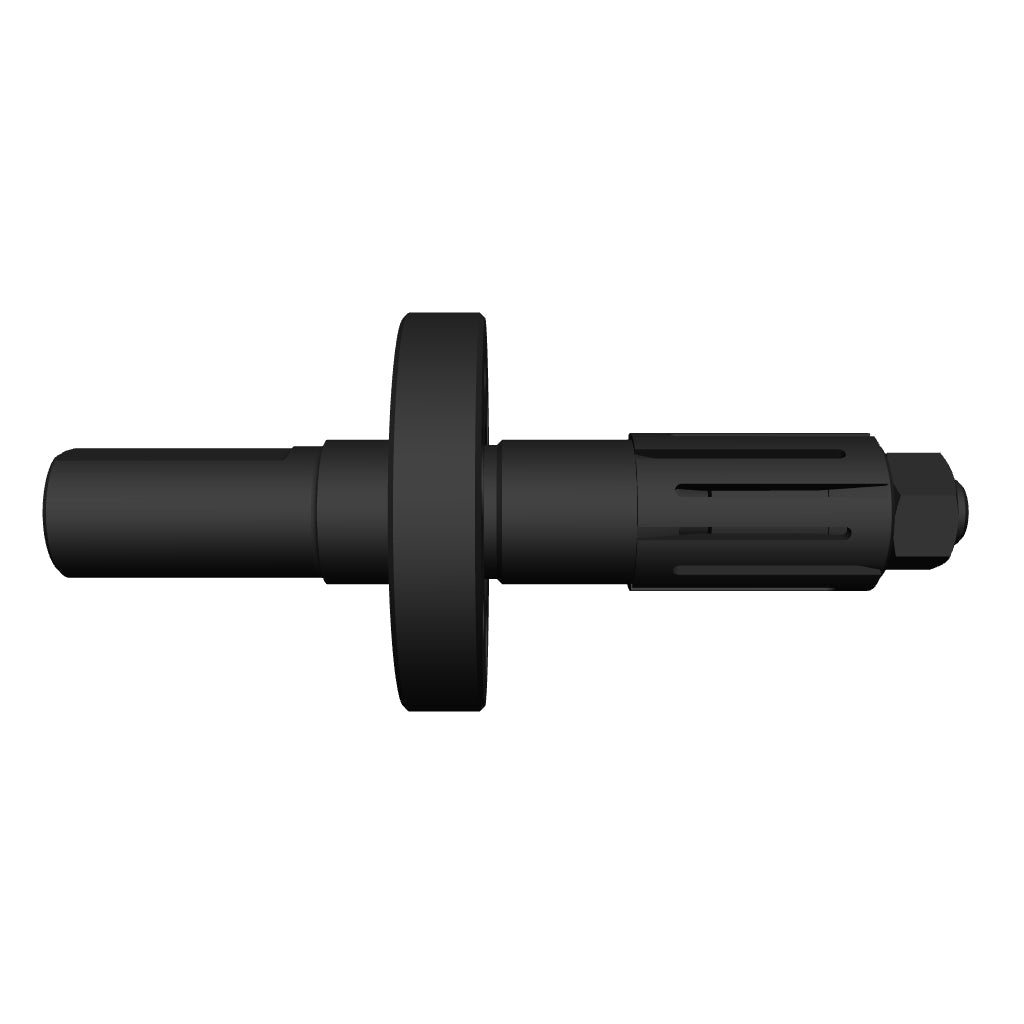

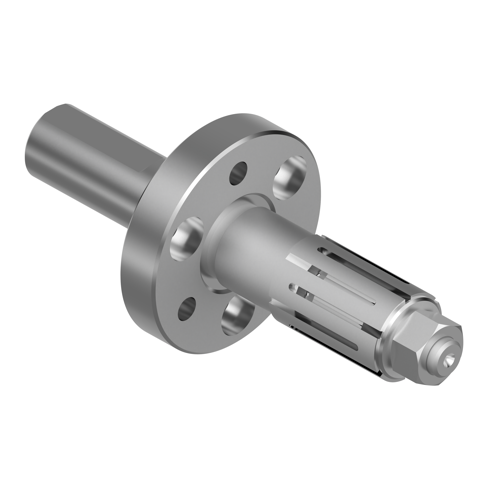

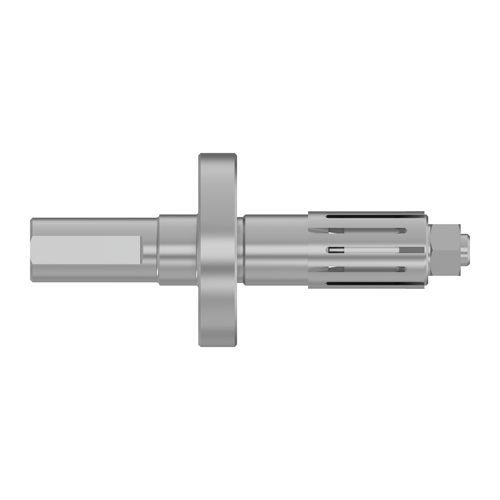

Standard Double Taper Mandrel – Long Series. Model DTML-1. Customer piece part grip diameter 0.75–1.5 in.
Dimensions
- A Grip diameter
- Min 0.75 – Max 1.5 in
- B Length
- 1.125 in
- C
- 0.6875 in
- D
- 0.686 in
- E
- 0.375 in
- F Flange diameter
- 1.875 in
- G
- 0.688 in
- H
- 0.375 in
- J
- .313-24 in
- K
- 1.25 in
- L
- 0.656 in
- M
- (3) .250-20 in
- N
- (3) #10-24 in
- P
- 0.577 in
- Q
- 0.5 in
- R
- 4.25 in
- S
- 0.625 in
- T
- 0.272 in
- U
- 0.439 in
- V
- 0.313 in
Standard Double Taper Mandrel – Long Series. Model DTML-1. Customer piece part grip diameter 0.75–1.5 in.
