Dimensions
- A Grip diameter
- Min 0.5 – Max 1 in
- B Length
- 0.875 in
- C
- 0.4375 in
- D
- 0.498 in
- E
- 0.375 in
- F Flange diameter
- 1.625 in
- G
- 0.438 in
- H
- 0.375 in
- J
- .250-28 in
- K
- 1 in
- L
- 0.531 in
- M
- (3) .250-20 in
- N
- (3) #10-24 in
- P
- 0.433 in
- Q
- 0.375 in
- R
- 3.938 in
- S
- 0.375 in
- T
- 0.207 in
- U
- 0.814 in
- V
- 0.313 in

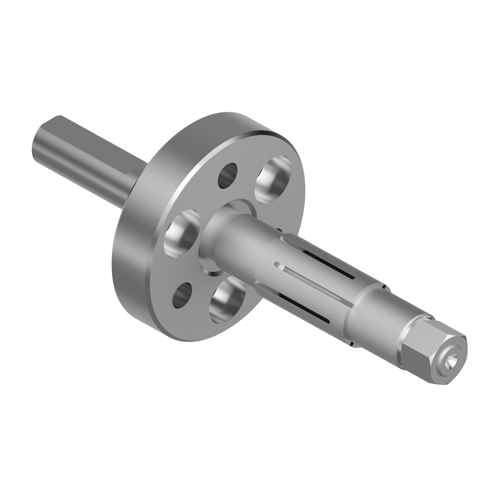

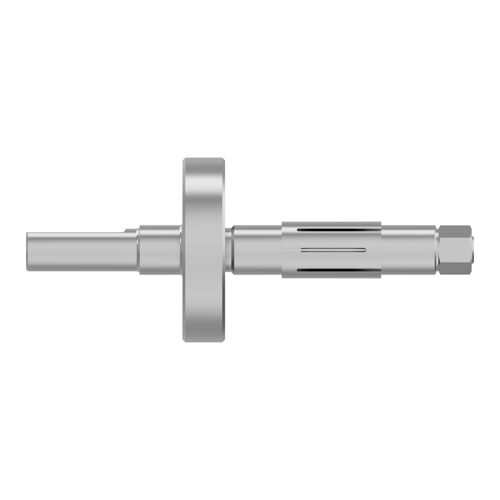

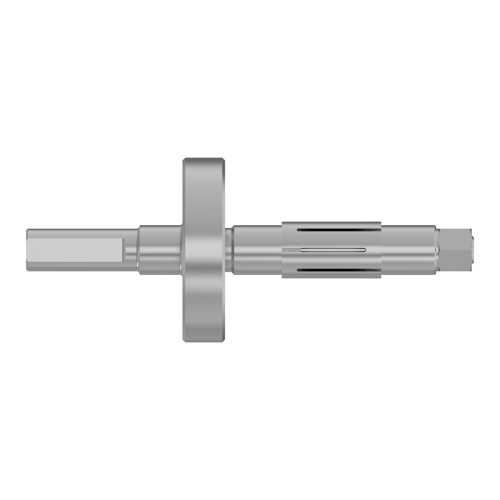

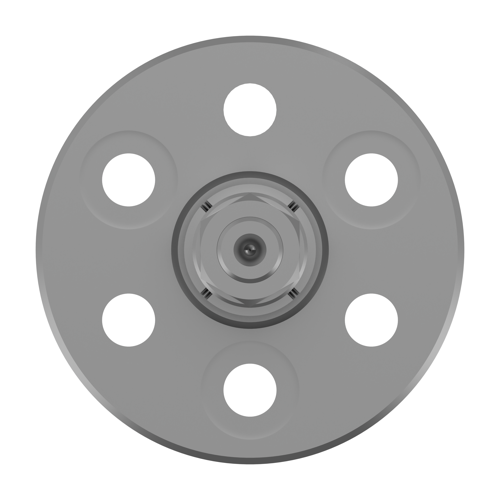

Standard Double Taper Mandrel – Long Series. Model DTML-0. Customer piece part grip diameter 0.5–1 in.
Dimensions
- A Grip diameter
- Min 0.5 – Max 1 in
- B Length
- 0.875 in
- C
- 0.4375 in
- D
- 0.498 in
- E
- 0.375 in
- F Flange diameter
- 1.625 in
- G
- 0.438 in
- H
- 0.375 in
- J
- .250-28 in
- K
- 1 in
- L
- 0.531 in
- M
- (3) .250-20 in
- N
- (3) #10-24 in
- P
- 0.433 in
- Q
- 0.375 in
- R
- 3.938 in
- S
- 0.375 in
- T
- 0.207 in
- U
- 0.814 in
- V
- 0.313 in
Standard Double Taper Mandrel – Long Series. Model DTML-0. Customer piece part grip diameter 0.5–1 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,187.00
