Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 4.5 in
- C
- 8 in
- D
- 1.122 in
- E
- 1 in
- F Flange diameter
- 11 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.629 in
- K
- 4.875 in
- L
- 2.5 in
- M
- 0.124 in
- N
- 8.875 in
- P
- 8 in
- Q
- 1.25 in
- R
- 1.892 in
- S
- 0.875 in
- T
- 7.093 in
- U
- 2.25 in
- V
- 2.375 in

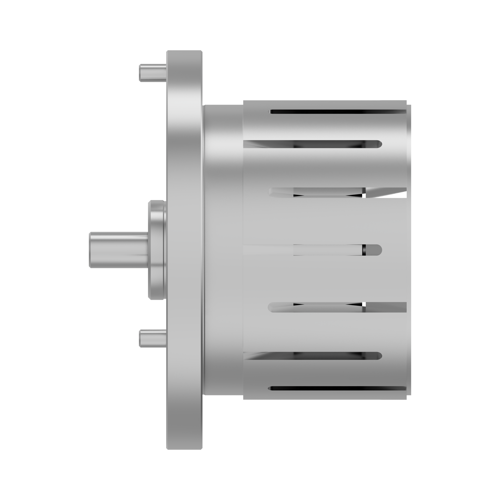

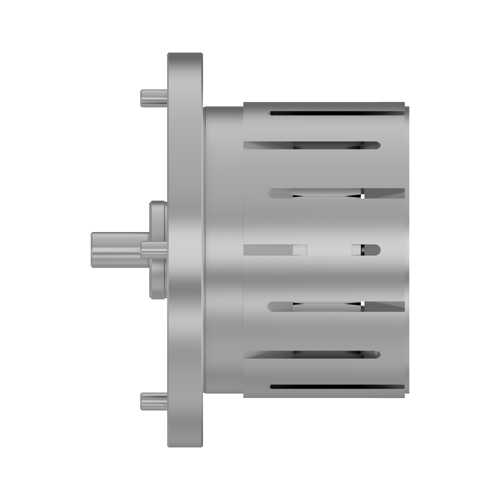

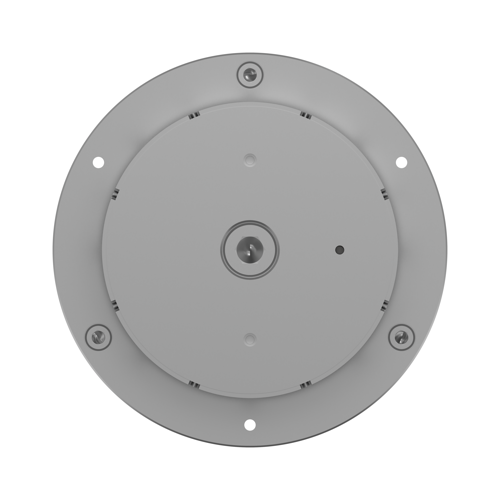

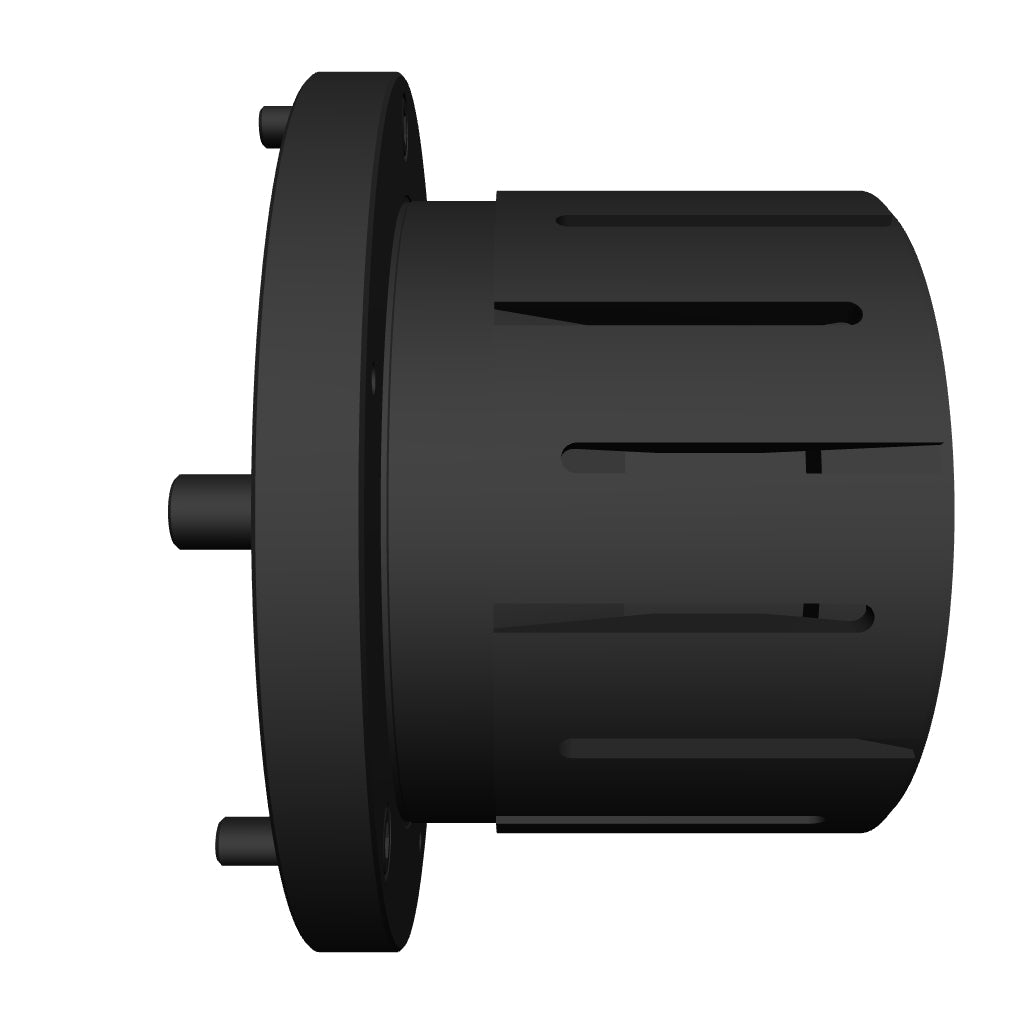

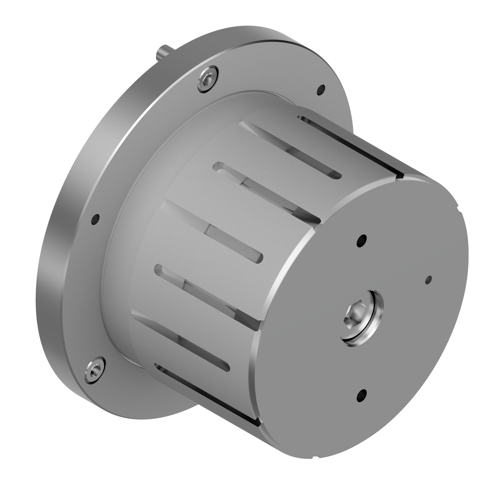

Standard Double Taper Locator Chuck – Short Series. Model DTLS-8-DB. Customer piece part grip diameter 8.25–17 in.
Dimensions
- A Grip diameter
- Min 8.25 – Max 17 in
- B Length
- 4.5 in
- C
- 8 in
- D
- 1.122 in
- E
- 1 in
- F Flange diameter
- 11 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.629 in
- K
- 4.875 in
- L
- 2.5 in
- M
- 0.124 in
- N
- 8.875 in
- P
- 8 in
- Q
- 1.25 in
- R
- 1.892 in
- S
- 0.875 in
- T
- 7.093 in
- U
- 2.25 in
- V
- 2.375 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-8-DB. Customer piece part grip diameter 8.25–17 in.
