Dimensions
- A Grip diameter
- Min 4.75 – Max 11 in
- B Length
- 3.5 in
- C
- 4.5 in
- D
- 1.127 in
- E
- 1 in
- F Flange diameter
- 7.5 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.624 in
- K
- 3.125 in
- L
- 2 in
- M
- 0.124 in
- N
- 7.875 in
- P
- 4.5 in
- Q
- 1 in
- R
- 1.528 in
- S
- 0.8125 in
- T
- 3.875 in
- U
- 2 in
- V
- 1.875 in

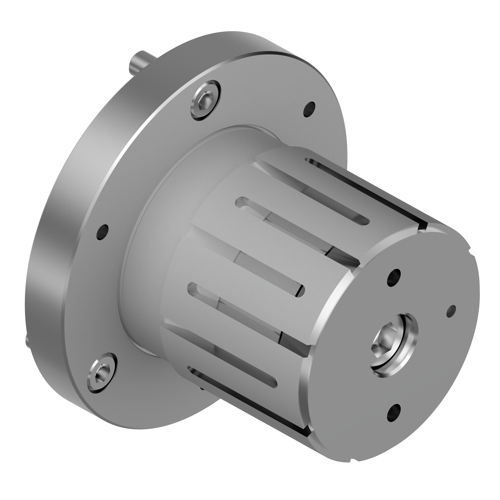

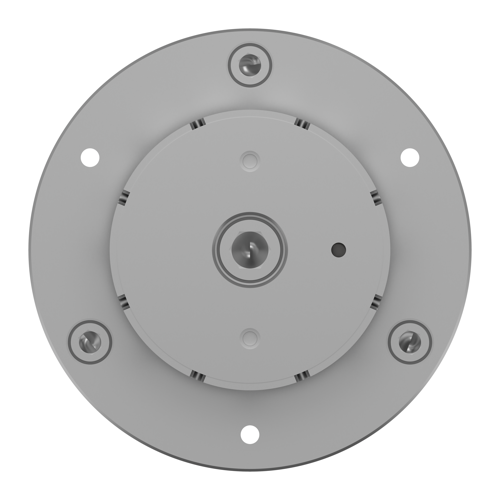

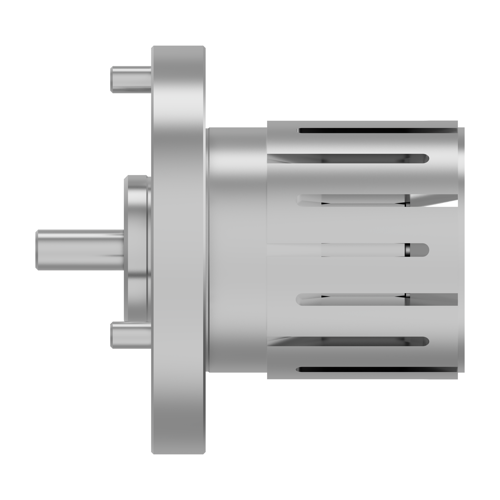

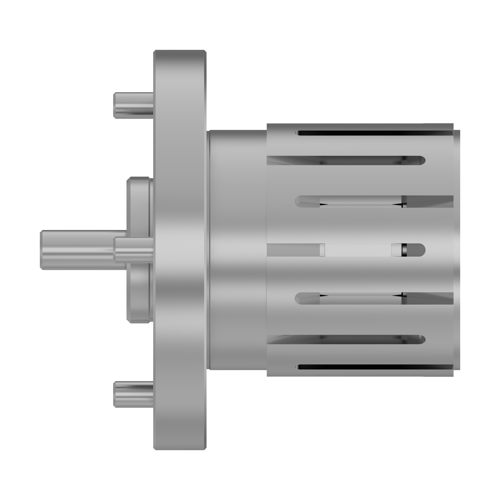

Standard Double Taper Locator Chuck – Short Series. Model DTLS-5-DB. Customer piece part grip diameter 4.75–11 in.
Dimensions
- A Grip diameter
- Min 4.75 – Max 11 in
- B Length
- 3.5 in
- C
- 4.5 in
- D
- 1.127 in
- E
- 1 in
- F Flange diameter
- 7.5 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.624 in
- K
- 3.125 in
- L
- 2 in
- M
- 0.124 in
- N
- 7.875 in
- P
- 4.5 in
- Q
- 1 in
- R
- 1.528 in
- S
- 0.8125 in
- T
- 3.875 in
- U
- 2 in
- V
- 1.875 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-5-DB. Customer piece part grip diameter 4.75–11 in.
