Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 2.5 in
- C
- 2.75 in
- D
- 1.117 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- 1.884 in
- K
- 1.875 in
- L
- 2 in
- M
- 0.124 in
- N
- 6.875 in
- P
- 2.75 in
- Q
- 0.75 in
- R
- 1.101 in
- S
- 0.5625 in
- T
- 2.234 in
- U
- 0.75 in
- V
- 1.875 in

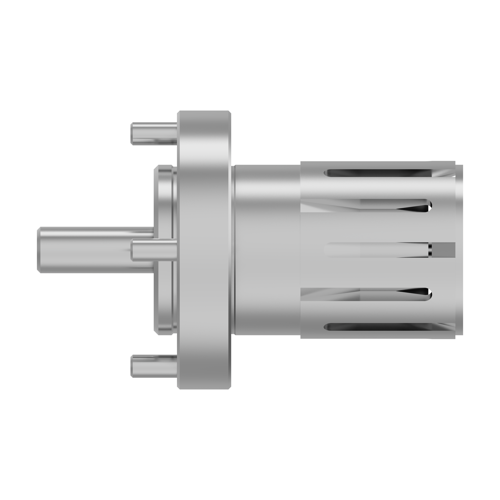

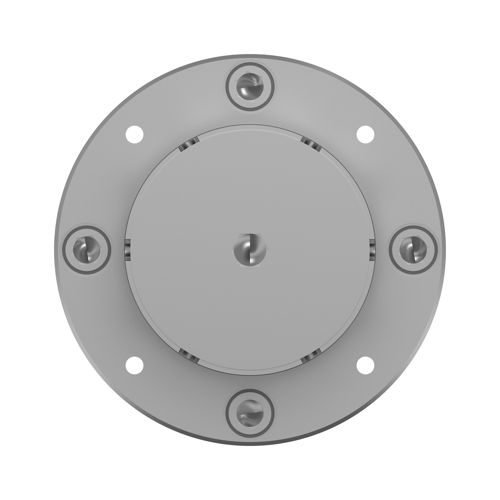

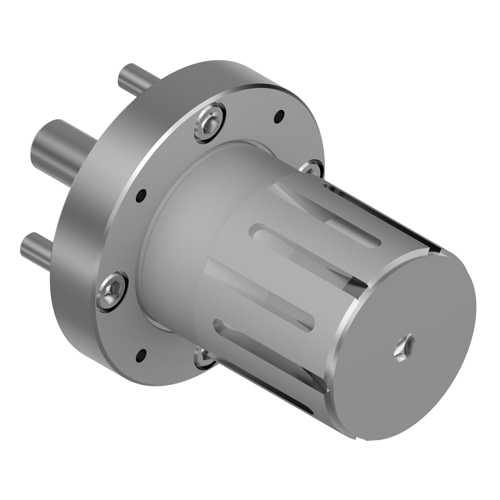

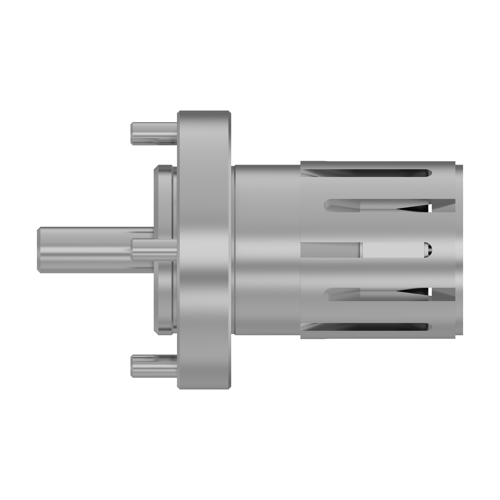

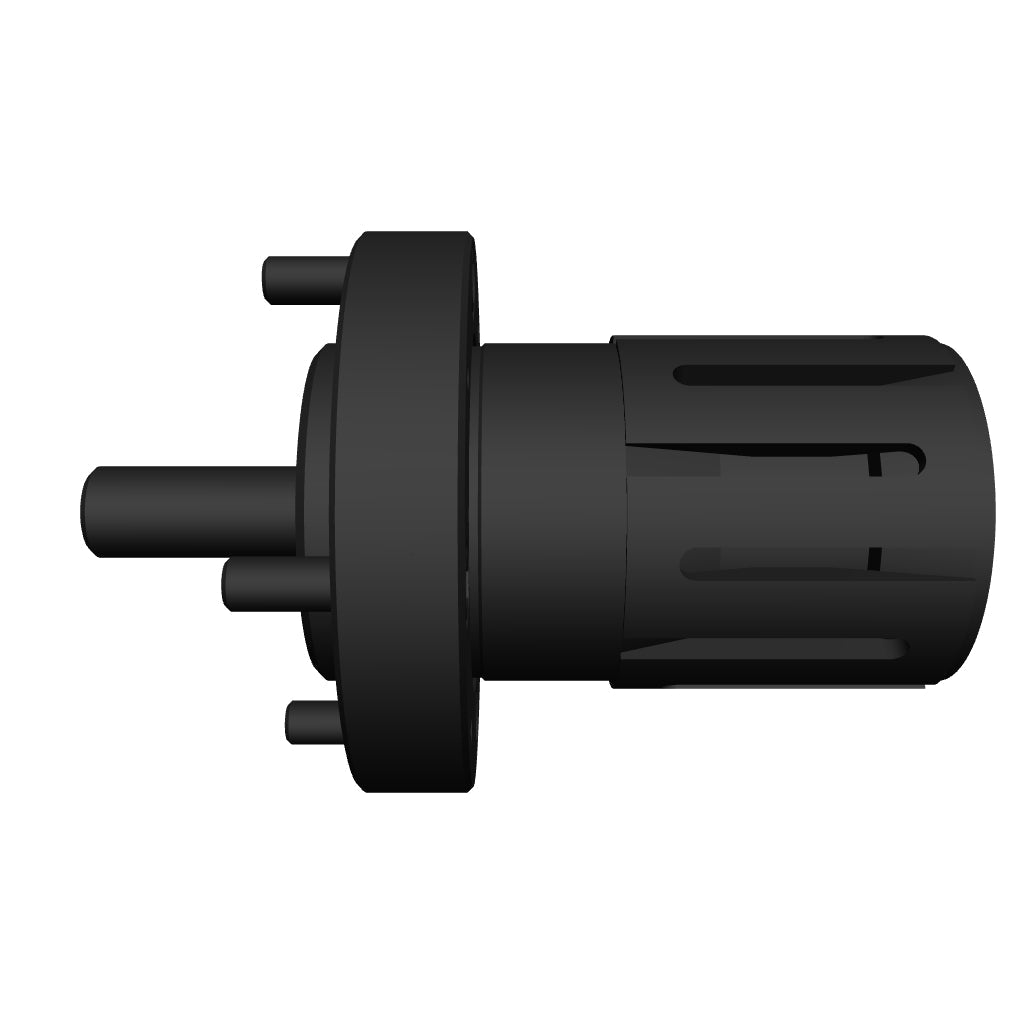

Standard Double Taper Locator Chuck – Short Series. Model DTLS-4-DB. Customer piece part grip diameter 2.875–7 in.
Dimensions
- A Grip diameter
- Min 2.875 – Max 7 in
- B Length
- 2.5 in
- C
- 2.75 in
- D
- 1.117 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- 1.884 in
- K
- 1.875 in
- L
- 2 in
- M
- 0.124 in
- N
- 6.875 in
- P
- 2.75 in
- Q
- 0.75 in
- R
- 1.101 in
- S
- 0.5625 in
- T
- 2.234 in
- U
- 0.75 in
- V
- 1.875 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-4-DB. Customer piece part grip diameter 2.875–7 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,889.00
