Dimensions
- A Grip diameter
- Min 4 – Max 10 in
- B Length
- 3 in
- C
- 3.75 in
- D
- 1.117 in
- E
- 1 in
- F Flange diameter
- 7.5 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.642 in
- K
- 3.125 in
- L
- 2 in
- M
- 0.117 in
- N
- 7.375 in
- P
- 3.75 in
- Q
- 0.875 in
- R
- 1.3125 in
- S
- 0.6875 in
- T
- 3.203 in
- U
- 1.75 in
- V
- 1.875 in

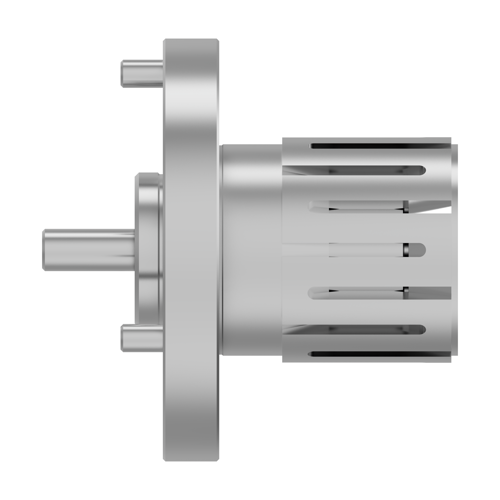

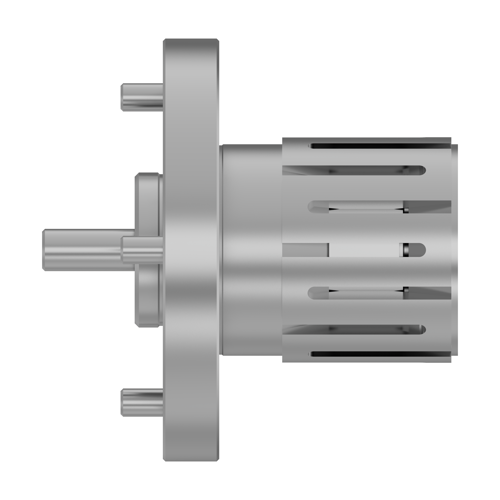

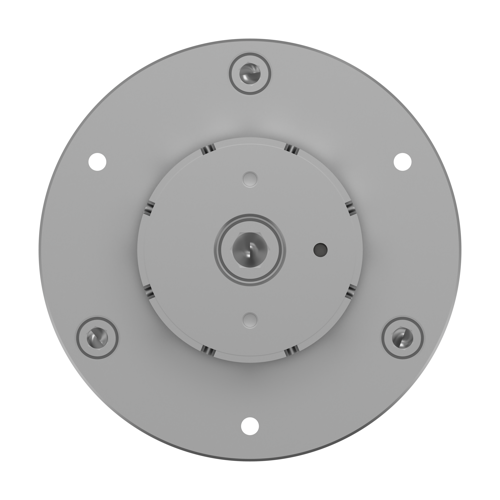

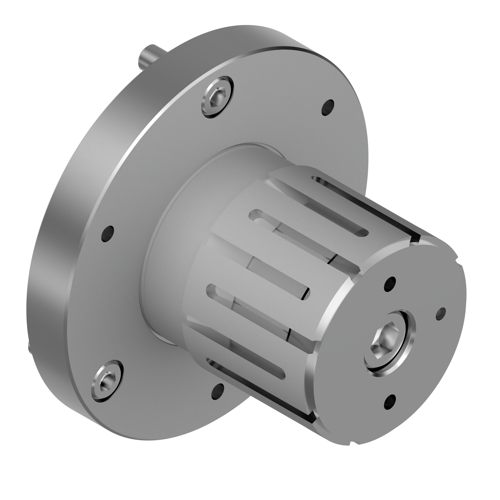

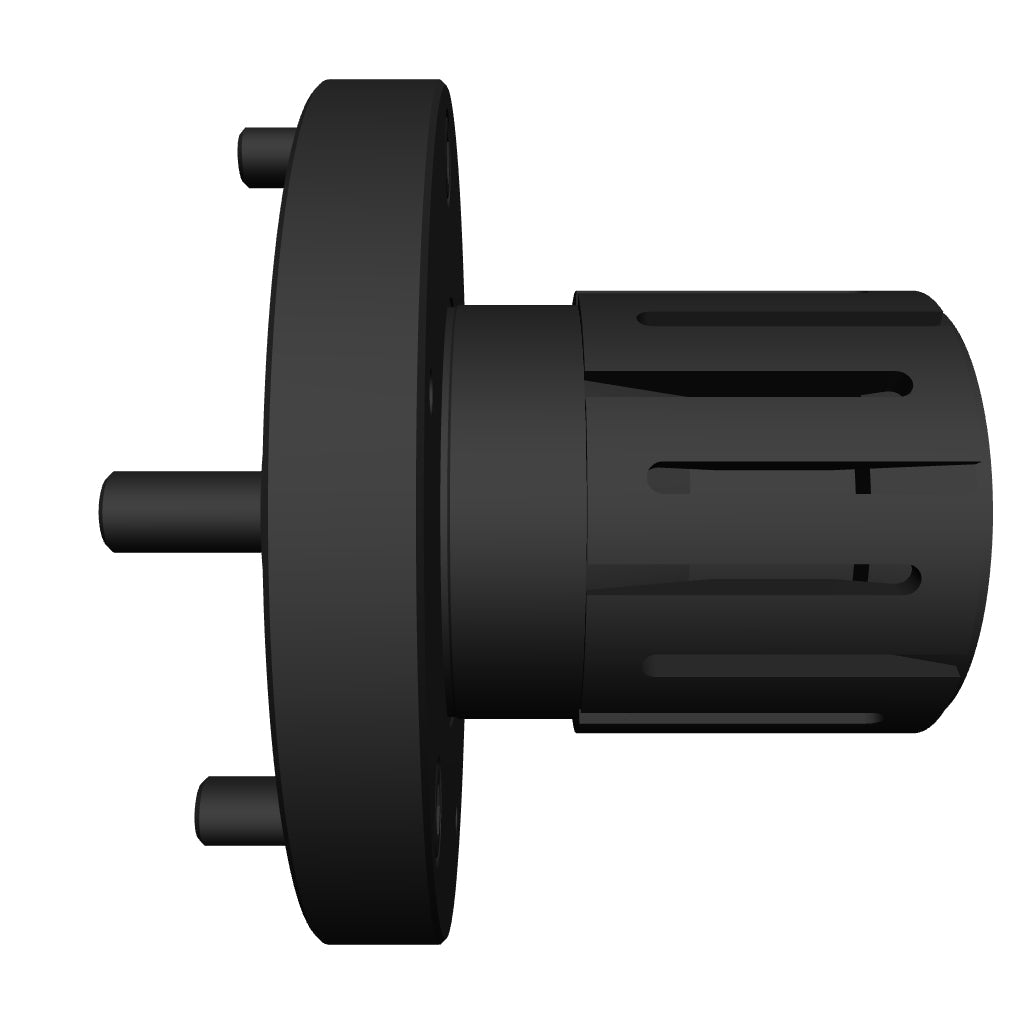

Standard Double Taper Locator Chuck – Short Series. Model DTLS-4.5-DB. Customer piece part grip diameter 4–10 in.
Dimensions
- A Grip diameter
- Min 4 – Max 10 in
- B Length
- 3 in
- C
- 3.75 in
- D
- 1.117 in
- E
- 1 in
- F Flange diameter
- 7.5 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 1.642 in
- K
- 3.125 in
- L
- 2 in
- M
- 0.117 in
- N
- 7.375 in
- P
- 3.75 in
- Q
- 0.875 in
- R
- 1.3125 in
- S
- 0.6875 in
- T
- 3.203 in
- U
- 1.75 in
- V
- 1.875 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-4.5-DB. Customer piece part grip diameter 4–10 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $2,397.00
