Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.625 in
- C
- 1.5 in
- D
- 1.128 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- 1.372 in
- K
- 1.875 in
- L
- 1.375 in
- M
- 0.125 in
- N
- 5.5 in
- P
- 1.5 in
- Q
- 0.531 in
- R
- 0.716 in
- S
- 0.375 in
- T
- 1.219 in
- U
- 0.625 in
- V
- 1.25 in

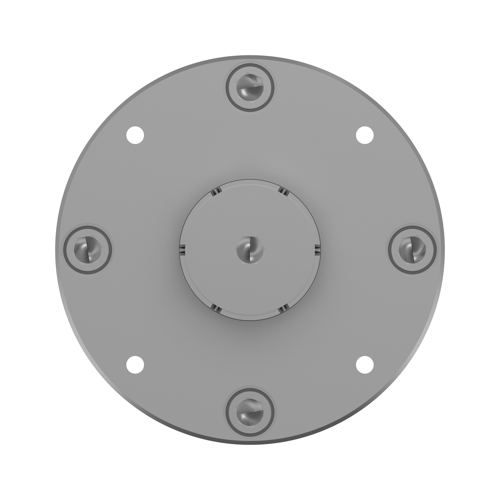

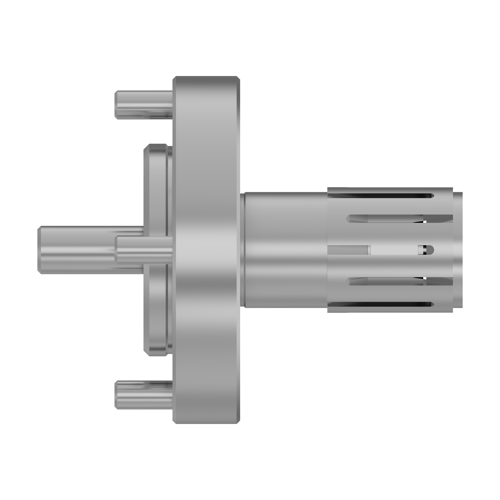

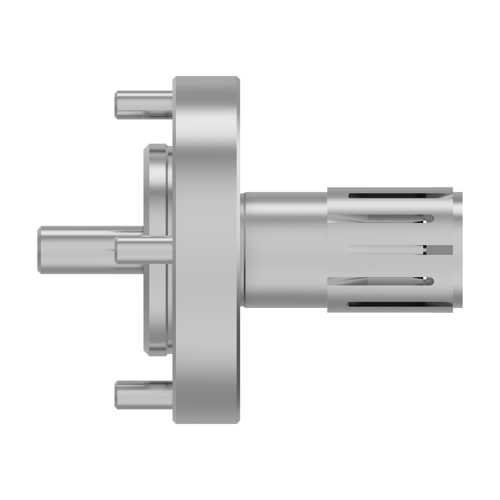

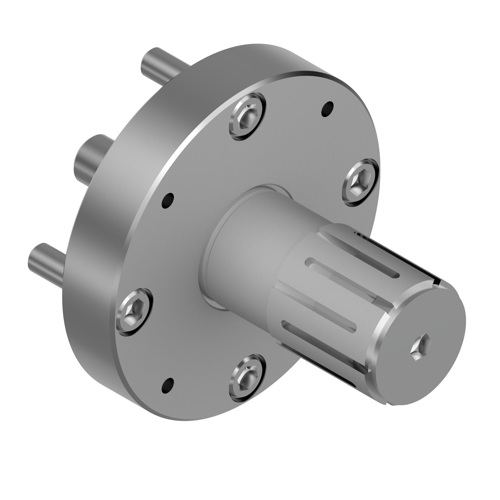

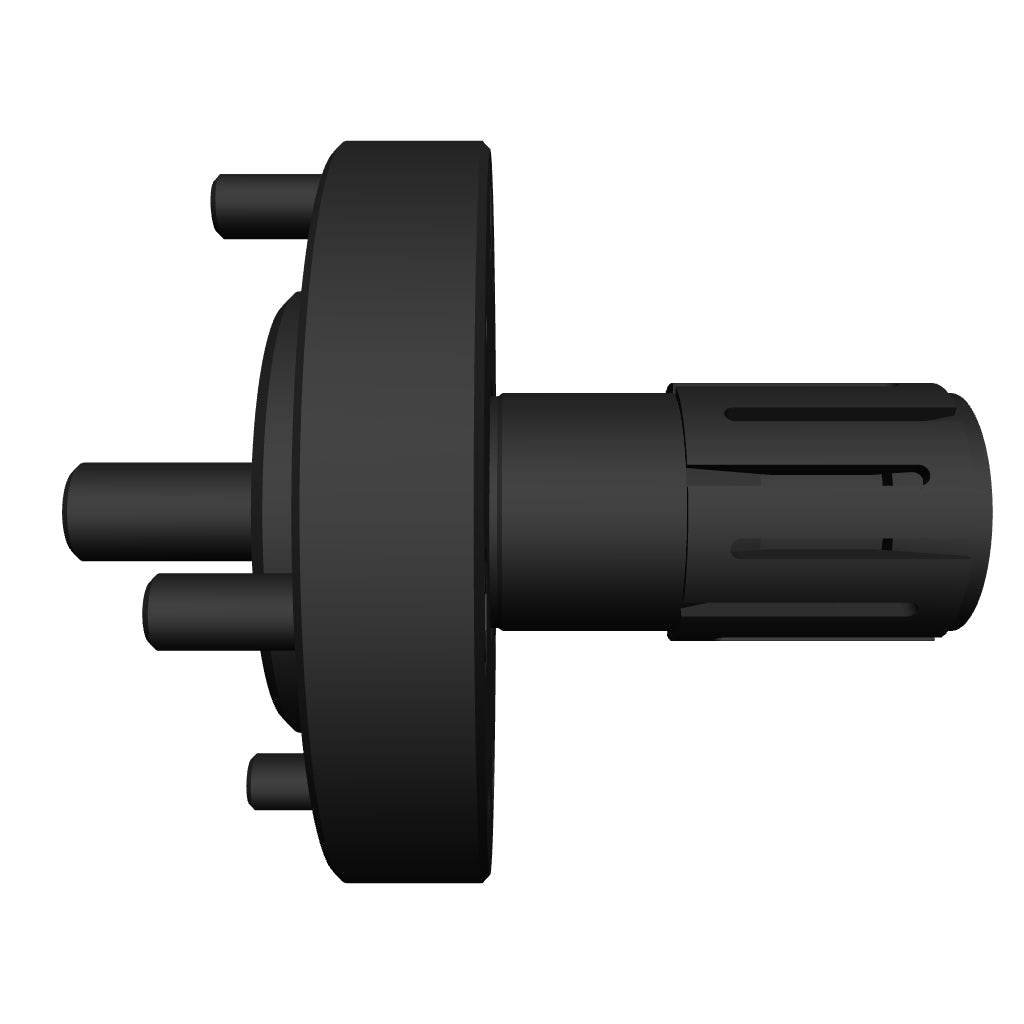

Standard Double Taper Locator Chuck – Short Series. Model DTLS-3-DB. Customer piece part grip diameter 1.625–4.25 in.
Dimensions
- A Grip diameter
- Min 1.625 – Max 4.25 in
- B Length
- 1.625 in
- C
- 1.5 in
- D
- 1.128 in
- E
- 0.875 in
- F Flange diameter
- 4.5 in
- G
- 2.75 in
- H
- 0.375 in
- J
- 1.372 in
- K
- 1.875 in
- L
- 1.375 in
- M
- 0.125 in
- N
- 5.5 in
- P
- 1.5 in
- Q
- 0.531 in
- R
- 0.716 in
- S
- 0.375 in
- T
- 1.219 in
- U
- 0.625 in
- V
- 1.25 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-3-DB. Customer piece part grip diameter 1.625–4.25 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,701.00
