Dimensions
- A Grip diameter
- Min 0.5 – Max 1 in
- B Length
- 0.625 in
- C
- 0.4375 in
- D
- 0.497 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 0.874 in
- K
- 1.125 in
- L
- 0.75 in
- M
- 0.123 in
- N
- 3 in
- P
- 0.438 in
- Q
- 0.281 in
- R
- 0.265 in
- T
- 0.312 in
- U
- 0.188 in
- V
- 1.25 in

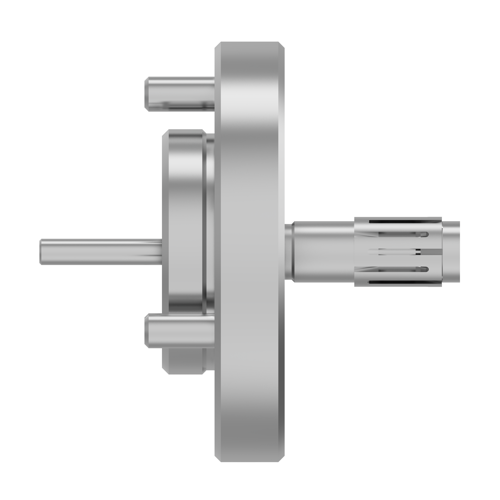

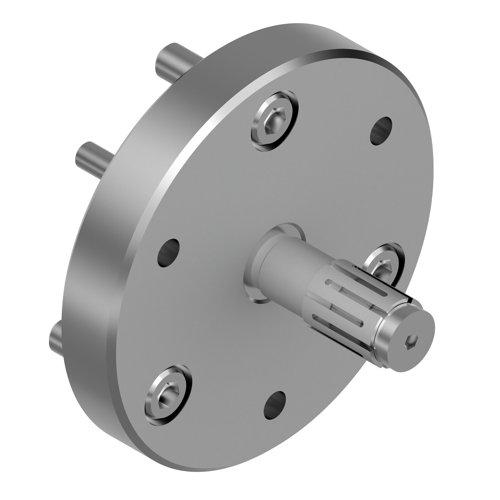

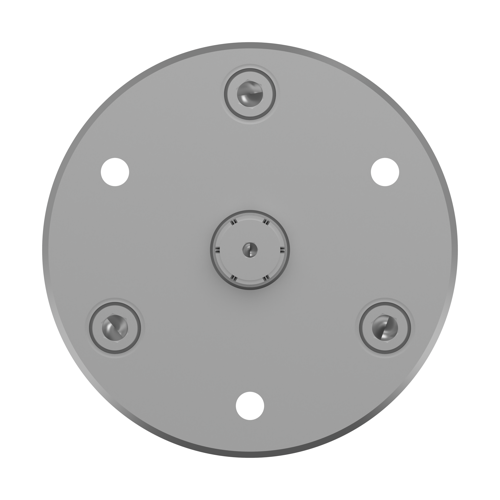

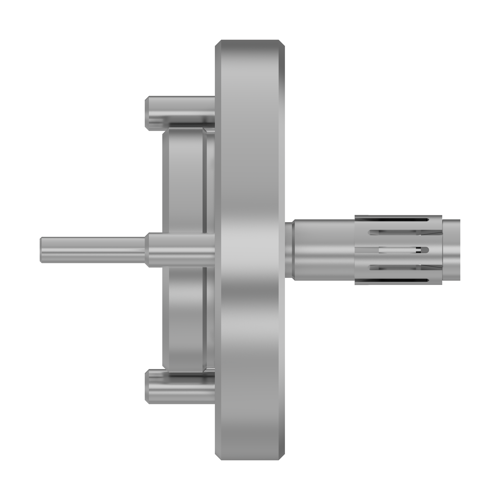

Standard Double Taper Locator Chuck – Short Series. Model DTLS-0-DB. Customer piece part grip diameter 0.5–1 in.
Dimensions
- A Grip diameter
- Min 0.5 – Max 1 in
- B Length
- 0.625 in
- C
- 0.4375 in
- D
- 0.497 in
- E
- 0.5 in
- F Flange diameter
- 3 in
- G
- 1.75 in
- H
- 0.375 in
- J
- 0.874 in
- K
- 1.125 in
- L
- 0.75 in
- M
- 0.123 in
- N
- 3 in
- P
- 0.438 in
- Q
- 0.281 in
- R
- 0.265 in
- T
- 0.312 in
- U
- 0.188 in
- V
- 1.25 in
Standard Double Taper Locator Chuck – Short Series. Model DTLS-0-DB. Customer piece part grip diameter 0.5–1 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $1,536.00
