Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4.5 in
- C
- 6 in
- D
- 0.629 in
- E
- 1 in
- F Flange diameter
- 9 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 2.122 in
- K
- 3.875 in
- L
- 2.5 in
- M
- 0.124 in
- N
- 8.875 in
- P
- 6 in
- R
- 2.214 in
- S
- 0.875 in
- T
- 5.219 in
- U
- 2.25 in
- V
- 2.375 in

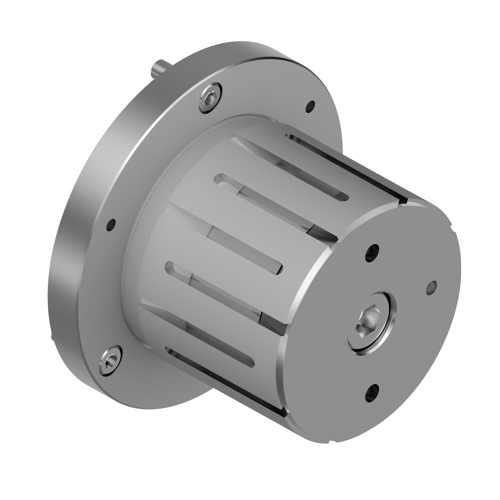

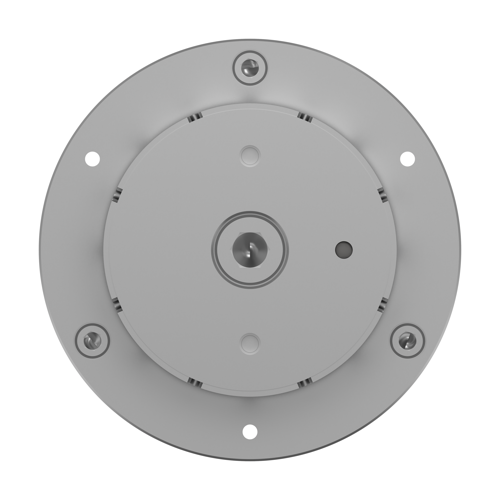

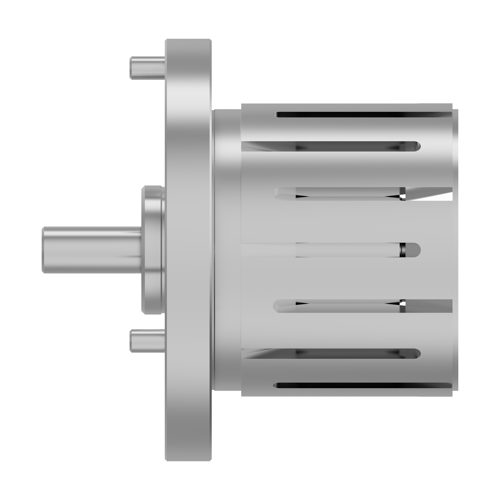

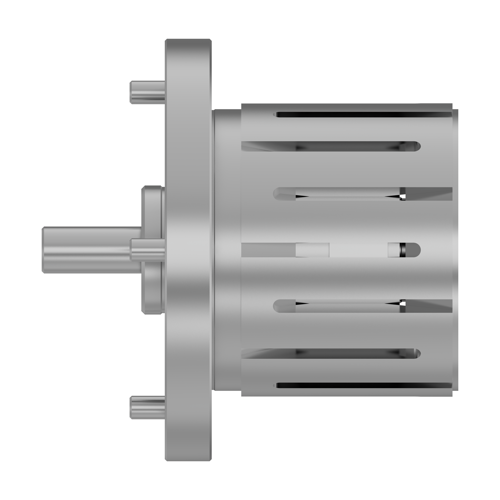

Standard Double Taper Locator Chuck – Long Series. Model DTLL-6-DB. Customer piece part grip diameter 6.25–13 in.
Dimensions
- A Grip diameter
- Min 6.25 – Max 13 in
- B Length
- 4.5 in
- C
- 6 in
- D
- 0.629 in
- E
- 1 in
- F Flange diameter
- 9 in
- G
- 2.75 in
- H
- 0.5 in
- J
- 2.122 in
- K
- 3.875 in
- L
- 2.5 in
- M
- 0.124 in
- N
- 8.875 in
- P
- 6 in
- R
- 2.214 in
- S
- 0.875 in
- T
- 5.219 in
- U
- 2.25 in
- V
- 2.375 in
Standard Double Taper Locator Chuck – Long Series. Model DTLL-6-DB. Customer piece part grip diameter 6.25–13 in.
Documentation
Documentation
Download 3D Files
Download 3D Files
- Regular price
- $2,963.00
